Description

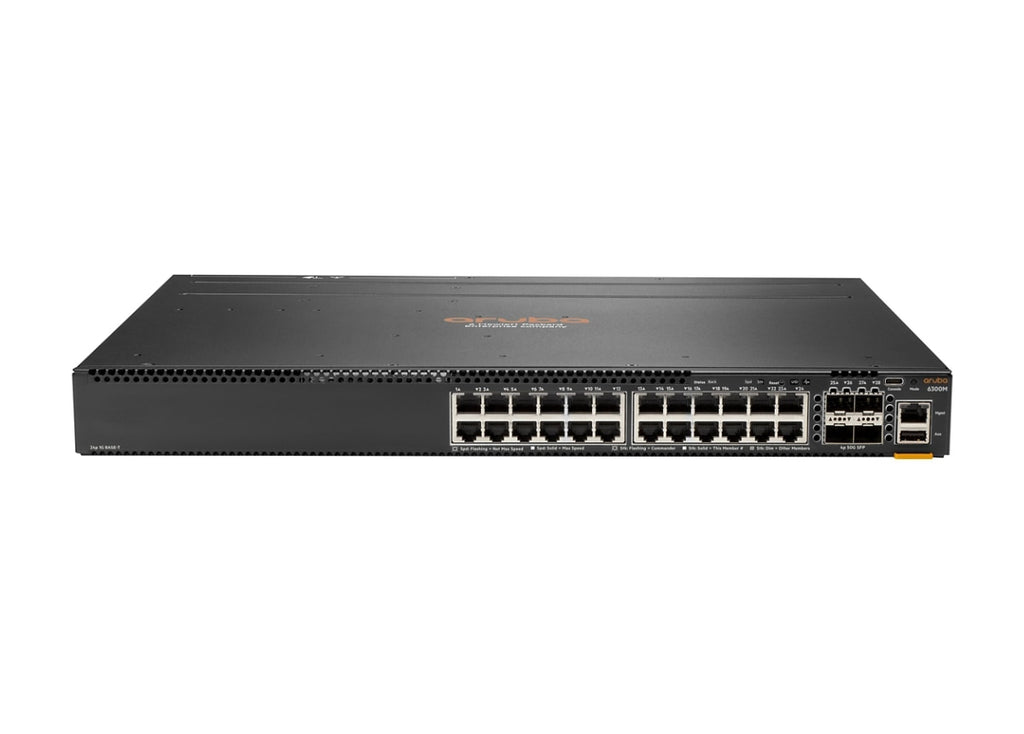

The HPE Aruba Networking 6300F (JL668A#ABA) is a next-generation, Layer 3 stackable managed switch designed for campus access and top-of-rack data center deployments. With 24 high-performance Gigabit PoE+ ports and 4 multi-speed SFP56 uplink/stacking ports, it supports bandwidths up to 50Gbps per port. Built on Aruba’s AOS-CX operating system and powered by a 1.78 GHz ARM Cortex-A72 processor, it offers unmatched flexibility, monitoring, and programmability. Featuring robust Layer 3 capabilities, high-density PoE, and advanced security and automation features, the 6300F is perfect for enterprise IoT and mobile device environments.
| Category | Specification |
|---|---|
| Brand | Aruba |
| Model | 6300F |
| Part Number | JL668A#ABA |
| Form Factor | Rack-mountable (1U) |
| Switch Type | Managed, Layer 3 |
| Ports | 24 x 10/100/1000Base-T PoE+, 4 x 1G/10G/25G/50G SFP56 uplink/stacking |
| Processor | 1.78 GHz ARM Cortex-A72 |
| Memory | 8 GB RAM, 32 GB Flash (DDR4 SDRAM) |
| Stackable | Yes, up to 10 switches via VSF |
| Switching Capacity | 448 Gbps |
| Throughput | 334 Mpps |
| PoE Support | IEEE 802.3bt (High Power PoE) |
| MAC Address Table | 32,000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocols | BGP, OSPF, VRRP, IGMP, MLD, Static, ECMP, BFD |
| Remote Management | CLI, SSH, Telnet, SNMP, HTTPS, SFTP |
| Advanced Features | Aruba VSF, QoS, VLAN, ACL, VXLAN, ZTP, High Availability, Jumbo Frames, IGMP snooping |
| Airflow | Front and side to back |
| Operating Temp | 32°F to 113°F (0°C to 45°C) |
| Dimensions (WxDxH) | 17.4 x 15.2 x 1.7 inches |
| Weight | 11.97 lbs |
| Certifications | FCC, UL, RoHS, WEEE, VCCI, CE, EN, IEC standards |
| Warranty | Limited Lifetime Warranty |
