Description

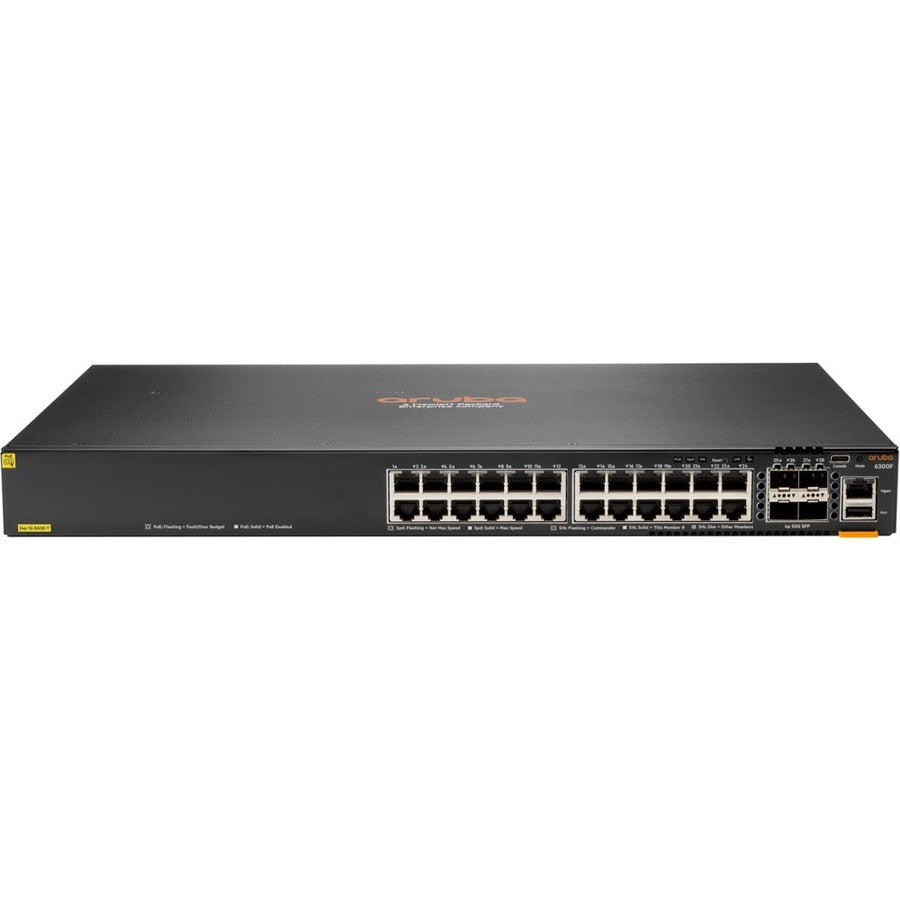

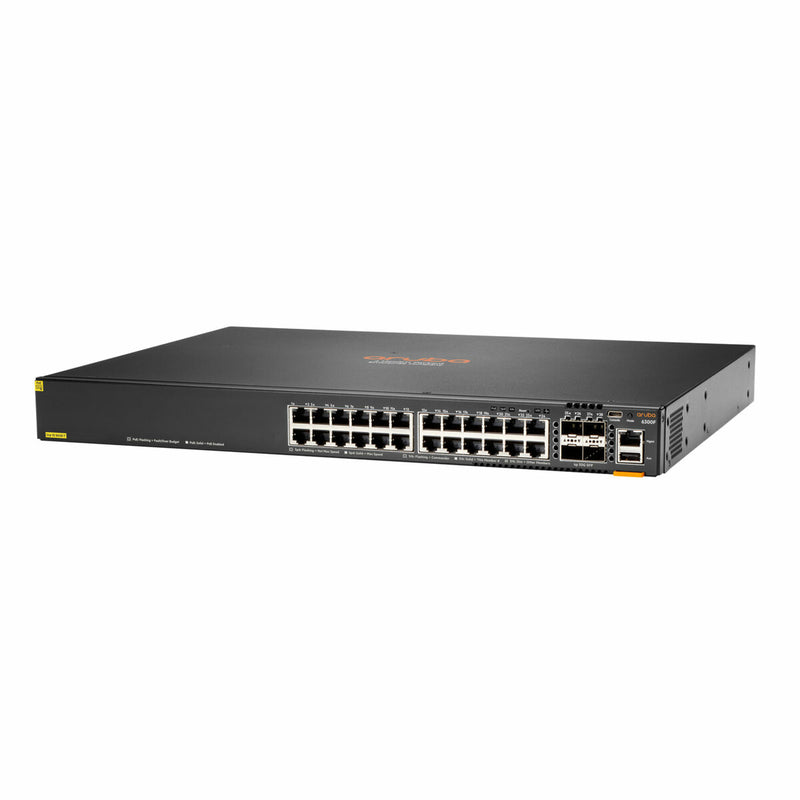

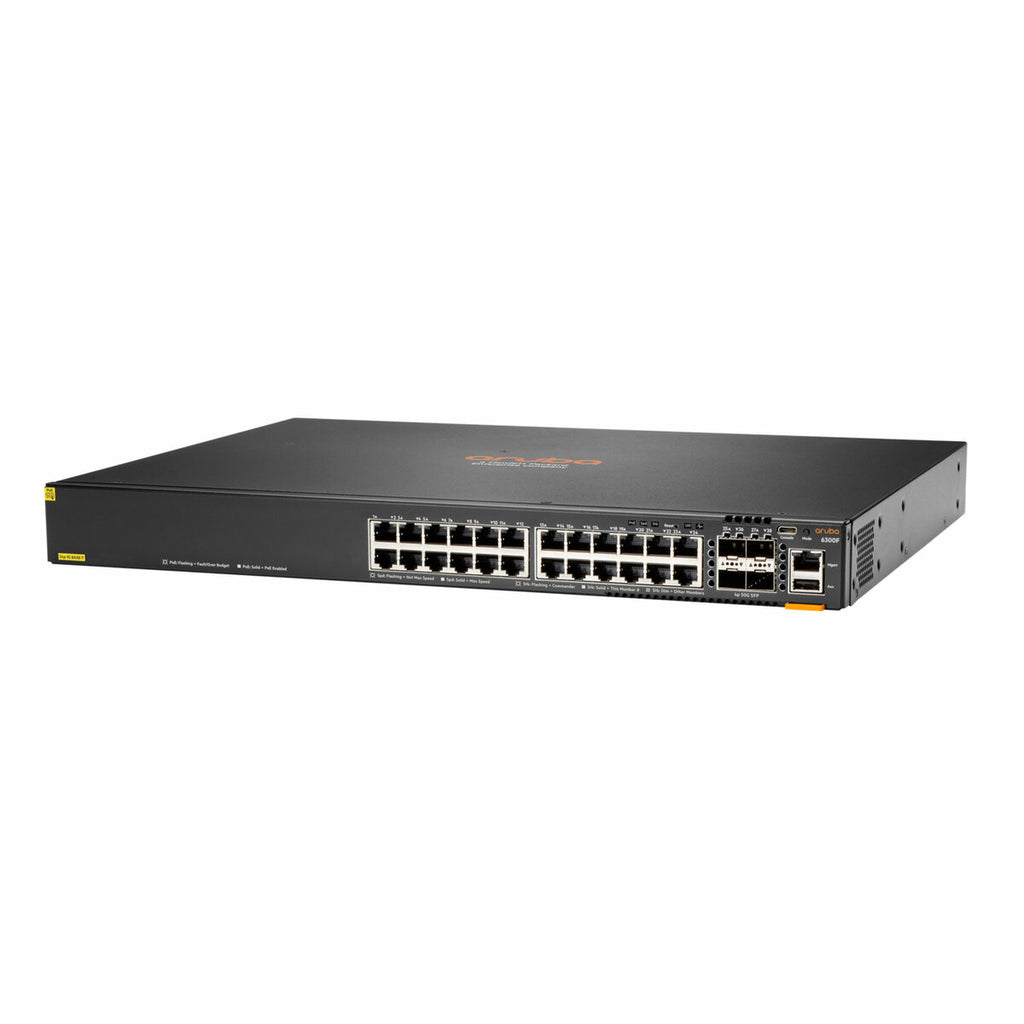

The HPE Aruba Networking CX 6300F (JL666A#ACC) is a modern, stackable Layer 3 managed switch designed for enterprise access and aggregation. With 24 Class 4 PoE+ Gigabit Ethernet ports and 4 ultra-fast 50GbE SFP56 uplinks, it enables high-performance wired networking ideal for mobile-first and IoT-driven environments.
Built on Aruba’s cloud-native AOS-CX operating system and featuring a fully programmable architecture, this switch offers advanced analytics, automation, and security. Virtual Stacking Framework (VSF) supports up to 10 switches, simplifying network management and scaling. Designed for power-efficient operation with front-to-back airflow and TAA compliance, it's the perfect fit for secure, high-density deployments.
| Specification | Details |
|---|---|
| Product SKU | JL666A#ACC |
| Port Configuration | 24x 10/100/1000Base-T (PoE+) + 4x SFP56 (1/10/25/50GbE) |
| PoE Support | IEEE 802.3af/at (Class 4), Max Power Budget: 370W |
| Layer Support | Layer 3 |
| Switching Capacity | 448 Gbps |
| Throughput | 334 Mpps |
| Latency | 1Gbps: 2.28μs, 10Gbps: 1.46μs, 25Gbps: 1.90μs, 50Gbps: 3.49μs |
| Stacking | Up to 10 switches, 50GbE VSF stacking |
| Management Interfaces | USB-C console, USB-A host, 1x OOBM port |
| Operating System | Aruba AOS-CX |
| Airflow Direction | Front-to-back |
| Memory | 8 GB DDR4 RAM, 32 GB eMMC |
| Power Supply Input | 100V–120V / 200V–240V AC (Fixed PSU) |
| Power Consumption | Idle: 52W, Max: 67W (excl. PoE load) |
| Mounting | Rack-mountable |
| Compliance | TAA Compliant |
| Use Case | Access, aggregation, data center ToR deployments |
| Management Software | Aruba Central, AirWave, Switch Multi-Edit Software, CLI, SNMP, RMON |
