Description

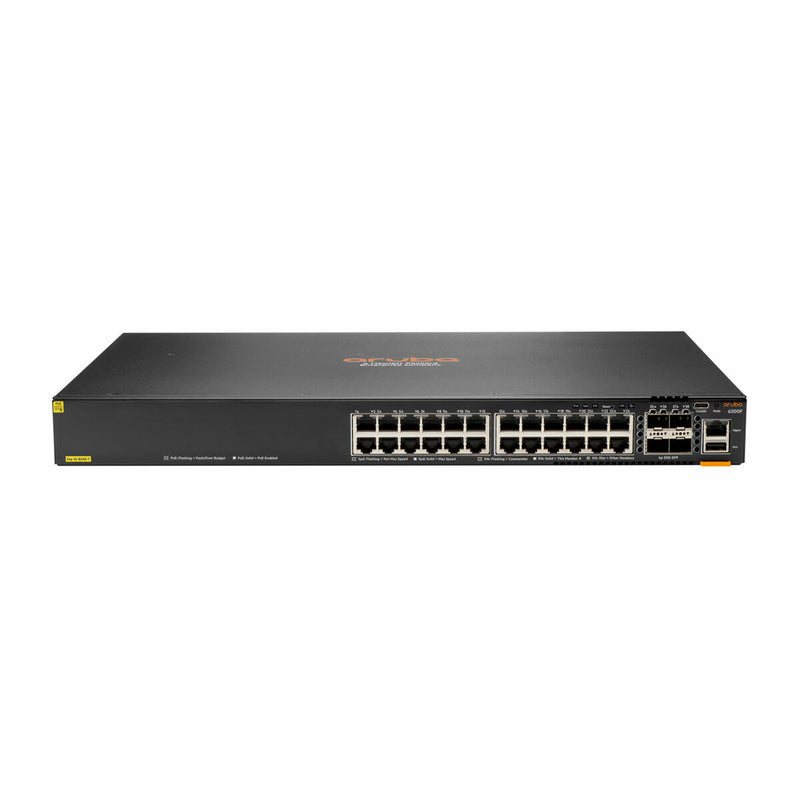

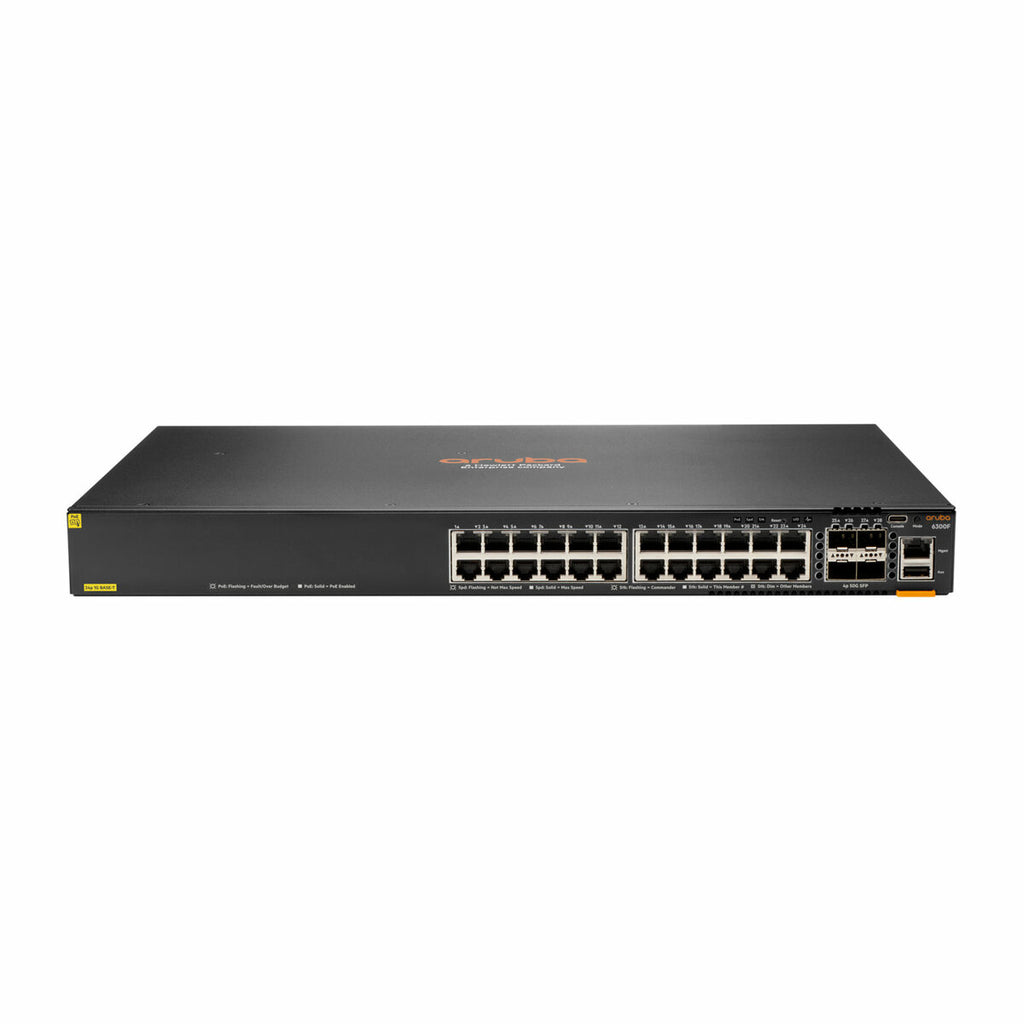

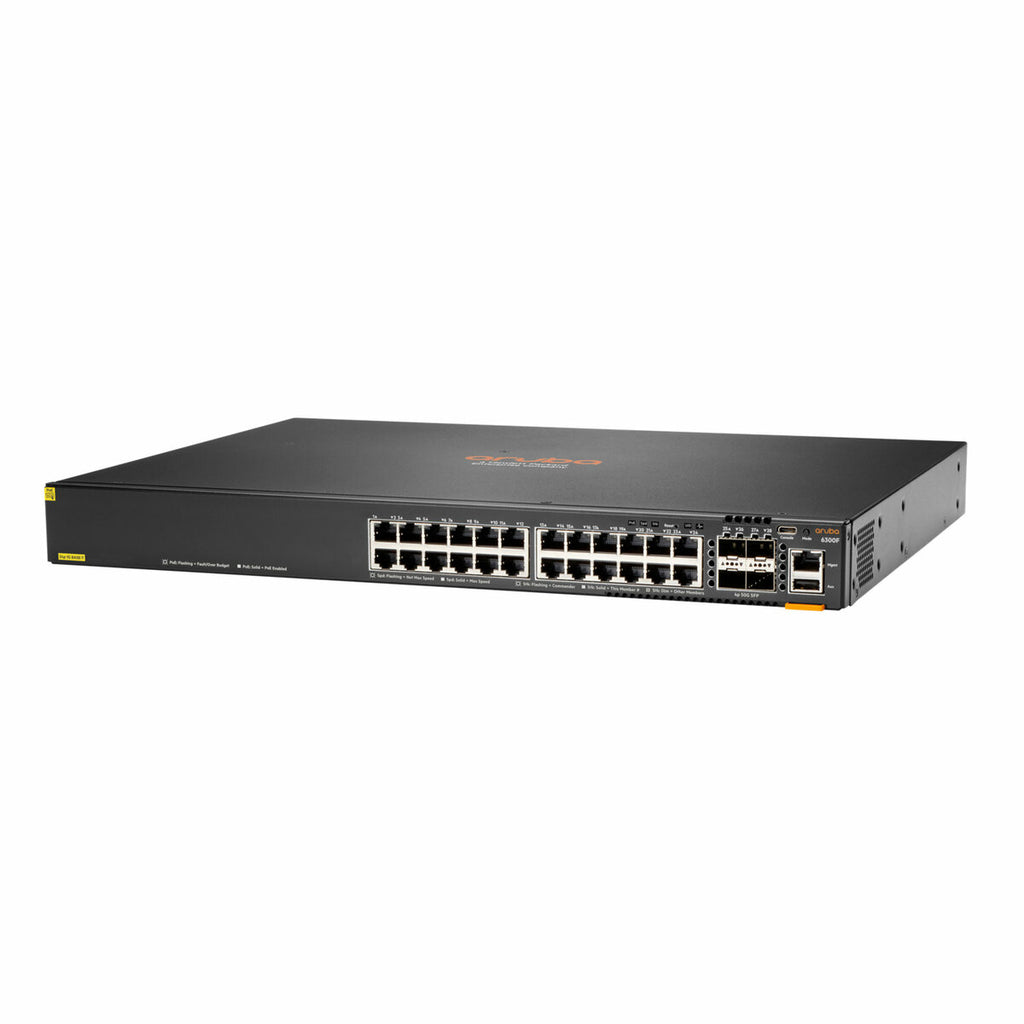

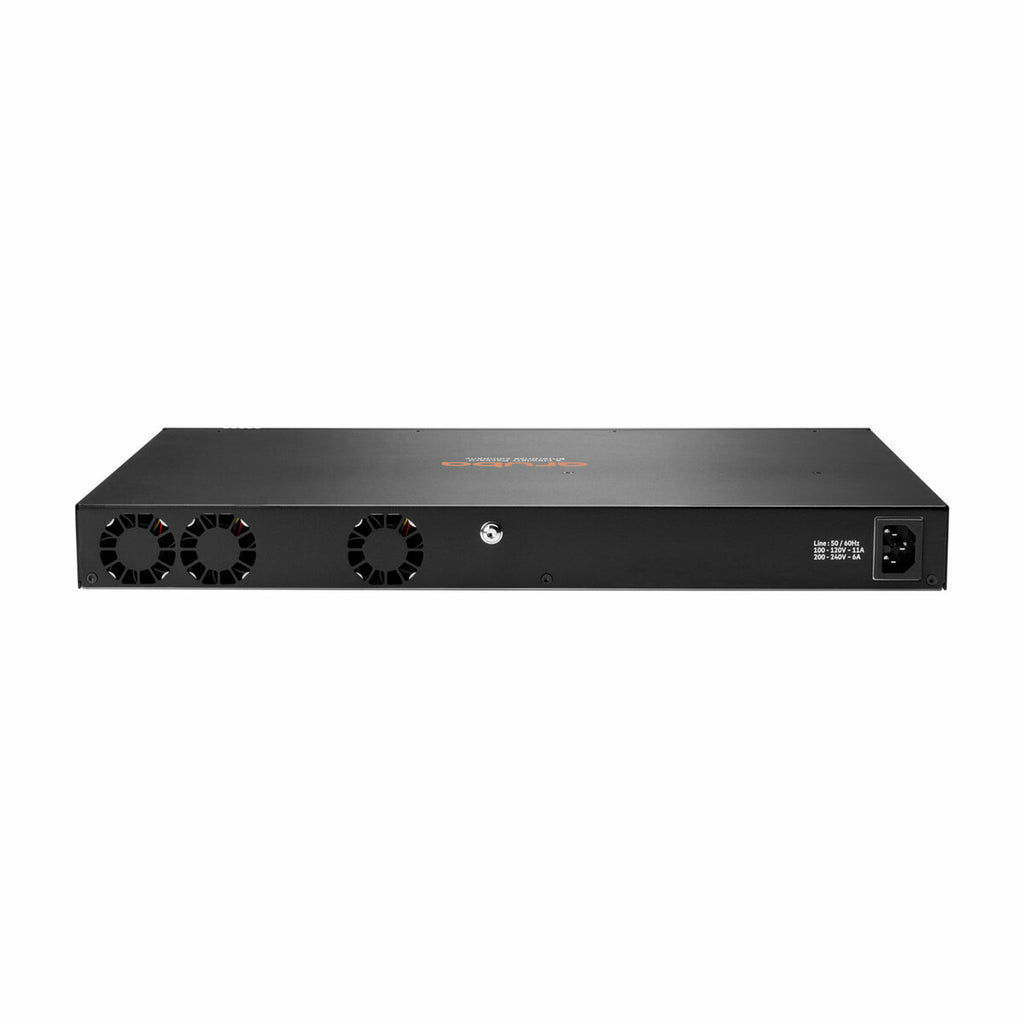

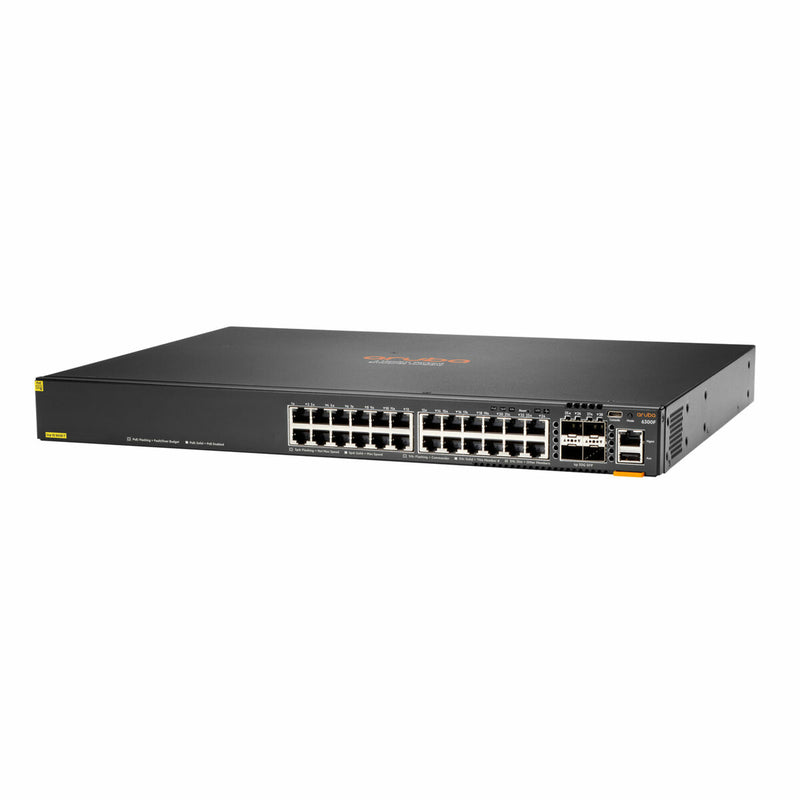

The HPE Aruba Networking CX 6300F Switch (JL666A#ABB) is a modern, stackable Layer 3 switch built for enterprise access and aggregation layers. It features 24 x 1GbE Class 4 PoE+ ports and 4 x high-speed 50GbE SFP56 uplinks, ideal for powering wireless access points, IP phones, and IoT devices. This TAA-compliant switch is designed with front-to-back airflow, rack-mountability, and advanced network automation capabilities.
Powered by HPE’s cloud-native AOS-CX OS, the CX 6300F offers intelligent analytics, secure segmentation, and robust routing features such as BGP, OSPF, and VRF. It integrates seamlessly with HPE Aruba Networking Central for unified management across wired and wireless infrastructure, delivering scalability, visibility, and simplicity.
| Specification | Details |
|---|---|
| Model | JL666A#ABB |
| Switch Type | Layer 3, Managed, Stackable |
| Ports | 24 x 10/100/1000 Base-T (Class 4 PoE+)4 x SFP56 (1G/10G/25G/50G) |
| PoE Standard | IEEE 802.3af, 802.3at |
| PoE Power Budget | Up to 370W |
| Airflow | Front-to-back |
| Stacking | Up to 10 switches (CX 6300F/M models only) |
| Throughput | 334 Mpps |
| Switching Capacity | 448 Gbps |
| Latency | 1Gbps: 2.28μs10Gbps: 1.46μs25Gbps: 1.90μs50Gbps: 3.49μs |
| Processor | Quad Core Arm Cortex-A72 1.8GHz, 8GB DDR4 RAM |
| Storage | 32GB eMMC |
| Management Interfaces | 1 x USB-C Console, 1 x OOBM, 1 x USB Type A Host |
| Management Platforms | Aruba Central, AirWave, CLI, SNMP, REST API |
| Mounting | Rack-mountable |
| Power Input | 100V–120V / 200V–240V |
| Power Consumption | Idle: 52WFull Load: 67W |
| Compliance | TAA Compliant |
