Description

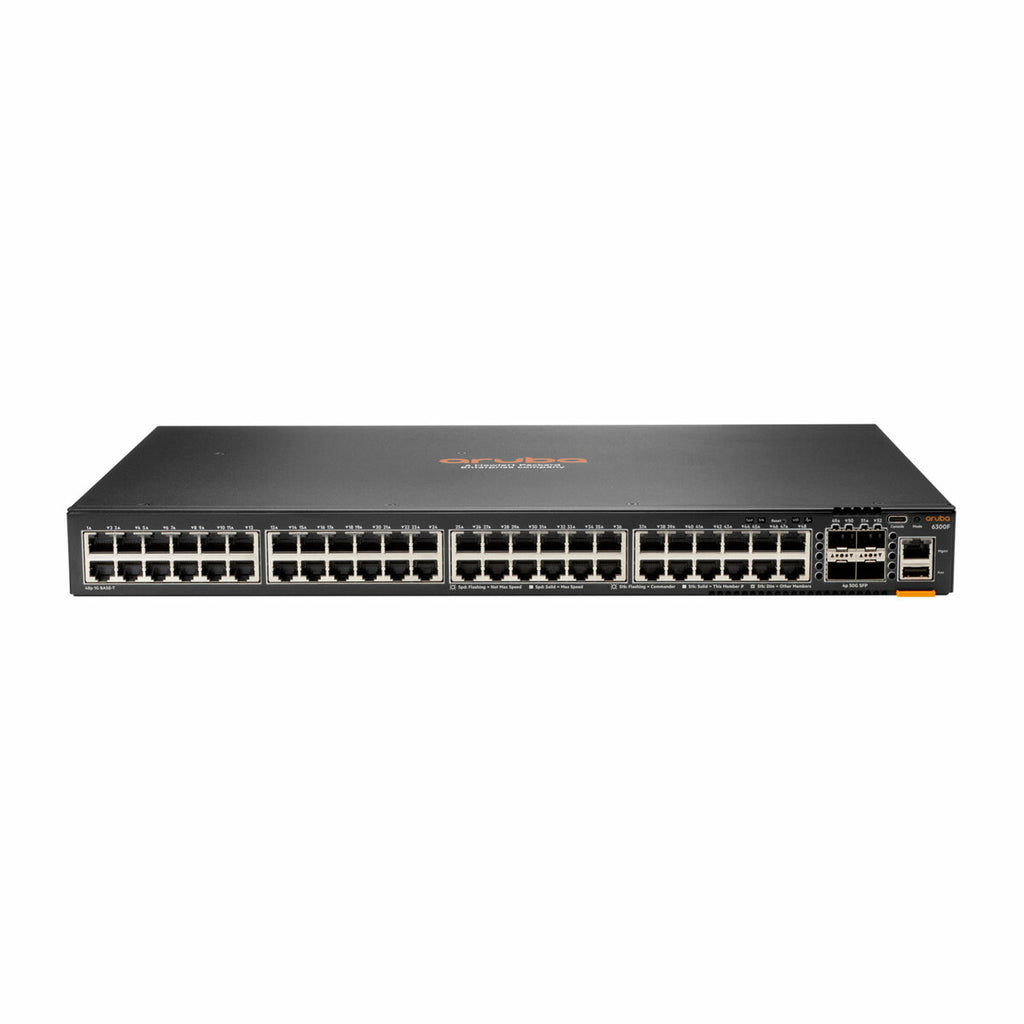

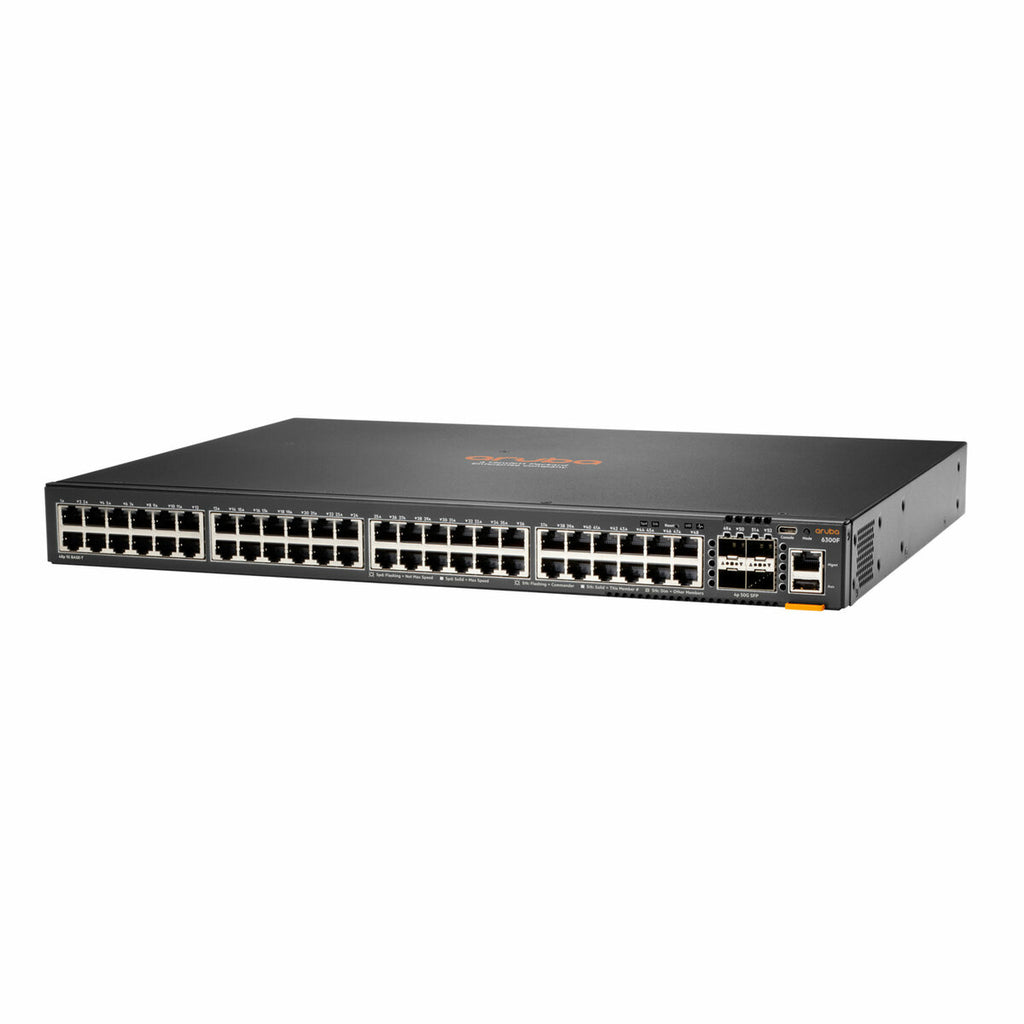

The HPE Aruba Networking CX 6300F (JL667A#ABA) is a modern, stackable Layer 3 switch purpose-built for enterprise edge, aggregation, and top-of-rack deployments. Powered by AOS-CX and the Aruba Gen7 ASIC architecture, it delivers high performance, simplified operations, and scalability for growing network demands. With 48 PoE+ RJ-45 ports and 4 high-speed 1/10/25/50G SFP56 uplinks, this switch offers non-blocking throughput, intelligent analytics, and seamless integration with Aruba’s cloud and mobile management tools.
Key Features:
-
48 x 10/100/1000 Base-T PoE+ ports
-
4 x 1G/10G/25G/50G SFP56 uplink/stacking ports
-
Layer 3 advanced switching with support for BGP, OSPF, VRRP, and more
-
Front and side-to-back airflow with rack-mountable 1U form factor
-
Advanced security, high availability, and Zero-Touch Provisioning (ZTP)
-
Built-in support for Aruba Virtual Stacking Framework (VSF)
-
Lifetime limited warranty
| Category | Details |
|---|---|
| Model | HPE Aruba Networking 6300F (JL667A#ABA) |
| Ports | 48 x 10/100/1000 Base-T PoE+, 4 x 1G/10G/25G/50G SFP56 |
| Switch Type | Managed Layer 3 |
| Form Factor | 1U Rack-mountable |
| Processor | 1x ARM Cortex-A72, 1.78 GHz |
| Memory | 8 GB RAM, 32 GB Flash |
| Switching Capacity | 496 Gbps |
| Throughput | 369 Mpps |
| Latency | 2.28 μs (1G), 1.46 μs (10G), 1.9 μs (25G), 3.49 μs (50G) |
| Stacking | Aruba VSF, up to 10 switches, 200 Gbps stacking bandwidth |
| PoE Support | IEEE 802.3bt high-power PoE (Smart Rate) |
| MAC Table Size | 32,000 entries |
| Airflow Direction | Front and side to back |
| Remote Management | CLI, SSH, SNMPv2/v3, HTTPS, Telnet, TFTP, XRMON |
| Routing Protocols | BGP-4, OSPFv2/v3, VRRP, IGMP, Static IPv6, ECMP |
| Advanced Features | ACL, QoS, VLAN, MLD/IGMP snooping, VXLAN, Jumbo Frames, ZTP |
| Operating Temp | 32°F to 113°F (0°C to 45°C) |
| Dimensions (WxDxH) | 17.4 x 12.9 x 1.7 in |
| Weight | 9.83 lbs (4.46 kg) |
| Certifications | FCC, UL, EN, IEC, VCCI, RoHS, WEEE |
| Warranty | Limited Lifetime |
