Description

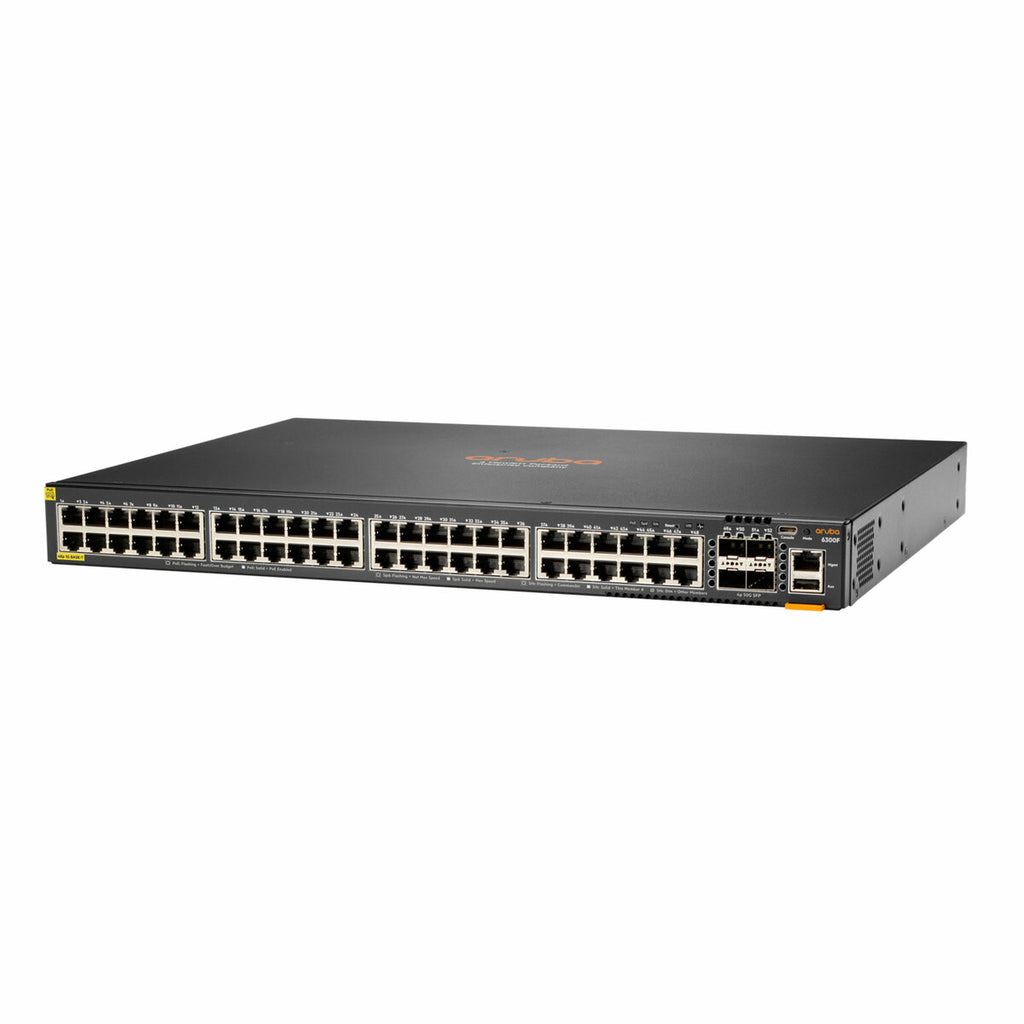

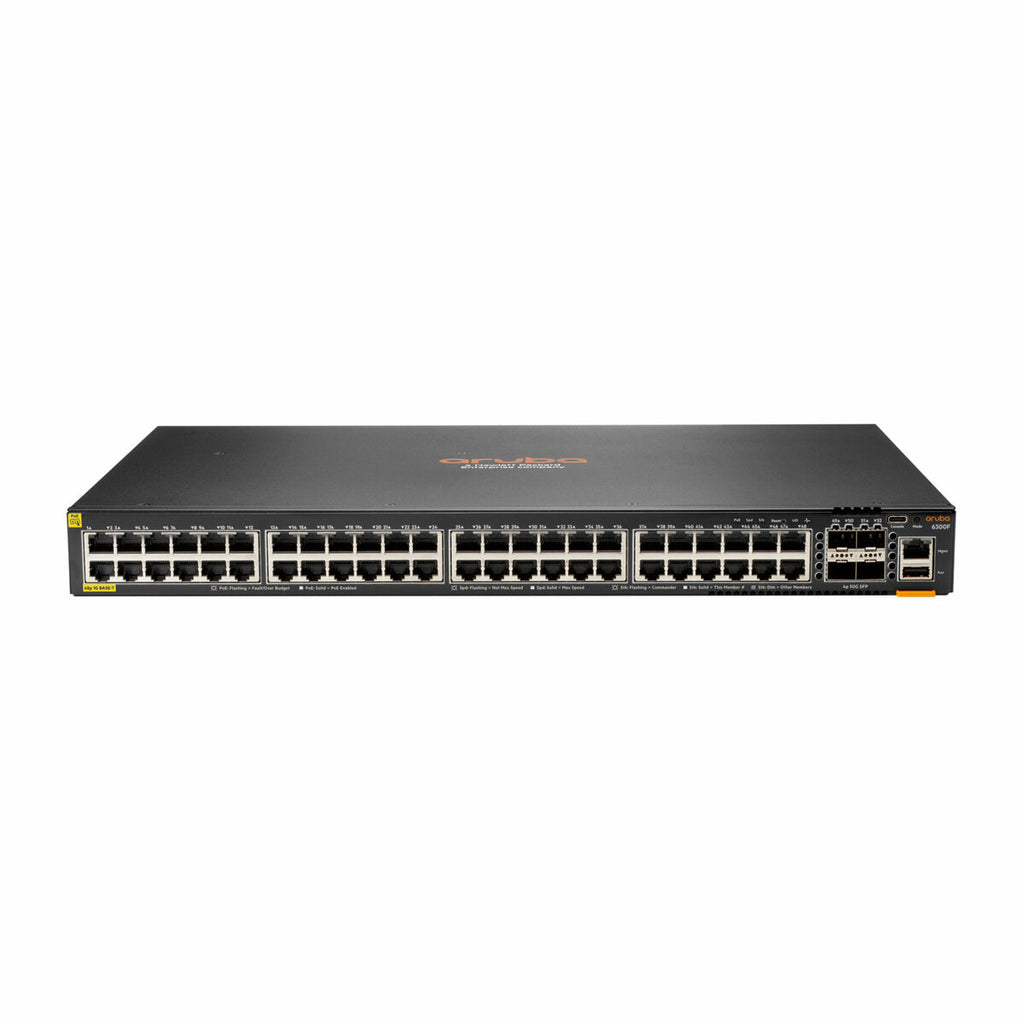

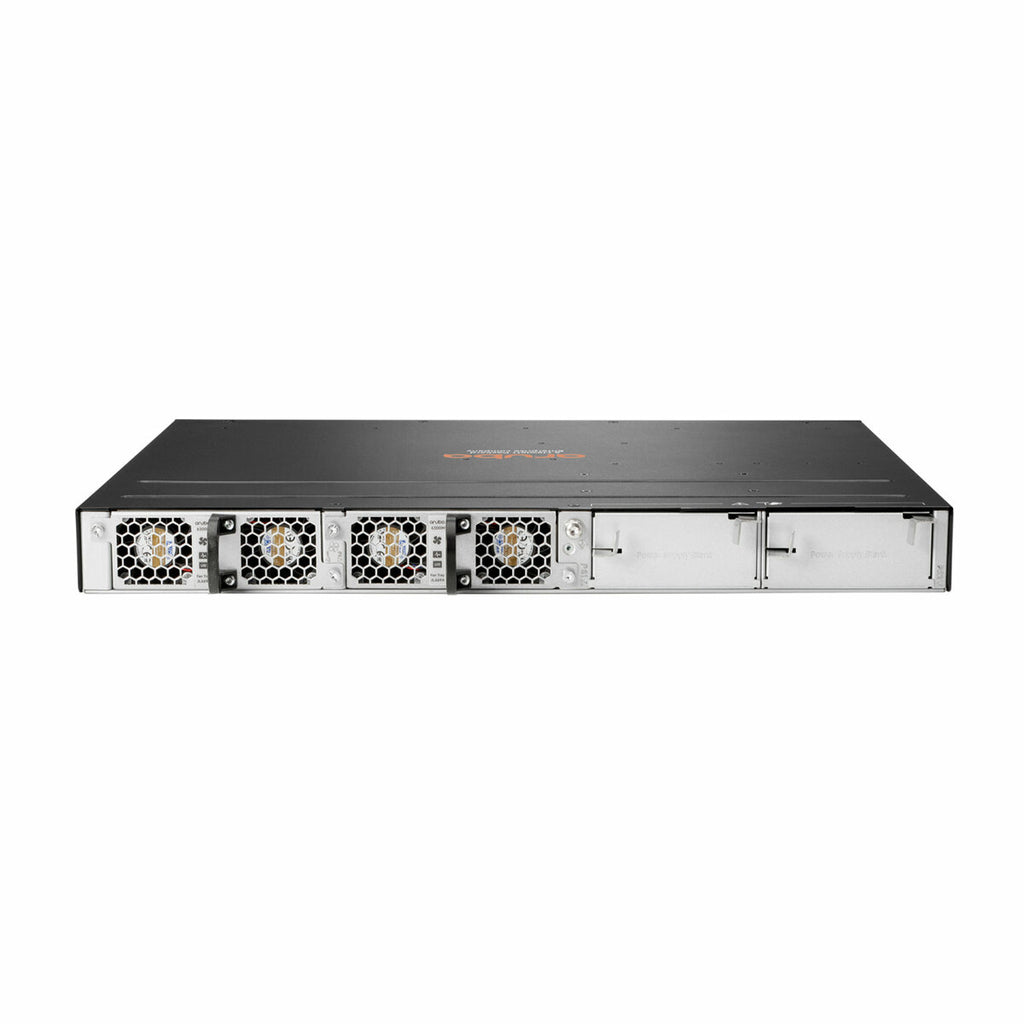

The HPE Aruba Networking CX 6300F Switch (JL665A#ABB) is a high-performance, stackable Layer 3 managed switch designed for enterprise access, aggregation, and top-of-rack deployments. Equipped with 48 1GbE PoE+ ports and 4 high-speed SFP56 uplinks, it supports advanced Layer 3 protocols, robust security features, and intelligent automation capabilities via the Aruba Network Analytics Engine (NAE). With front-to-back airflow, TAA compliance, and full support for Aruba Central cloud management, the CX 6300F ensures optimized performance, scalability, and visibility across wired, wireless, and IoT networks.
| Category | Details |
|---|---|
| Model Number | JL665A#ABB |
| Switch Series | Aruba Networking CX 6300F |
| Port Configuration | 48 x 10/100/1000 PoE+ RJ-45 ports4 x 1G/10G/25G/50G SFP56 uplink ports |
| Switch Type | Managed, Layer 3 |
| PoE Capability | IEEE 802.3af/at, up to 30W per portMax PoE Power: 740W |
| Airflow Direction | Front-to-back |
| Stacking Support | Up to 10 switches via VSF (with supported models) |
| Processor & Memory | Quad Core Arm Cortex-A72 @ 1.8GHz, 8GB DDR4, 32GB eMMC |
| Switching Capacity | 496 Gbps |
| Throughput | 369 Mpps |
| Latency | 1Gbps: 2.28μs10Gbps: 1.46μs25Gbps: 1.90μs50Gbps: 3.49μs |
| Power Supply | Fixed PSU: 100V–120V / 200V–240V |
| Power Consumption | Idle: 63WFull Traffic: 86W |
| Management Options | Aruba Central, AirWave, CLI, SNMP v2c/v3, Multi-Edit Software |
| Compliance | TAA Compliant, Rack-mountable |
| Console Ports | 1 x USB-C, 1 x OOBM port, 1 x USB Type-A |
