Description

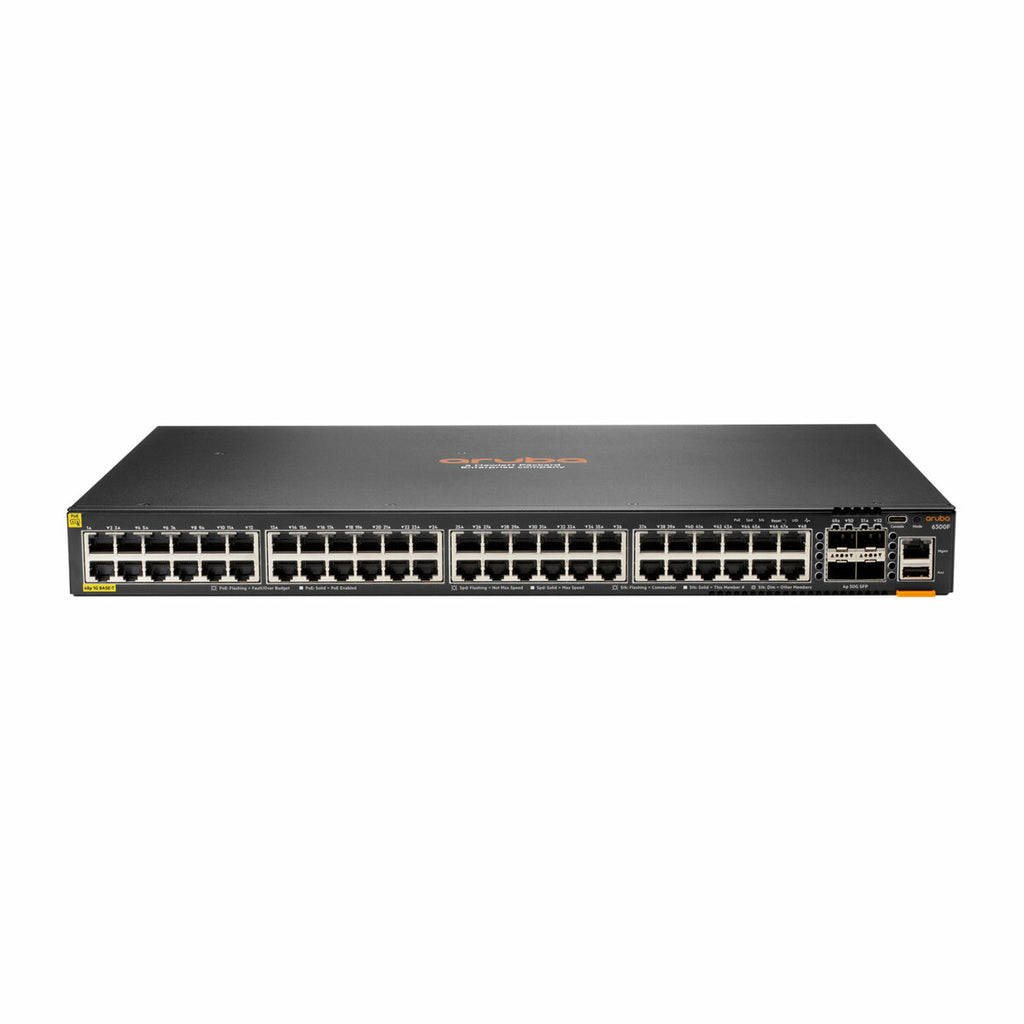

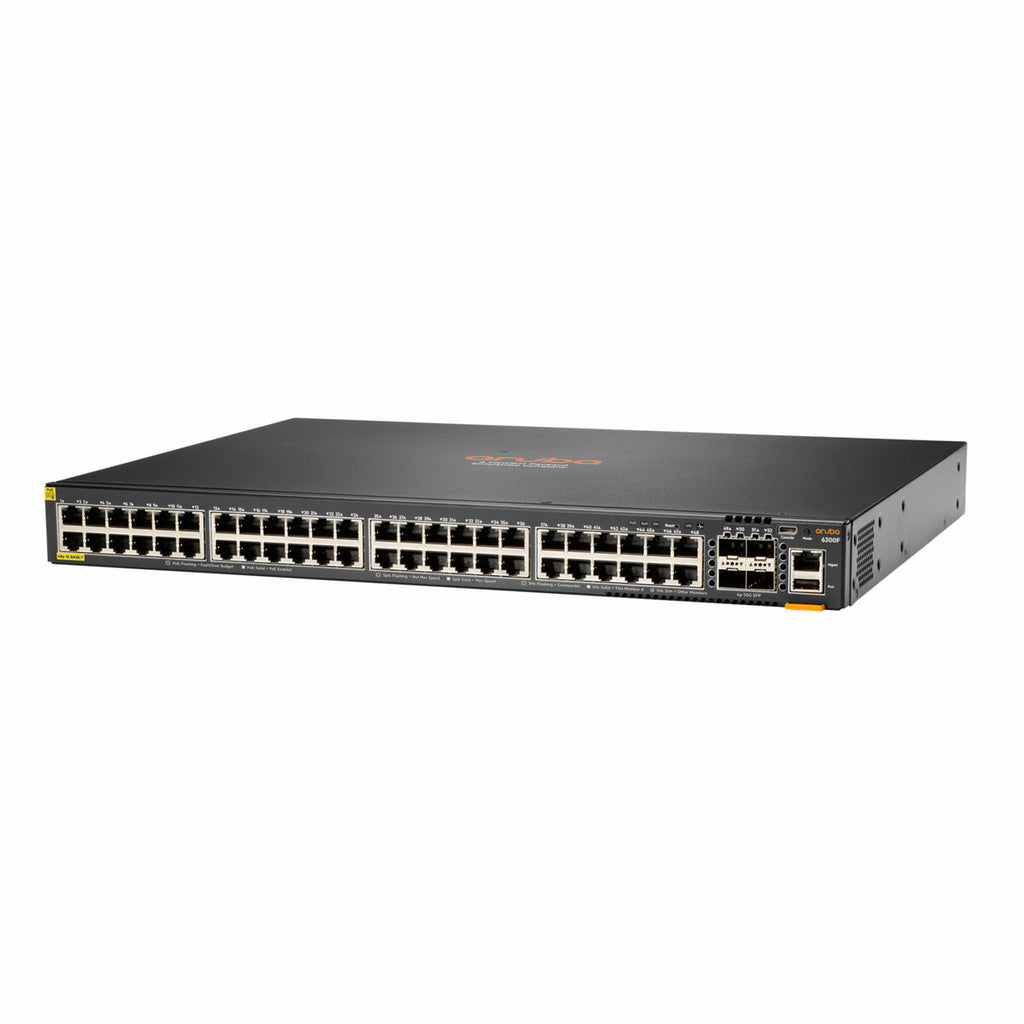

The HPE Aruba Networking CX 6300F Switch (JL665A#ABA) is a high-performance, enterprise-grade Layer 3 managed switch designed to deliver simple, secure, and scalable access in campus and data center networks. Featuring 48 x 10/100/1000 Mbps Class 4 PoE+ ports and 4 x 50G SFP56 uplinks, it supports high-density wireless access point and IoT deployments.
Engineered with a fully distributed architecture and powered by the HPE Aruba Gen7 ASIC, the CX 6300F ensures low latency, high throughput, and adaptive power efficiency. Virtual Stacking Framework (VSF) enables stacking up to 10 switches, simplifying scalability and management. Advanced Layer 3 features, robust security protocols, front-to-back airflow design, and integration with HPE Aruba Networking Central provide visibility, automation, and network-wide policy enforcement.
This switch is ideal for access layer use in enterprise networks requiring high performance, advanced features, and seamless integration with wireless and IoT infrastructure.
| Specification | Details |
|---|---|
| Model | JL665A#ABA |
| Product Series | HPE Aruba Networking CX 6300F |
| Switch Type | Layer 3, Managed |
| Ports | 48 x 10/100/1000Base-T PoE+ (IEEE 802.3af/at)4 x SFP56 (1G/10G/25G/50G) uplinks |
| PoE Budget | 740W Max |

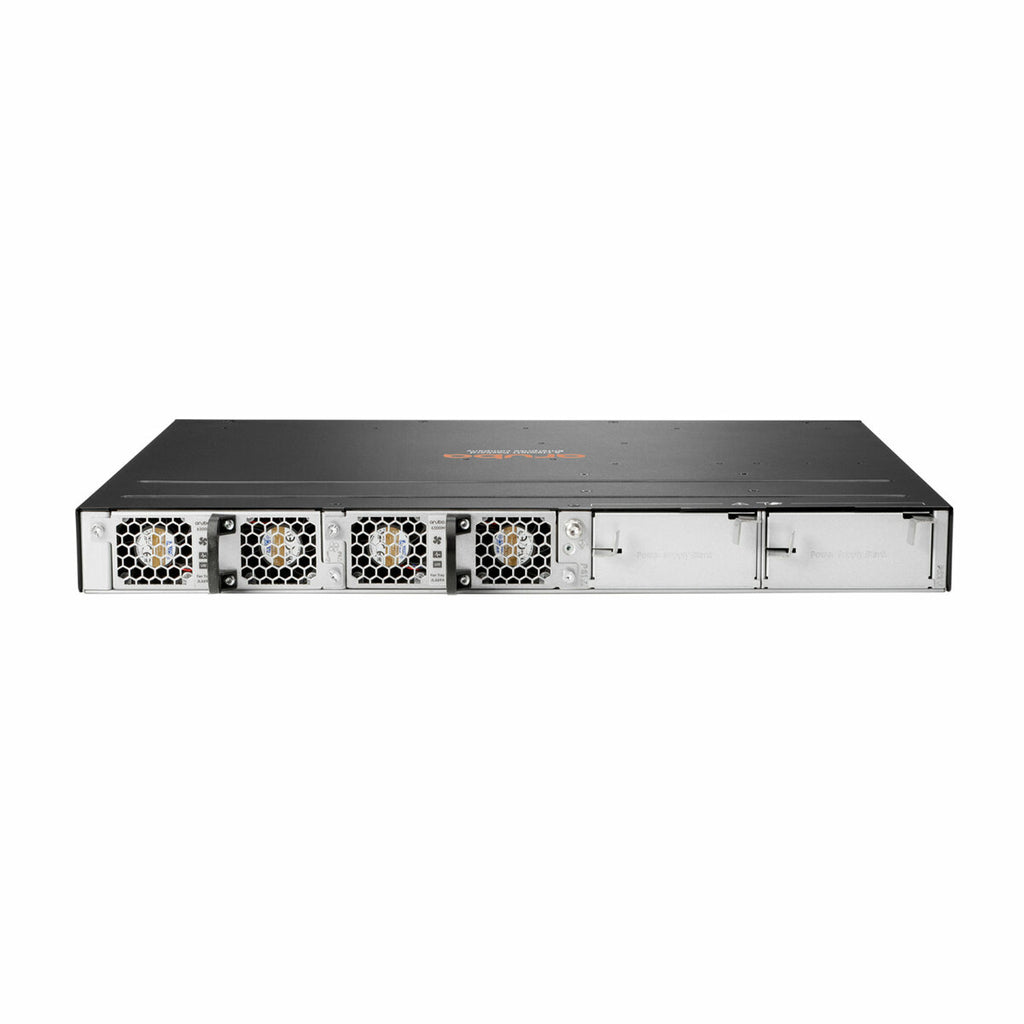

| Airflow | Front-to-back airflow |
| Stacking | Up to 10 switches (VSF via SFP56 DACs) |
| Switching Capacity | 496 Gbps |
| Throughput | 369 Mpps |
| Latency | 1Gbps: 2.28µs10Gbps: 1.46µs25Gbps: 1.90µs50Gbps: 3.49µs |
| Processor | Quad-Core Arm Cortex-A72 @ 1.8GHz |
| Memory | 8 GB DDR4 RAM32 GB eMMC storage |
| Console Ports | 1x USB-C Console1x USB-A Host1x OOBM |
| Power Supply | Fixed PSU (100–240V AC) |
| Power Consumption | Idle: 63WFull Load: 86W |
| Mounting | Rack-mountable |
| Compliance | TAA Compliant |
| Management | HPE Aruba Networking Central, AirWave, CLI, SNMP v2c/v3, REST API, Python Scripting |
| Security Features | MACsec 256, Dynamic Segmentation, ACLs, Role-based access |
| QoS | Advanced QoS with traffic prioritization |
| Use Case | Enterprise access layer, campus edge, IoT and AP aggregation |
