Description

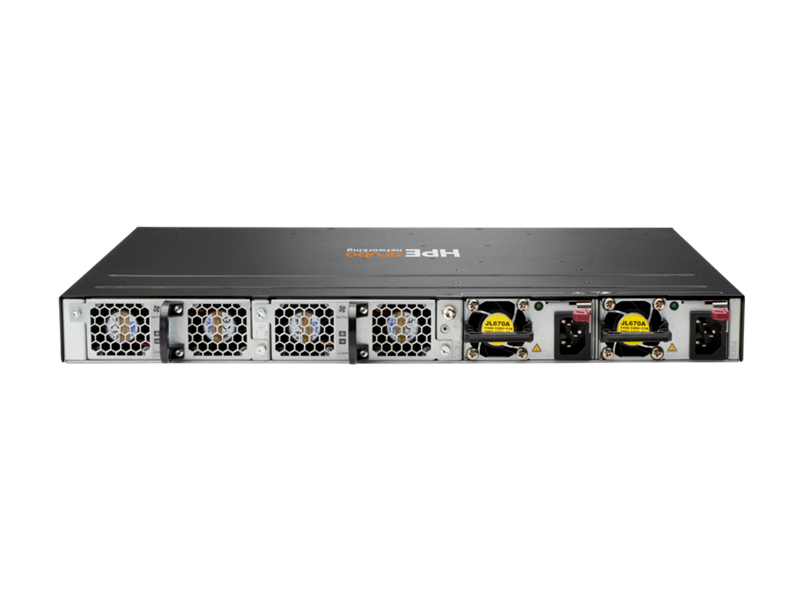

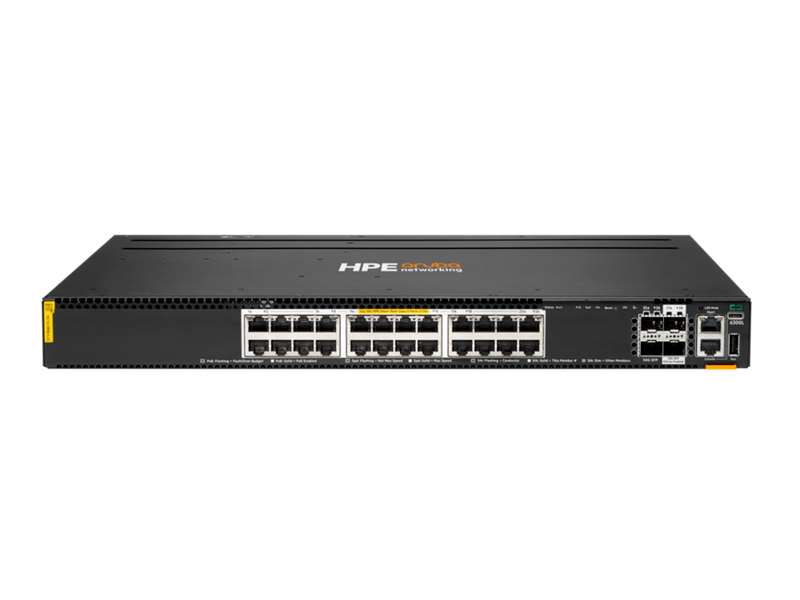

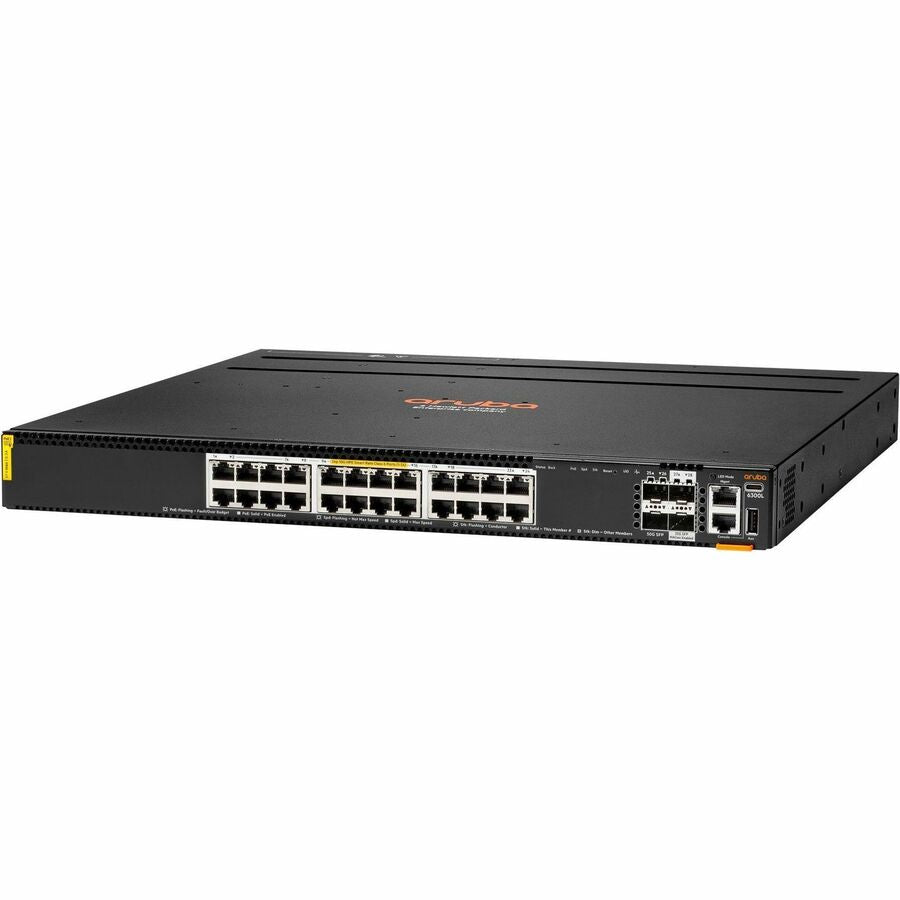

The HPE Aruba Networking CX 6300L (S3L75A) is a high-performance Layer 2 access switch designed for the modern enterprise. Featuring 24 Smart Rate 100M/1G/2.5G/5G/10G Base-T Class 6 PoE ports with support for up to 60W per port (IEEE 802.3bt), this switch enables powerful, flexible connectivity for high-speed access points and IoT deployments. With dual 50G and 25G SFP uplinks, integrated MACsec, and support for VSF stacking of up to 10 switches, the CX 6300L provides scalable, secure, and automated network access.
Engineered for access and data center top-of-rack (ToR) environments, it includes built-in telemetry, REST API, and automation via the HPE Aruba Networking CX Network Analytics Engine and Switch Multi-Edit Software. Fully manageable via Aruba Central, this switch supports dynamic segmentation and role-based access policies for simplified, secure operations.
| Specification | Details |
|---|---|
| Product Number | S3L75A |
| Switch Type | Layer 2 Only, Stackable |
| Access Ports | 24x Smart Rate (100M*/1G/2.5G/5G/10G) Base-T, Class 6 PoE, MACsec, 60W max |
| Uplink Ports | 2x SFP56 (10G/25G/50G)*, 2x SFP28 (10G/25G), MACsec |
| PoE Standards Supported | IEEE 802.3af, 802.3at, 802.3bt (up to 60W per port) |
| Maximum PoE Power | 2880W (PSUs required) |
| Console & Management Ports | 1x USB-C Console, 1x RJ45 Console, 1x OOBM, 1x USB-A Host |
| Stacking Capability | Up to 10 switches (CX 6300L only) |
| Processor & Memory | Quad-core ARM Cortex-A72 1.8GHz, 8 GB DDR4, 32 GB eMMC, 16MB Packet Buffer |
| Switching Capacity | 780 Gbps |
| Throughput | 580 Mpps |
| Latency (min) | 1G: 4.24μs, 10G: 1.50μs, 25G: 2.91μs, 50G: 3.49μs |
| Power Supply Options | 2 slots (hot-swappable); min 1 required; supports JL086A, JL087A, JL670A, JL758A |
| Power Consumption (Typical) | Idle: 90–101W; Full Load: 140–152W depending on PSU |
| Operating Temperature | 0°C to 45°C (short-term excursion to 55°C supported) |
| Form Factor | 1U Rack Mountable |
| Dimensions (WxDxH) | 44.2 x 38.5 x 4.4 cm |
| Weight | 6.02 kg (max) |
| Management | Aruba Central, CLI, Web GUI, REST API, Python scripting |
| Special Features | VSF stacking, MACsec 256, NAE telemetry, Dynamic Segmentation, AI insights |
