Description

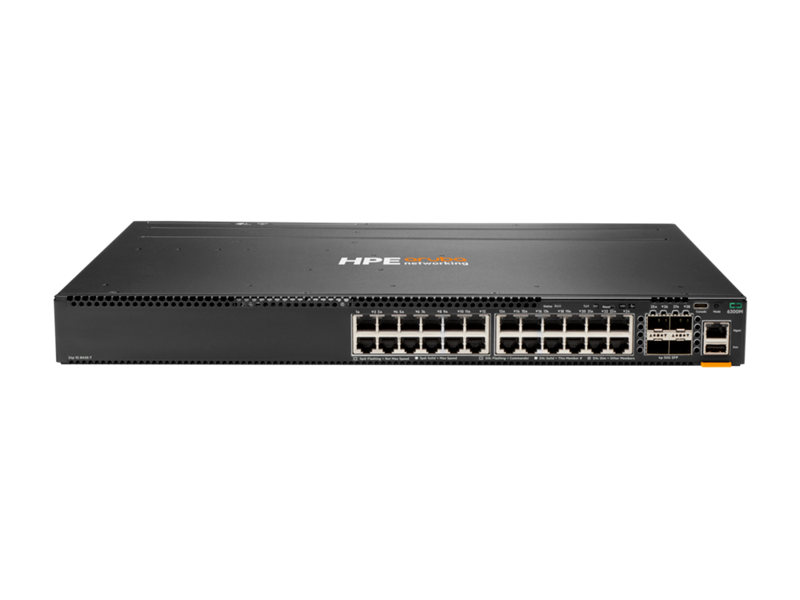

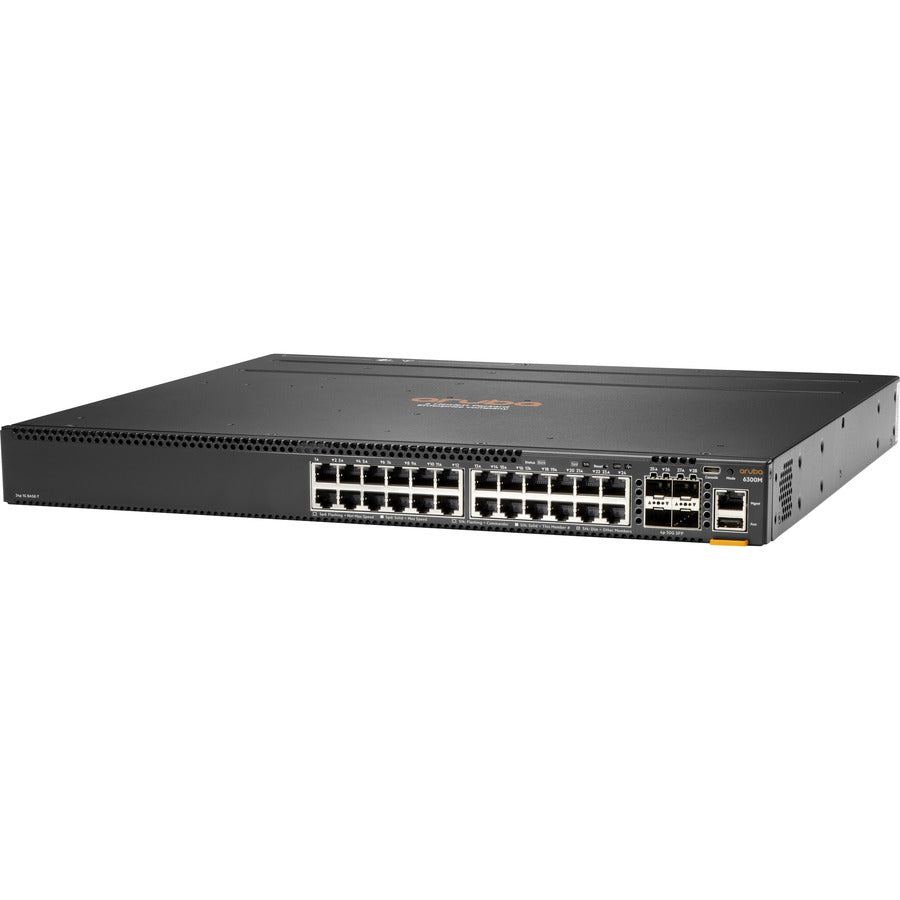

The HPE Aruba Networking CX 6300M JL664A is a high-performance, cloud-native stackable Layer 3 switch designed for enterprise access and aggregation. Equipped with 24 1GbE RJ45 ports and 4 versatile SFP56 uplink ports supporting up to 50Gbps, this 1U switch delivers enterprise-class features including BGP, EVPN, VXLAN, PTP, and robust automation capabilities via Aruba's Network Analytics Engine (NAE). It supports up to 10 units in a stack with VSF and is ideal for modern networks needing speed, security, and scalability. This model includes one fan tray (JL669B) and requires at least one compatible PSU (JL085A or JL757A).
| Specification | Details |
|---|---|
| Model Number | JL664A |
| Form Factor | 1U Rackmount |
| Ports | 24 × 10/100/1000BASE-T; 4 × SFP56 (1/10/25/50G); 1 × USB-C Console; 1 × OOBM; 1 × USB Type-A |
| Transceiver Support | Min 0 / Max 4 SFP/SFP+/SFP28/SFP56 1G/10G/25G/50G |
| Stacking | Up to 10 switches via VSF (front-plane stacking) |
| Switching Capacity | 448 Gbps |
| Throughput | 334 Mpps |
| Latency | 1G: 2.28μs; 10G: 1.46μs; 25G: 1.90μs; 50G: 3.49μs |
| Processor | Quad-Core ARM Cortex-A72 @ 1.8 GHz |
| Memory | 8 GB DDR4 RAM; 32 GB eMMC flash |

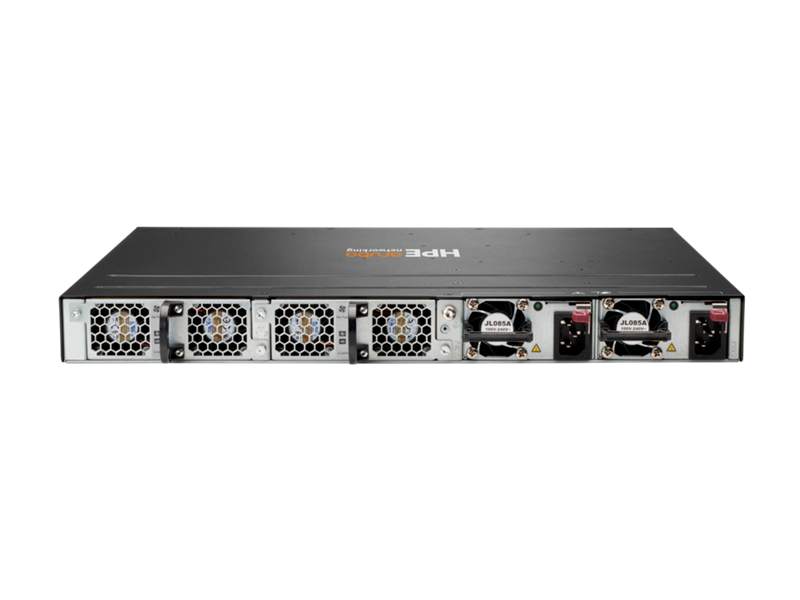

| Power Supply (Required) | Min 1 / Max 2: JL085A (250W), JL757A (250W) – mix supported |
| Fan Tray | Includes 1 × JL669B (1 open slot with blank cover) |
| Idle Power Consumption | 49W |
| Max Power Consumption | 64W at full load |
| Dimensions (H × W × D) | 4.4 × 44.2 × 38.5 cm |
| Weight | 4.81 kg |
| Management | Aruba Central, CLI, SNMP v2c/v3, AirWave, REST API, Multi-Edit Software |
| Advanced Features | BGP, EVPN, VXLAN, VRF, QoS, MACsec 256, PTP, NAE, Dynamic Segmentation |
