Description

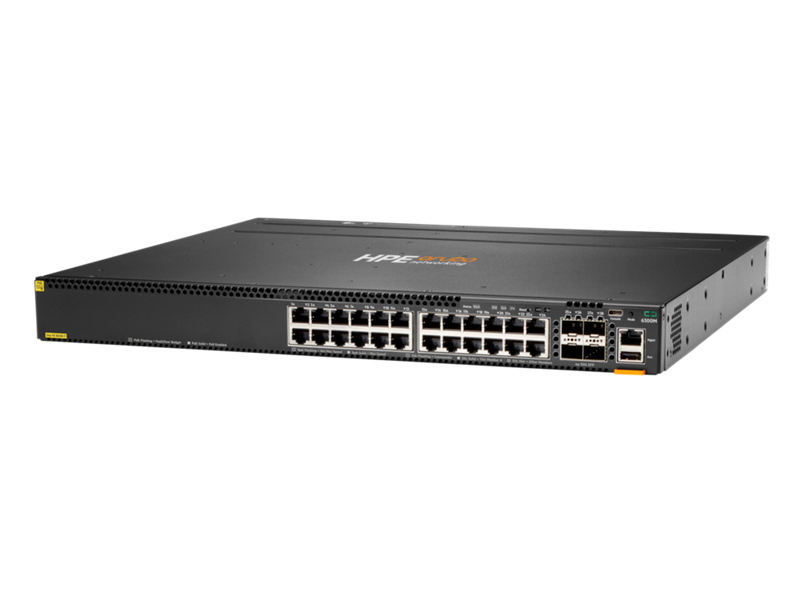

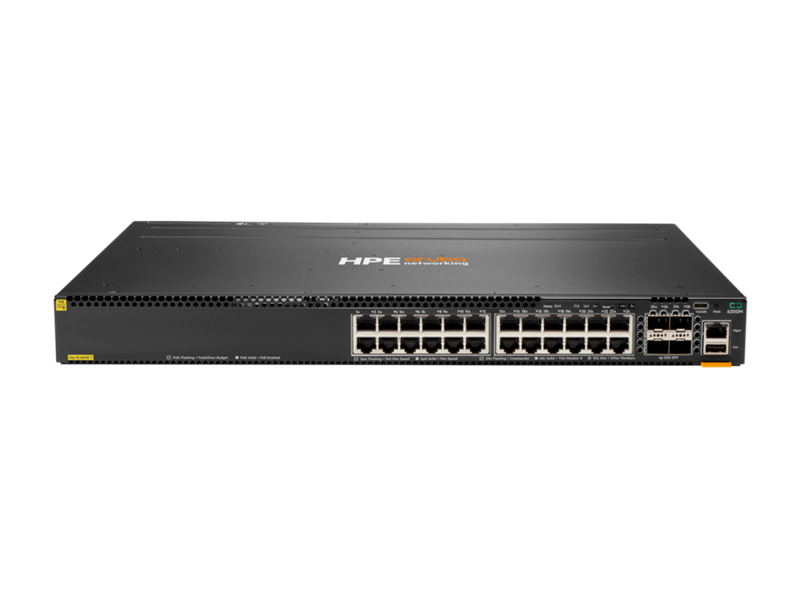

The HPE Aruba Networking CX 6300M JL662A is a next-generation, stackable Layer 3 switch designed for enterprise access and top-of-rack data center deployments. Featuring 24 1GbE PoE+ ports (Class 4 up to 30W per port) and 4 high-speed SFP56 uplink ports supporting up to 50GbE, it delivers versatile, scalable, and high-performance connectivity. Powered by a Gen7 ASIC, this switch ensures wire-speed performance with advanced telemetry, automation, and robust security features like MACsec 256 and dynamic segmentation. Ideal for IoT and AP-heavy environments, it supports HPE Smart Rate PoE and integrates seamlessly with HPE Aruba Networking Central for unified network management.
| Specification | Details |
|---|---|
| Product Number | JL662A |
| Switching Capacity | 448 Gbps |
| Throughput | 334 Mpps |
| Ports | 24 x 10/100/1000Base-T PoE+ (IEEE 802.3af/at) 4 x SFP56 1/10/25/50 GbE uplinks |
| PoE Budget | Max 720W |
| Stacking Support | Up to 10 switches via VSF 200β400 Gbps stacking throughput |
| Transceiver Support | Up to 4 SFP/SFP+/SFP28/SFP56 (1/10/25/50G) modules |
| Console & Management | 1 x USB-C Console Port 1 x OOBM Port 1 x USB Type-A Host Port |
| Processor | Quad-Core ARM Cortex-A72 1.8GHz |
| Memory | 8 GB DDR4 RAM, 32 GB eMMC |
| Latency | 1G: 2.28ΞΌs; 10G: 1.46ΞΌs; 25G: 1.90ΞΌs; 50G: 3.49ΞΌs |

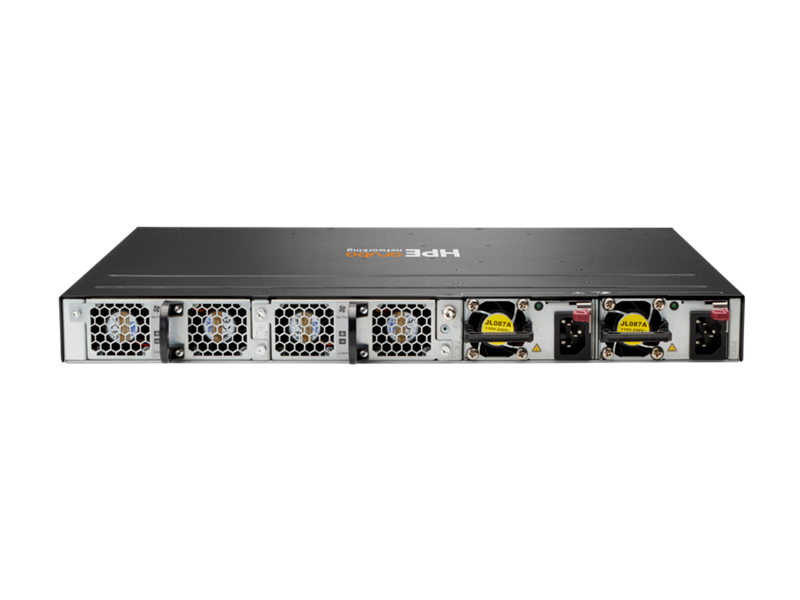

| Power Supply Options | Must select min 1, max 2 (mix OK): - JL086A (680W) - JL087A (1050W) - JL670A (1600W) - JL758A (1050W) |
| Fan Tray | Includes 1x JL669B, with 1 open slot (blank) |
| Management Tools | Aruba Central, AirWave, CLI, Multi-Edit Software, SNMP v2c/v3, RMON |
| Mounting | 1U Rack-mountable |
| Dimensions (WxDxH) | 44.2 x 38.5 x 4.4 cm |
| Weight | 5.00 kg |
| Typical Power Draw | Idle: 59β62W, Full Load: 74β81W (varies by PSU) |
