Description

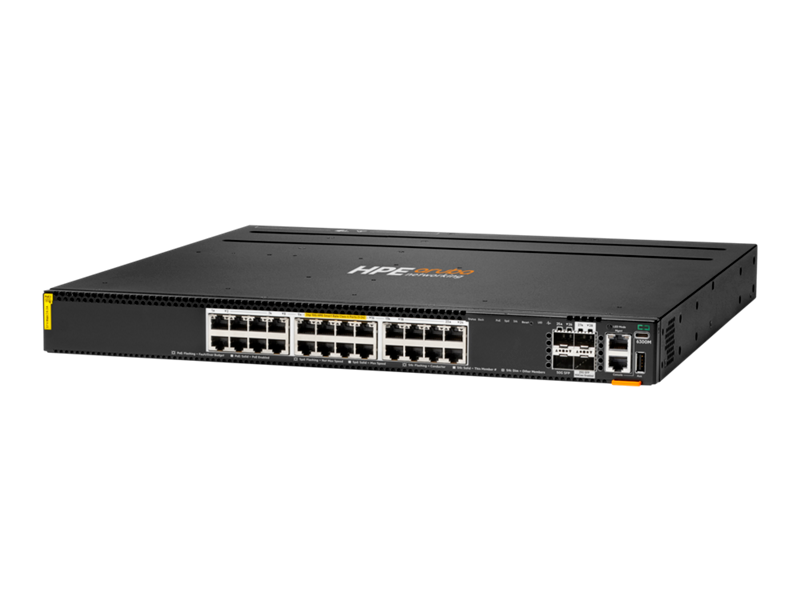

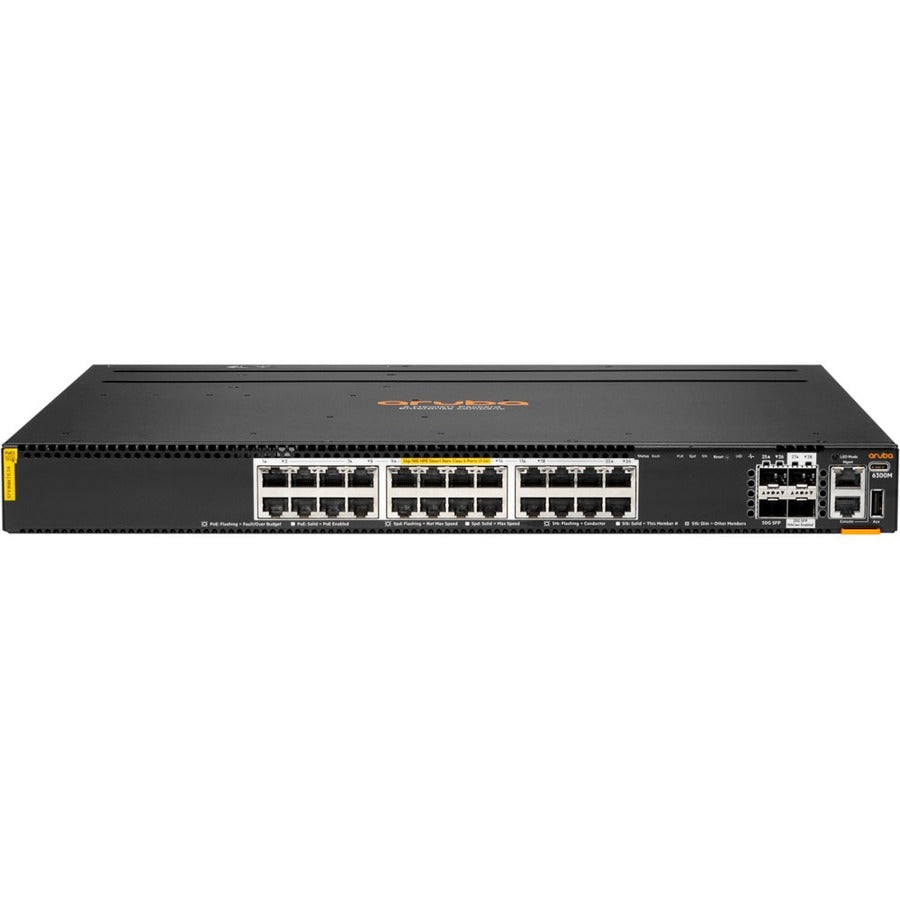

The HPE Aruba Networking CX 6300M R8S89A is a next-generation Layer 3 stackable access switch designed for enterprise edge, aggregation, and data center top-of-rack deployments. Featuring 24 HPE Smart Rate multi-gigabit ports (100M/1G/2.5G/5G/10G) with Class 6 PoE (up to 60W per port), this switch empowers high-speed connectivity for Wi-Fi 6/6E APs, security cameras, and IoT devices. It includes 2 x 10/25/50G SFP and 2 x 10/25G MACsec-capable SFP uplink ports for scalable stacking and uplinks, plus full support for IEEE 802.3bt PoE, MACsec, and HPE’s Network Analytics Engine for real-time monitoring.
Built on a fully distributed Gen7 ASIC architecture and managed via HPE Aruba Networking Central, Switch Multi-Edit Software, or CLI, this switch supports up to 10-member stacking, VSF, and AI-powered insights—ensuring a future-proof, high-performance network foundation.
| Specification | Details |
|---|---|
| Product Number | R8S89A |
| Ports | 24x Smart Rate 100M/1G/2.5G/5G/10G Base-T Class 6 PoE (up to 60W per port) |
| 2x 10G/25G/50G SFP ports (for interconnect and VSF) | |
| 2x 10G/25G SFP ports with MACsec | |
| PoE Standards | IEEE 802.3af, 802.3at, 802.3bt |
| Max PoE Budget | 2880W (with supported PSUs) |
| Console & Management Ports | 1x USB-C Console, 1x RJ45 Console, 1x OOBM, 1x USB-A Host, Bluetooth Dongle |
| Processor | Quad-core ARM Cortex-A72 1.8GHz, 8GB DDR4, 32GB eMMC |
| Packet Buffer | 16 MB shared |
| Latency (Typical) | 1G: 4.24µs, 10G: 1.50µs, 25G: 2.91µs, 50G: 3.49µs |
| Switching Capacity | 880 Gbps (routing), 780 Gbps (switching) |
| Throughput | 580 Mpps |
| Stacking | Up to 10 switches (VSF) |

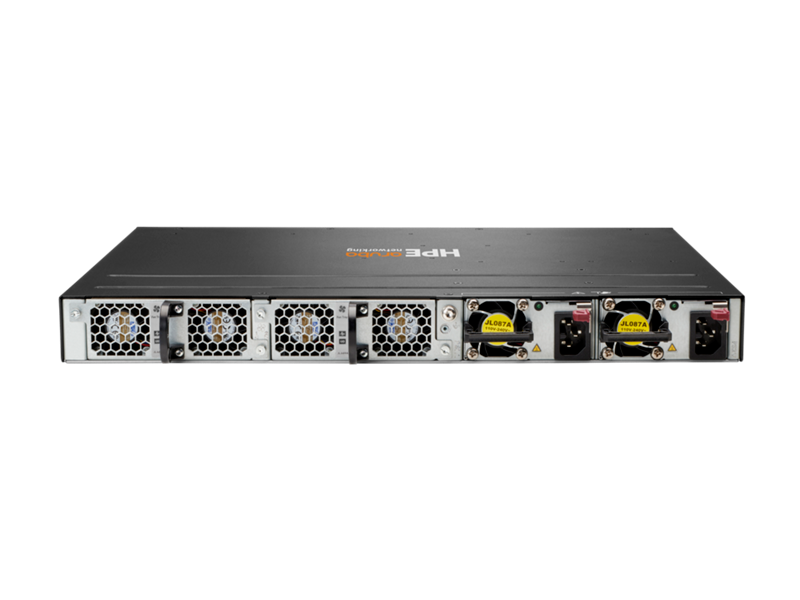

| Power Supplies (Required, Sold Separately) | JL086A, JL087A, JL670A, JL758A |
| Power Consumption (Typical) | Idle: 90–101W, Full Load: 140–152W |
| Dimensions (H x W x D) | 4.4 x 44.2 x 38.5 cm |
| Weight | 6.71 kg |
| Management | Aruba Central, AirWave, CLI, SNMP, Switch Multi-Edit |
| Software Features | BGP, EVPN, VXLAN, VRF, OSPF, MACsec, PTP, AVB, LRM, Dynamic Segmentation |
Payment & Security
Your payment information is processed securely, and we do not store credit card details or access your credit card information.
Return Policy (Short Summary)
We offer a 30-day return window for most unopened, factory-sealed items.
Returns must be authorized before shipping back and must include all original packaging and accessories. Opened or used items are not returnable unless defective.
Some products—such as custom orders, special-order items, audio gear, software, and LED video walls—are non-returnable. Non-defective returns may be subject to a 20–30% restocking fee, and customers are responsible for return shipping costs.
For damaged or incorrect items, please contact us immediately.
