Description

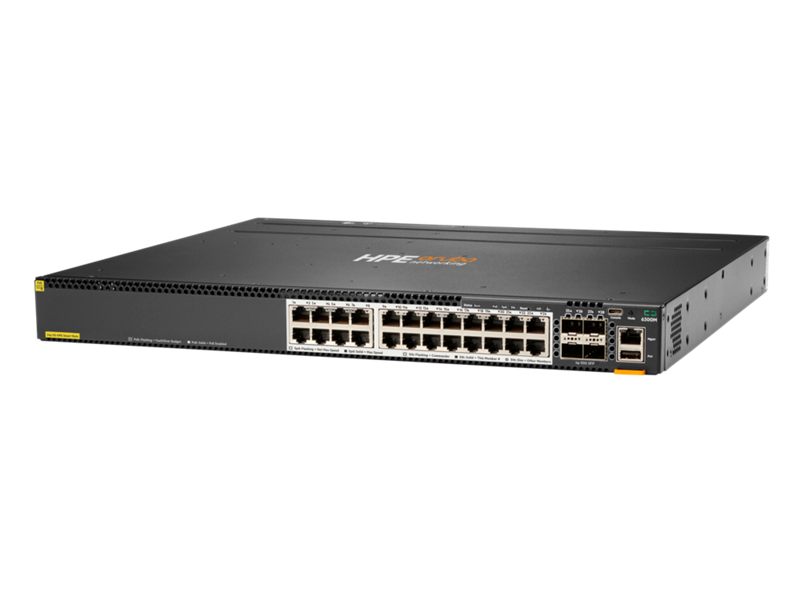

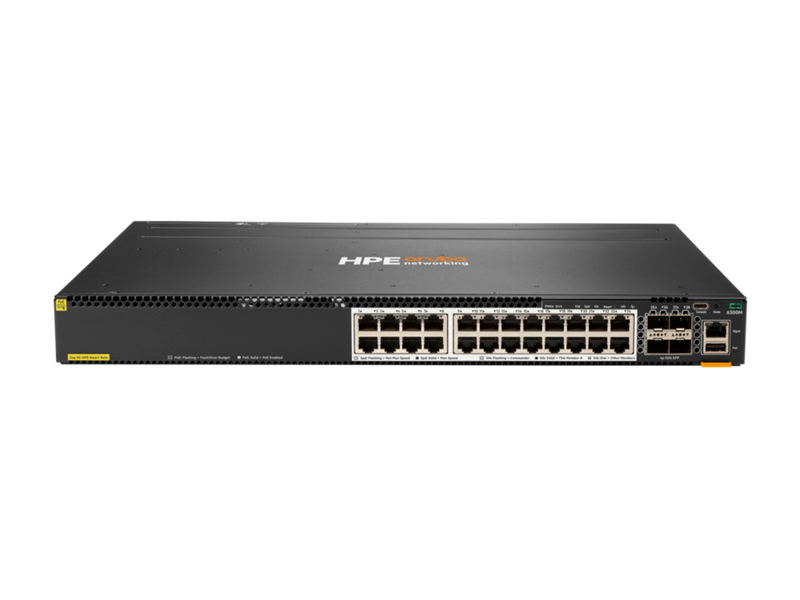

The HPE Aruba Networking CX 6300M JL660A is a powerful and intelligent Layer 3 stackable switch designed for modern campus edge and top-of-rack deployments. It offers 24 Smart Rate Multi-Gigabit Ethernet ports supporting 1/2.5/5GbE with Class 6 PoE (up to 60W per port) and 4 SFP56 ports capable of 1/10/25/50GbE uplinks, delivering flexible connectivity and high-speed stacking of up to 400 Gbps.
Backed by a fully programmable OS, Gen7 ASICs, and the Aruba Network Analytics Engine (NAE), this switch enables real-time network insights, automation, and enhanced security. It supports advanced features like VXLAN, BGP, EVPN, MACsec-256, and PTP, making it ideal for scalable and secure deployments in campus and edge environments.
Requires at least one PSU (JL086A, JL087A, JL670A, or JL758A). Includes one fan tray (JL669B) with one additional fan slot covered.
| Specification | Details |
|---|---|
| Product Number | JL660A |
| Ports | 24Γ Smart Rate 100M/1G/2.5G/5G Base-T Class 6 PoE (60W per port) |
| 4Γ SFP56 1/10/25/50GbE | |
| PoE Standards | IEEE 802.3af, 802.3at, 802.3bt |
| Max PoE Power | 1440W |
| Stacking | Up to 10 switches, up to 400 Gbps stacking bandwidth |
| Console Ports | 1Γ USB-C, 1Γ OOBM RJ45, 1Γ USB Type-A |
| Memory & Processor | Quad-Core Arm Cortex-A72 @ 1.8GHz, 8GB DDR4, 32GB eMMC |
| Packet Buffer Memory | 8MB / 16MB / 32MB (depending on configuration) |
| Latency | 1G: 4.24ΞΌs, 10G: 1.50ΞΌs, 25G: 2.91ΞΌs, 50G: 3.49ΞΌs |
| Throughput | 476 Mpps |
| Switching Capacity | 640 Gbps |
| Management | Aruba Central, CLI, SNMP v2c/v3, REST API, Switch Multi-Edit, AirWave |
| Power Supply (Required) | Min 1 / Max 2 (JL086A β 680W, JL087A β 1050W, JL670A β 1600W, JL758A β 1050W) |
| Fan Trays | Includes 1Γ JL669B, 1 additional slot with blank |
| Power Consumption | 91Wβ98W (Idle); 131Wβ139W (100% Traffic Load) depending on PSU |
| Form Factor | 1U Rack-mountable |
| Dimensions (HxWxD) | 4.4 Γ 44.2 Γ 38.5 cm |
| Weight | 5.42 kg |
