Description

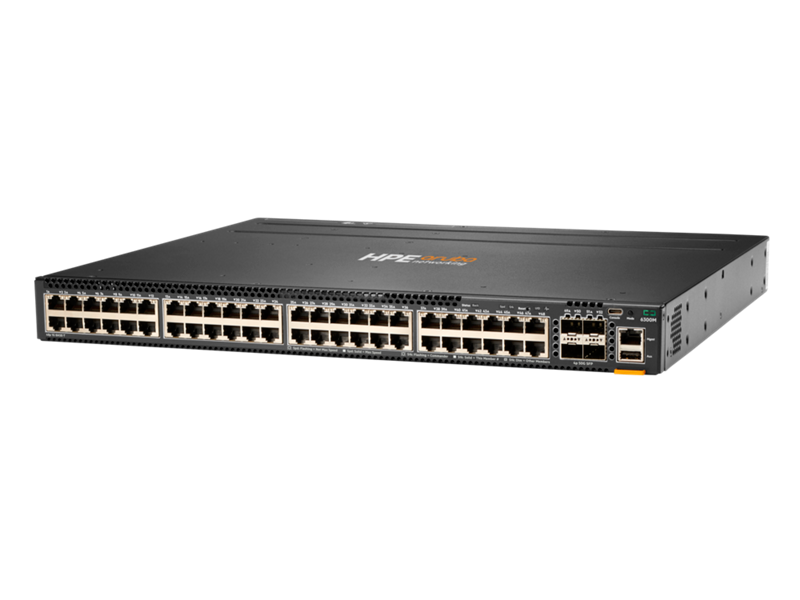

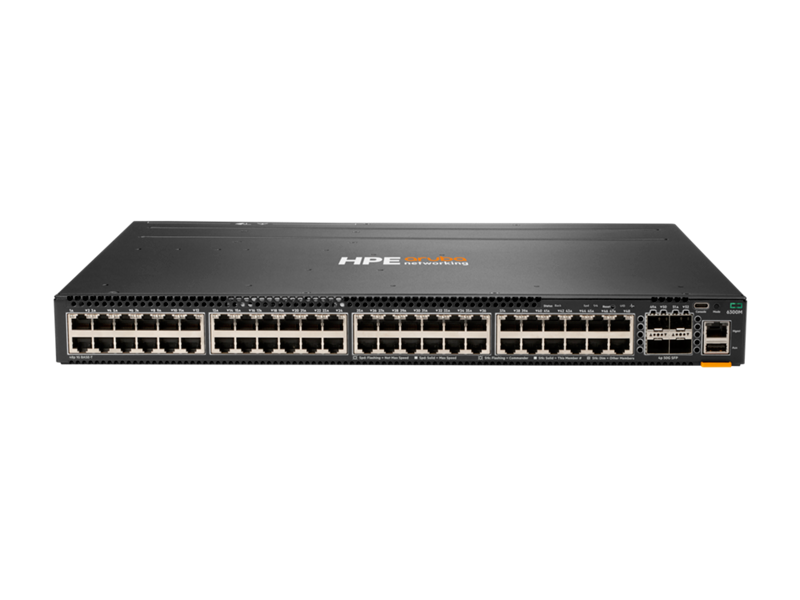

The HPE Aruba Networking CX 6300M 48-port 1GbE and 4-port SFP56 Switch (JL663A) is a high-performance, cloud-native, stackable Layer 3 switch designed for enterprise access, aggregation, and data center top-of-rack deployments. Equipped with 48 Gigabit Ethernet ports and 4 high-speed SFP56 uplinks supporting 1/10/25/50 GbE, it ensures seamless scalability and high throughput.
Built on a fully distributed Gen7 ASIC architecture, it delivers wire-speed switching, low latency, and advanced analytics. The switch includes robust Layer 3 capabilities, network automation tools, and support for HPE Aruba’s Virtual Switching Framework (VSF) for stacking up to 10 switches. Ideal for powering modern networks with dynamic segmentation, AI-driven visibility, and seamless management via Aruba Central.
Note: PSU must be selected separately (min 1/max 2). Compatible power supplies: JL085A, JL757A. Includes 1 fan tray (JL669B), with 1 open slot covered by blank panel.
| Specification | Details |
|---|---|
| Product Number | JL663A |
| Ports | 48x 10/100/1000Base-T, 4x 1/10/25/50G SFP56, 1x USB-C console, 1x OOBM, 1x USB-A |
| Switching Capacity | 496 Gbps |
| Throughput | 369 Mpps |
| Stacking | Up to 10 switches (VSF) |
| Latency | 1Gbps: 2.28μs, 10Gbps: 1.46μs, 25Gbps: 1.90μs, 50Gbps: 3.49μs |
| Memory/Processor | Quad Core ARM Cortex-A72 @ 1.8GHz, 8GB DDR4, 32GB eMMC |
| Power Supply (Not Included) | Must select min 1 / max 2: JL085A, JL757A (Mix OK) |
| Fan Tray | 1x JL669B installed, 1 open slot with blank cover |
| Transceiver Support | Min=0 / Max=4 SFP/SFP+/SFP28/SFP56 (1/10/25/50G) |
| Management Options | Aruba Central, AirWave, CLI, SNMP, REST API, Multi-Edit |
| Dimensions (HxWxD) | 4.4 x 44.2 x 38.5 cm |
| Weight | 4.95 kg |
| Mounting | Rack-mountable (1U) |
| Operating System | AOS-CX |
