Description

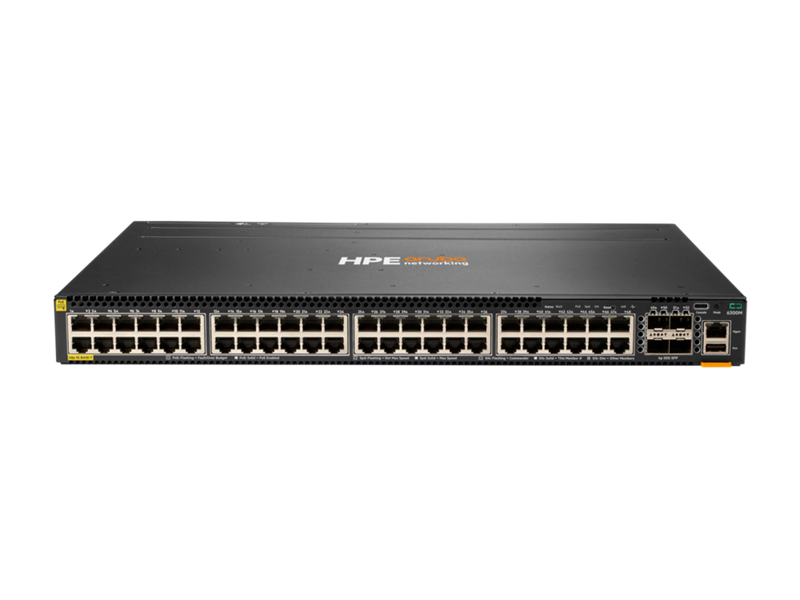

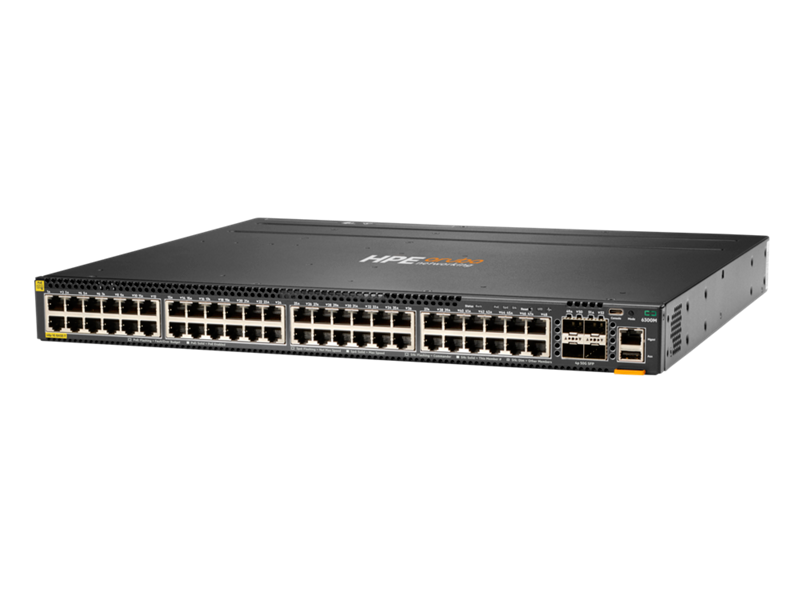

The HPE Aruba Networking CX 6300M JL661A is a high-performance, stackable Layer 3 switch designed for modern enterprise campus, branch, and data center deployments. Featuring 48 Class 4 PoE+ ports and 4 high-speed SFP56 uplinks (1G/10G/25G/50G), this switch delivers superior flexibility and performance.
Powered by Aruba’s fully distributed Gen7 ASICs and the cloud-native AOS-CX operating system, it supports advanced capabilities like BGP, EVPN, VXLAN, MACsec 256, and Aruba’s Network Analytics Engine (NAE) for real-time telemetry and diagnostics.
With VSF stacking for up to 10 switches, robust automation features, and integration with Aruba Central, this switch ensures scalability, simplicity, and unified management across your network.
Note: Power supplies (min 1 / max 2) are required and sold separately. Compatible PSU: JL086A (680W), JL087A (1050W), JL670A (1600W), JL758A (1050W). Includes 1 fan tray (JL669B).
| Category | Details |
|---|---|
| Model Number | JL661A |
| Ports | 48x 10/100/1000Base-T PoE+ (Class 4, up to 30W per port) |
| 4x SFP56 (1G/10G/25G/50G) | |
| PoE Standards | IEEE 802.3af, 802.3at |
| Max PoE Budget | Up to 1440W (dependent on PSU configuration) |
| Stacking | Up to 10 switches via VSF |
| Latency (typical) | 1Gbps: 2.28μs, 10Gbps: 1.46μs, 25Gbps: 1.90μs, 50Gbps: 3.49μs |
| Switching Capacity | 496 Gbps |
| Throughput | 369 Mpps |
| Processor | Quad-Core ARM Cortex-A72 @ 1.8GHz |
| Memory | 8 GB DDR4, 32 GB eMMC |
| Management Interfaces | 1x USB-C console, 1x OOBM port, 1x USB-A host port |
| Software Features | AOS-CX, REST API, Python scripting, VSF, NAE, Aruba Central, AirWave support |
| Power Supply Options | JL086A (680W), JL087A (1050W), JL670A (1600W), JL758A (1050W) - mix OK |
| Power Consumption | Idle: 70–73W / Max: 88–96W (depends on PSU) |
| Form Factor | 1U Rack-mountable |
| Dimensions (H x W x D) | 4.4 x 44.2 x 38.5 cm |
| Weight | 5.16 kg |
| Cooling | Includes 1x Fan Tray (JL669B) |
