Description
High-Performance, Modular Core and Aggregation Switch for Campus and Data Centers

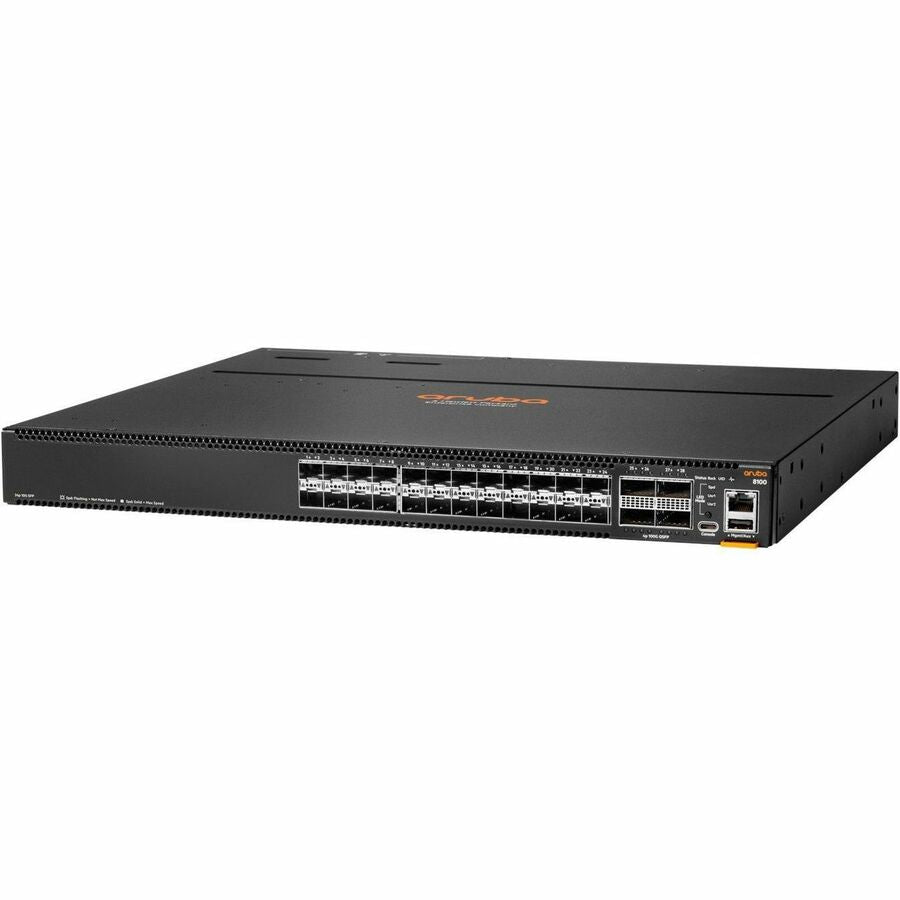

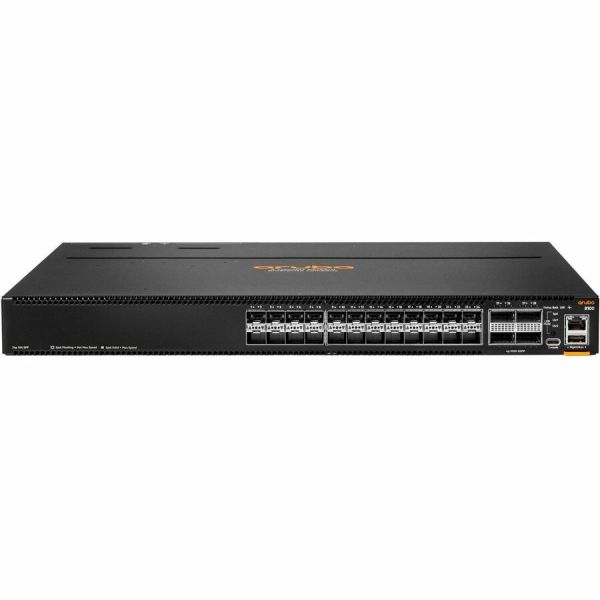

The HPE Aruba CX 8100 24XF4C Ethernet Switch (R9W94A) is designed for modern enterprise networks that demand scalable, secure, and cloud-managed switching. Featuring 24 high-speed 10GbE SFP+ ports and 4 100GbE QSFP28 uplinks, this Layer 3 switch provides up to 1.76 Tbps switching capacity, ideal for next-gen core or aggregation deployments.
Built on Aruba’s cloud-native ArubaOS-CX, this switch includes advanced telemetry, automation, and Layer 2/3 features. It supports PoE, optical fiber media, modular power, and is rack-mountable, cabinet, and surface mount capable. With native support for Aruba Central cloud management and Network Analytics Engine (NAE), it simplifies operations from day zero to full production.
Includes:
✔️ 3 Fans (JL714A)

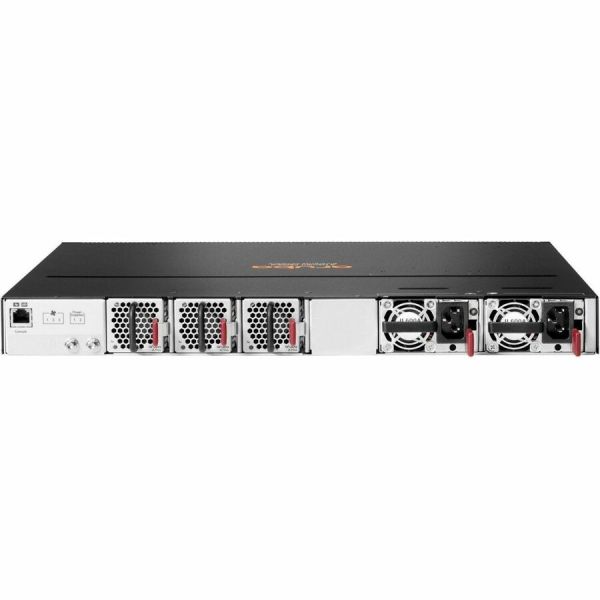

✔️ 2x AC Power Supplies (JL600A)
✔️ Lifetime Limited Warranty
| Specification | Details |
|---|---|
| Product Model | CX 8100 24XF4C |
| Part Number | R9W94A |
| Switching Capacity | Up to 1.76 Tbps |
| Layer Support | Layer 3 |
| Ports | 24 x 10GbE SFP+, 4 x 100GbE QSFP28 |
| Expansion Slots | Total 28 (SFP+, QSFP28, SFP, QSFP+) |
| Media Type Supported | Optical Fiber |
| Ethernet Standards | 10GBase-X, 100GBase-X, 40GBase-X, 1000Base-X |
| Networking Standards | IEEE 802.3/1 series incl. 802.3ae, 802.3bz, 802.1Q, 802.1AX and more |
| PoE Support | Yes (RJ-45) |
| Manageable | Yes |
| Modular Design | Yes |
| Power Consumption | 375 W |
| Power Supplies Included | 2 x AC (JL600A) |
| Mounting Options | Rack-mountable, Surface Mount, Cabinet Mount |
| Dimensions (H x W x D) | 1.7" x 17.4" x 16" |
| Weight | Approx. 17.99 lbs |
| Environmental Compliance | RoHS |
| Application | Campus, Data Center, Enterprise |
| Included Accessories | 3 x Fans (JL714A), 2 x AC Power Supplies (JL600A) |
| Warranty | Lifetime Limited |
