Description
The HPE Aruba CX 8100 48XF4C (R9W97A) is a next-generation Layer 3 switch purpose-built for high-performance, high-density, and cloud-centric campus core and data center aggregation deployments. Equipped with 48x 10G SFP+ and 4x 100G QSFP28 ports, this fully manageable switch provides up to 1.76 Tbps of switching capacity and supports advanced Layer 2/3 features, automation, and high availability.

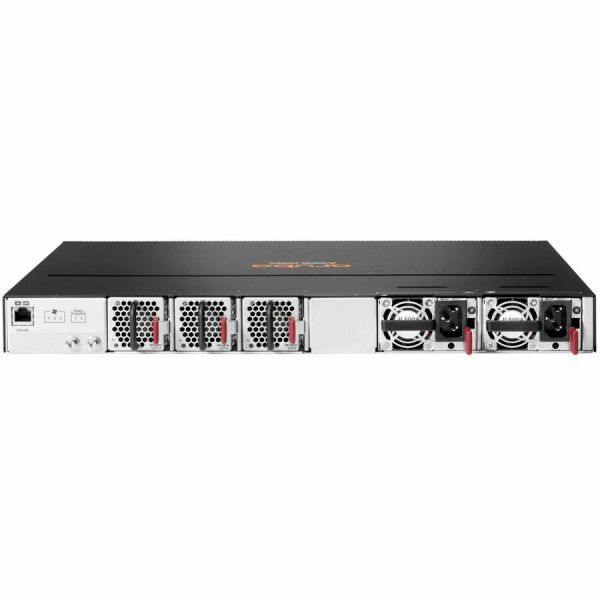

Powered by ArubaOS-CX and backed by the Aruba Network Analytics Engine (NAE), it simplifies management, troubleshooting, and scalability. This modular switch includes 3 fans and 2 AC power supplies and supports rack, cabinet, or surface mounting. Its compact 1U design is optimized for energy efficiency with 450W typical power consumption.
| Feature | Details |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Part Number | R9W97A |
| Series / Model | Aruba CX 8100 / 48XF4C |
| Switch Type | Managed Layer 3 Ethernet Switch |
| Total Ports | 52 |
| Port Configuration | 48 x 10G SFP+ |
| 4 x 100G QSFP28 | |
| Expansion Slot Type | SFP+, QSFP28 |
| Media Type Supported | Optical Fiber |
| Network Technology | 10GBase-X, 100GBase-X |
| Performance | 1.76 Tbps switching capacity |
| Mounting Options | Surface Mount, Cabinet Mount, Rack-Mountable |
| Dimensions (HxWxD) | 1.7" x 17.4" x 16" |
| Weight | 18.5 lbs |
| Power Consumption | 450W |
| Power Supplies | 2 x AC (Included) |
| Fans | 3 x Hot-Swappable Fans (Included) |
| Input Voltage | 120V / 230V AC |
| Frequency | 50/60 Hz |
| Operating System | ArubaOS-CX |
| Advanced Features | Dynamic Segmentation, NAE, QoS, Multicast, Security, Aruba Central support |
| Warranty | Lifetime Limited Warranty |
| TAA Compliant | Yes |
| Environment Compliance | RoHS |
| Product Condition | New and Factory Fresh |
| Shipping Weight | 10 lbs |
