Description

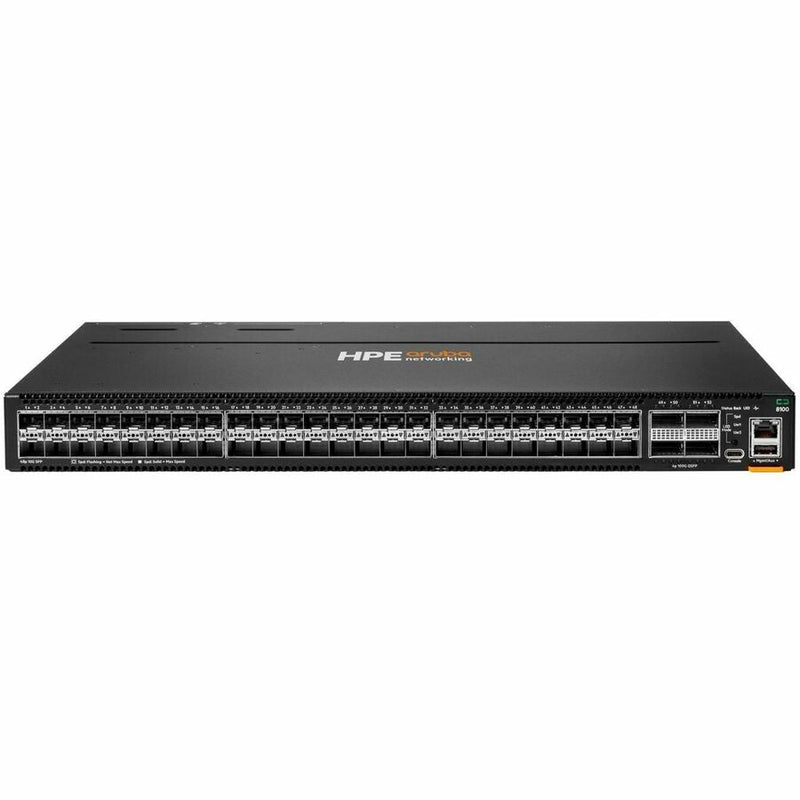

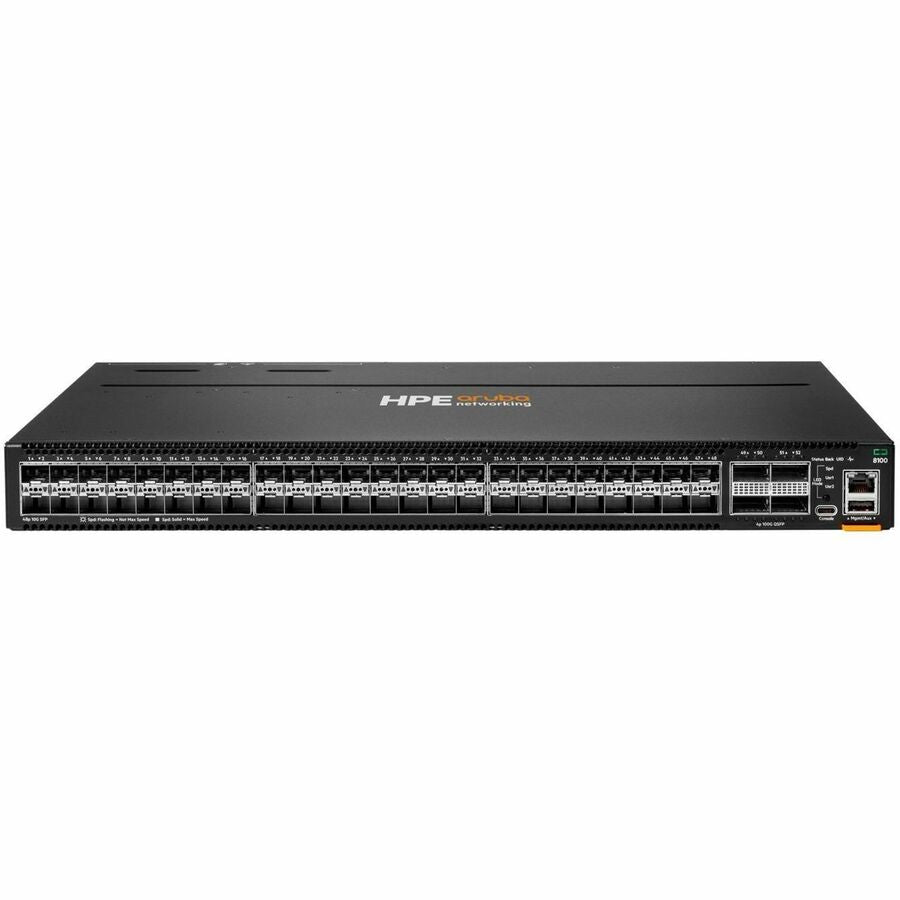

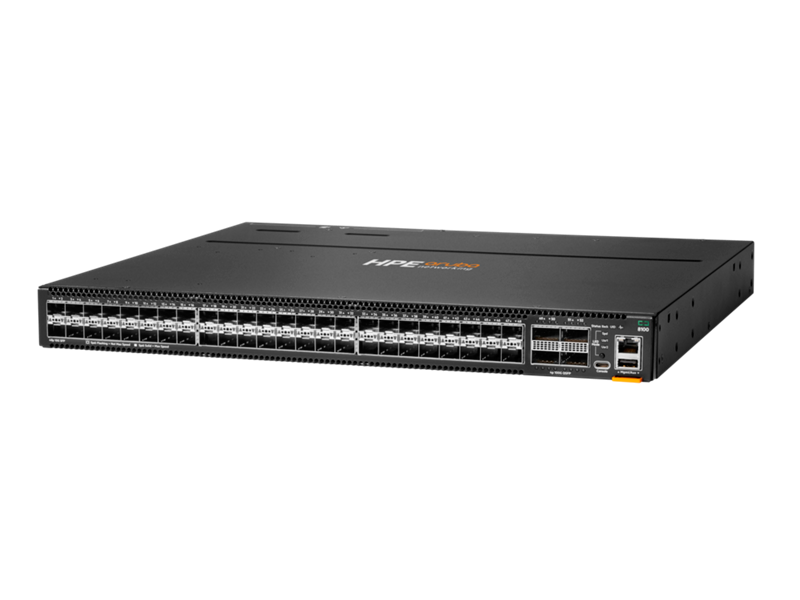

The HPE Aruba Networking CX 8100 48XF4C Switch (R9W91A#B2C) is a high-performance, enterprise-class Layer 3 managed switch built for next-generation campus core and data center aggregation deployments. Equipped with 48 x 1/10GbE SFP/SFP+ ports and 4 x 40/100GbE QSFP28 uplink ports, it delivers up to 1.76 Tbps of throughput in a compact 1U form factor.
Powered by Aruba’s modern ArubaOS-CX network operating system and designed with redundant fans and dual AC power supplies, this switch ensures high availability and resiliency. With robust L2/L3 features, advanced visibility through Aruba Network Analytics Engine (NAE), and support for Aruba Central cloud-based management, the CX 8100 series is ideal for scalable, secure, and automated network operations.
Key Features
-
48 x 10GbE SFP/SFP+ ports
-
4 x 40/100GbE QSFP28 uplink ports
-
Back-to-front airflow
-

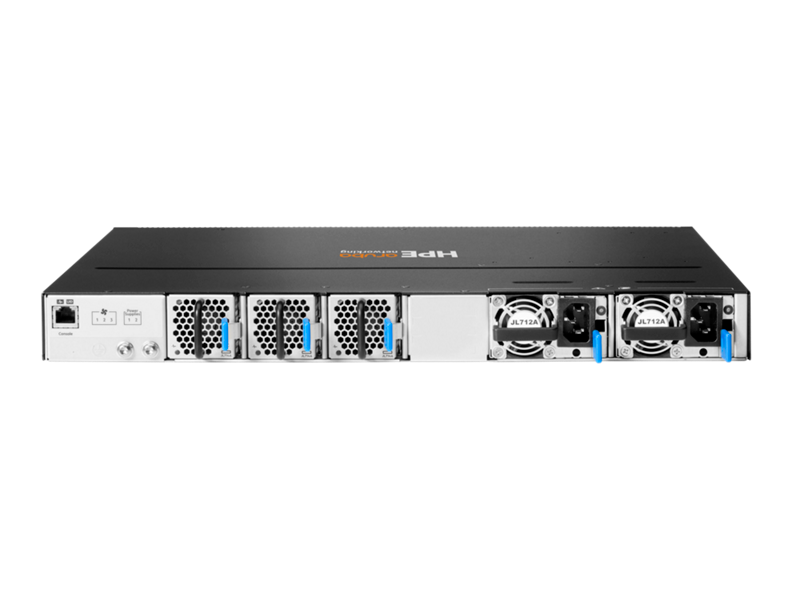

Includes 3 hot-swappable fans and 2 AC power supplies
-
Layer 3 managed switch with VSX redundancy
-
Powered by ArubaOS-CX with embedded Foundation license
-
Aruba Central-ready for cloud-based network management
| Specification | Details |
|---|---|
| Part Number | R9W91A#B2C |
| Series | HPE Aruba Networking CX 8100 Series |
| Ports | 48 x 1/10G SFP/SFP+4 x 40/100G QSFP28 |
| Airflow | Back-to-front |
| Form Factor | 1U rack-mountable |
| Performance | 1.76 Tbps switching capacity1,309 Mpps forwarding rate |
| Power Supplies | 2 x AC Power Supplies (hot-swappable, included) |
| Cooling | 3 x Fans (hot-swappable, included) |
| Software | ArubaOS-CX with Foundation LicenseUpgrade to Advanced |
| L3 Features | OSPF, BGP, VRF, IPv6, PIM, ACLs, QoS, VXLAN |
| Automation & APIs | REST APIs, Python scripting, Aruba Network Analytics Engine |
| Management | Aruba Central, CLI, Web GUI, SNMP, NetEdit |
| High Availability | VSX, VRRP, Redundant Fans and PSUs |
| Use Cases | Campus core/aggregation, Top-of-Rack (ToR), End-of-Row (EoR) |
| Dimensions (W x D x H) | Approx. 44 x 50 x 4.4 cm (actual may vary by model) |
