Description

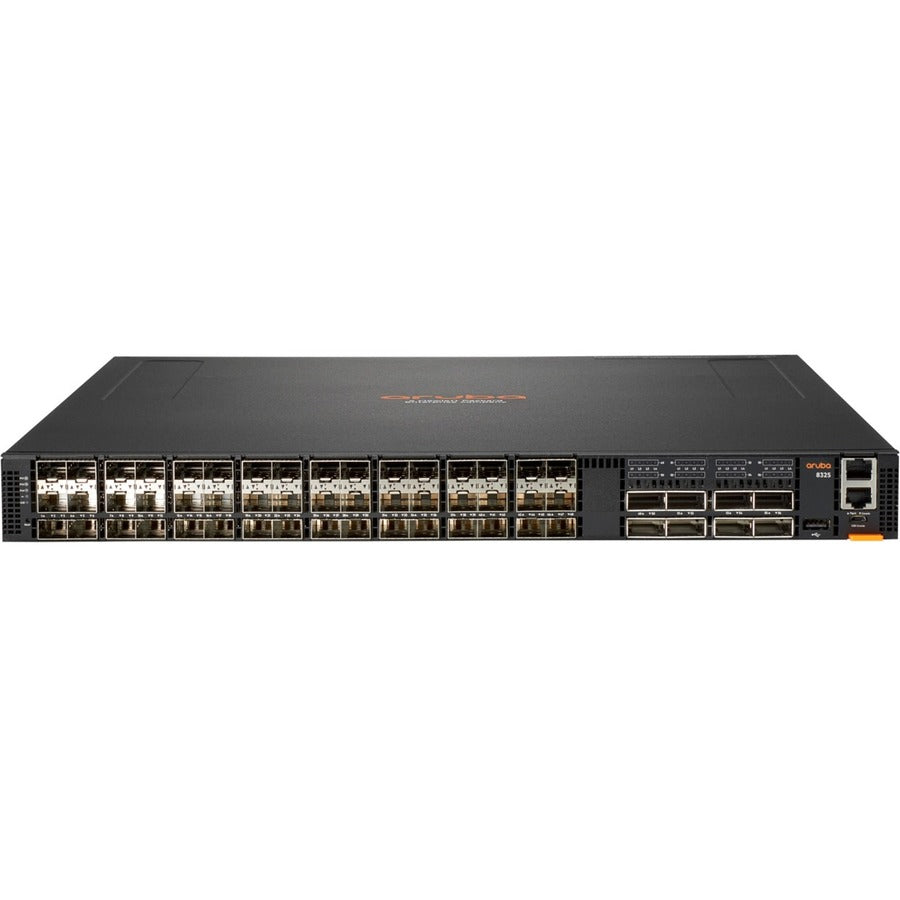

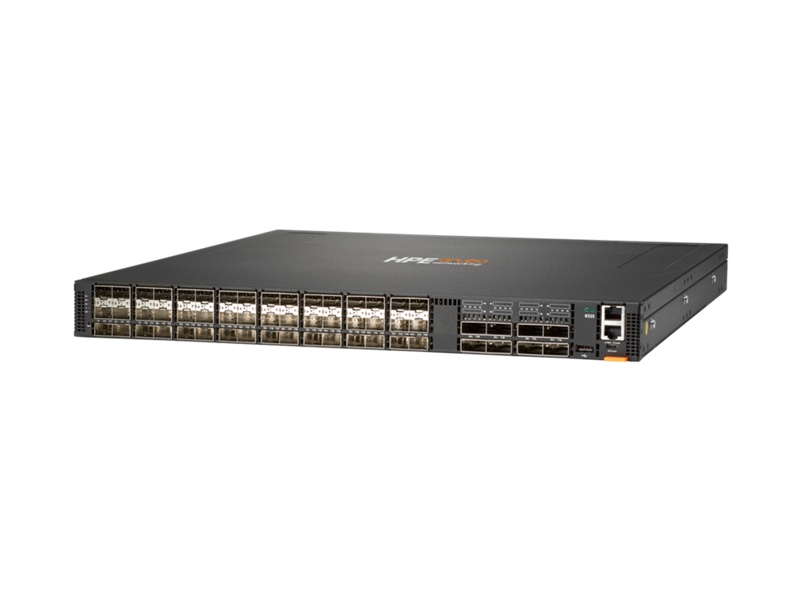

The HPE Aruba Networking CX 8325-48Y8C is a high-performance, fully programmable switch designed for core, aggregation, and data center deployments. With 48 ports of 25G SFP28 and 8 ports of 100G QSFP28, this compact 1U switch delivers 6.4 Tbps of switching capacity and up to 2000 Mpps throughput.

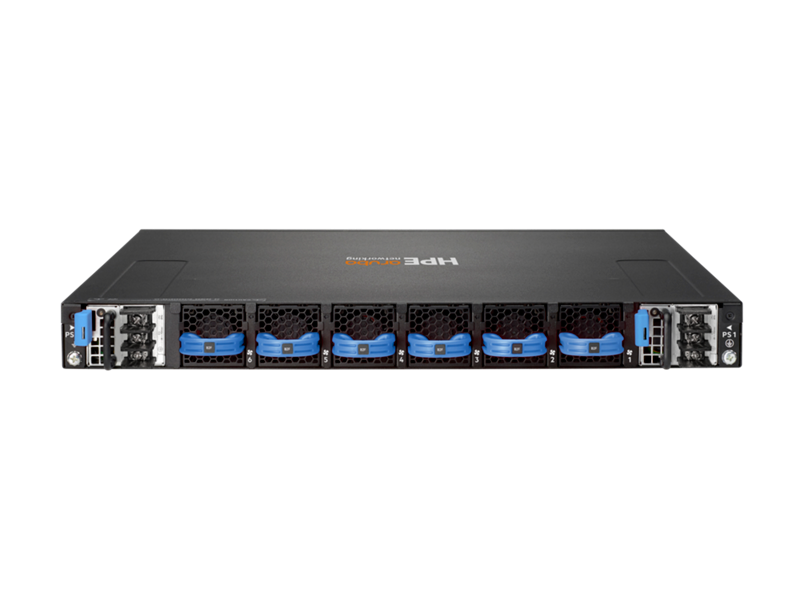

Engineered for the demands of mobile, cloud, and IoT networking, it runs on Aruba’s AOS-CX software platform—offering REST APIs, Python scripting, and a built-in Network Analytics Engine (NAE) for intelligent monitoring and automation. Designed with back-to-front airflow, redundant fans, and power supplies, it ensures high availability and resiliency for mission-critical environments.
| Specification | Details |
|---|---|
| Model Number | JL858A |
| Series | HPE Aruba Networking CX 8325 |
| Ports | 48x 25G SFP28, 8x 100G QSFP28 |
| Switching Capacity | 6.4 Tbps |
| Forwarding Rate | Up to 2000 Mpps |
| Packet Buffer | 32 MB |
| Processor | 2.2 GHz CPU |
| Memory | 16 GB RAM, 64 GB SSD, 8 GB Flash |
| Power Supply | 2x Field-replaceable, hot-swappable DC Power Supplies |
| Cooling | 6x Back-to-front Fans |
| Power Consumption | Max 496W |
| Management | CLI, SNMP v2c/v3, sFlow, RMON, PTP (Class C G.8275.1/.2) |
| Software Platform | AOS-CX with REST API, Python scripting, and Network Analytics |
| Dimensions (HxWxD) | 41.9 x 436.9 x 559.8 mm |
| Weight | 9.8 kg |
| Form Factor | 1U Rackmount |
| Compliance | TAA Compliant |
