Description

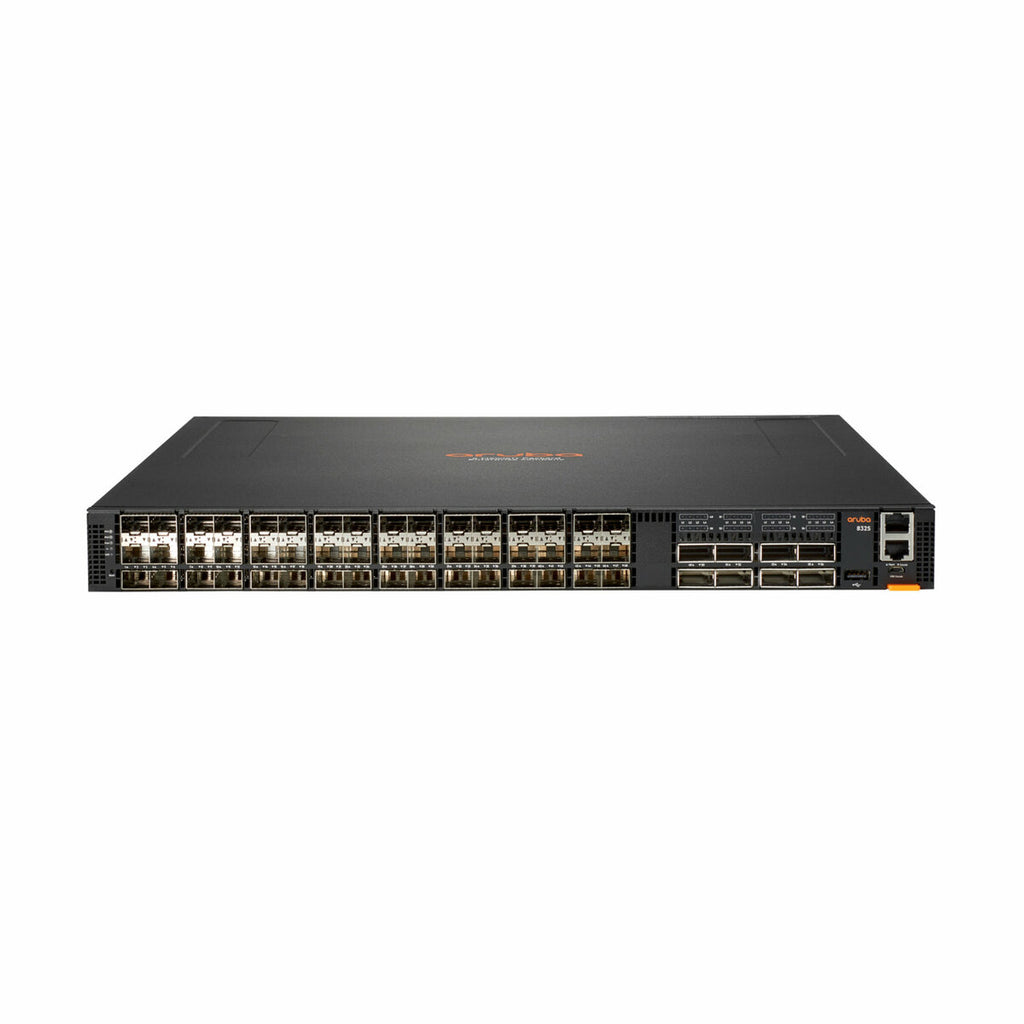

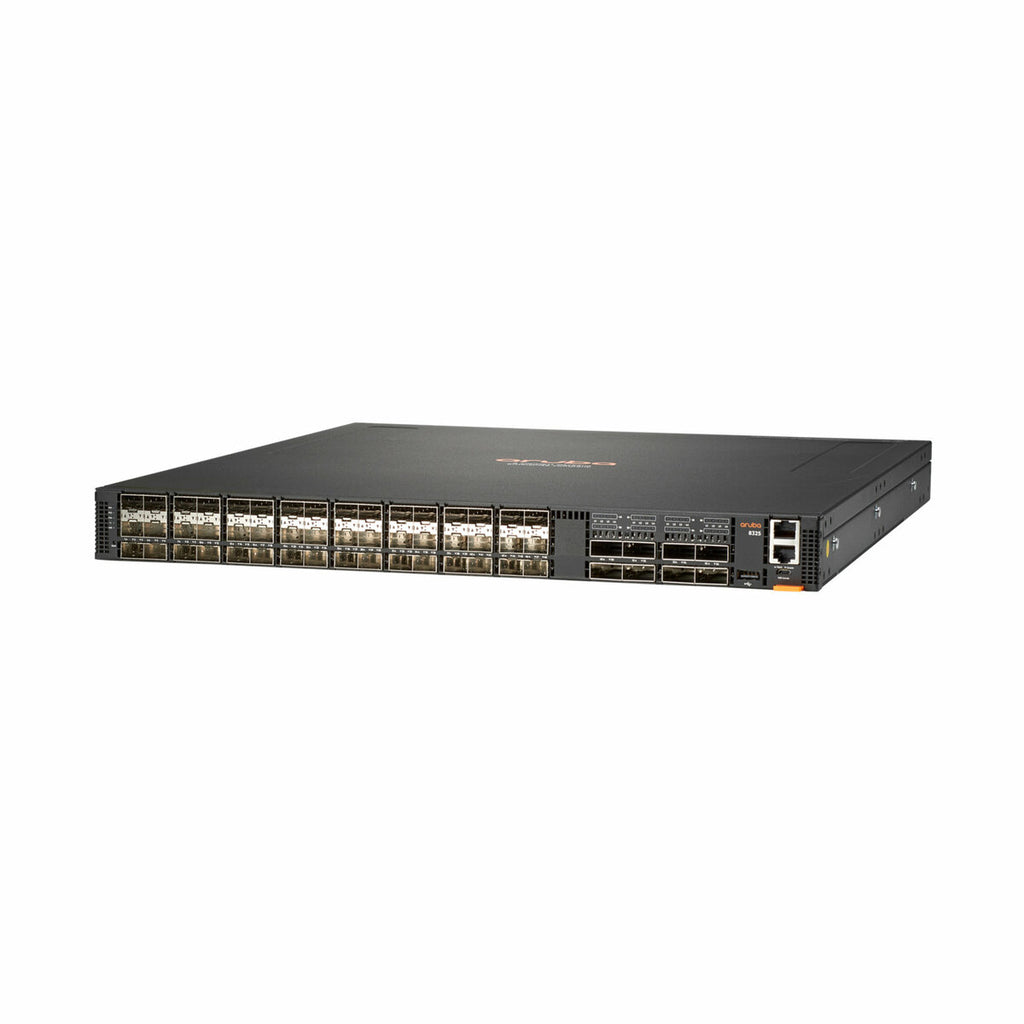

The HPE Aruba Networking CX 8325-48Y8C is a next-generation 1U switch designed for core/aggregation in campus networks and top-of-rack (ToR)/end-of-row (EoR) roles in data centers. Powered by the AOS-CX operating system, it enables advanced automation, high availability, and scalable performance across dynamic IT environments. This fully managed Layer 3 switch features 48x 10/25G SFP28 ports and 8x 40/100G QSFP28 ports, offering 6.4 Tbps switching capacity and up to 2000 Mpps throughput.
With support for advanced routing (BGP, OSPF, VXLAN, IPv6), built-in analytics via the Network Analytics Engine, redundant fans and power supplies, and front-to-back airflow, the CX 8325-48Y8C provides unmatched performance and operational simplicity. Ideal for edge compute, service provider, and cloud deployments.
| Category | Details |
|---|---|
| Model | HPE Aruba Networking CX 8325-48Y8C |
| Part Number | JL624A#B2C |
| Ports | 48 x 10/25G SFP28, 8 x 40/100G QSFP28 |
| Form Factor | 1U Rack-mountable |
| Airflow | Front-to-back |
| Switching Capacity | 6.4 Tbps |
| Throughput | Up to 2000 Mpps |
| Software | ArubaOS-CX with REST APIs, Python scripting |
| Network Protocols | BGP, OSPF, VRF, VXLAN, IPv4/IPv6, PIM, IGMP, MSTP, RSTP, STP |
| Jumbo Frame Support | 9KB |

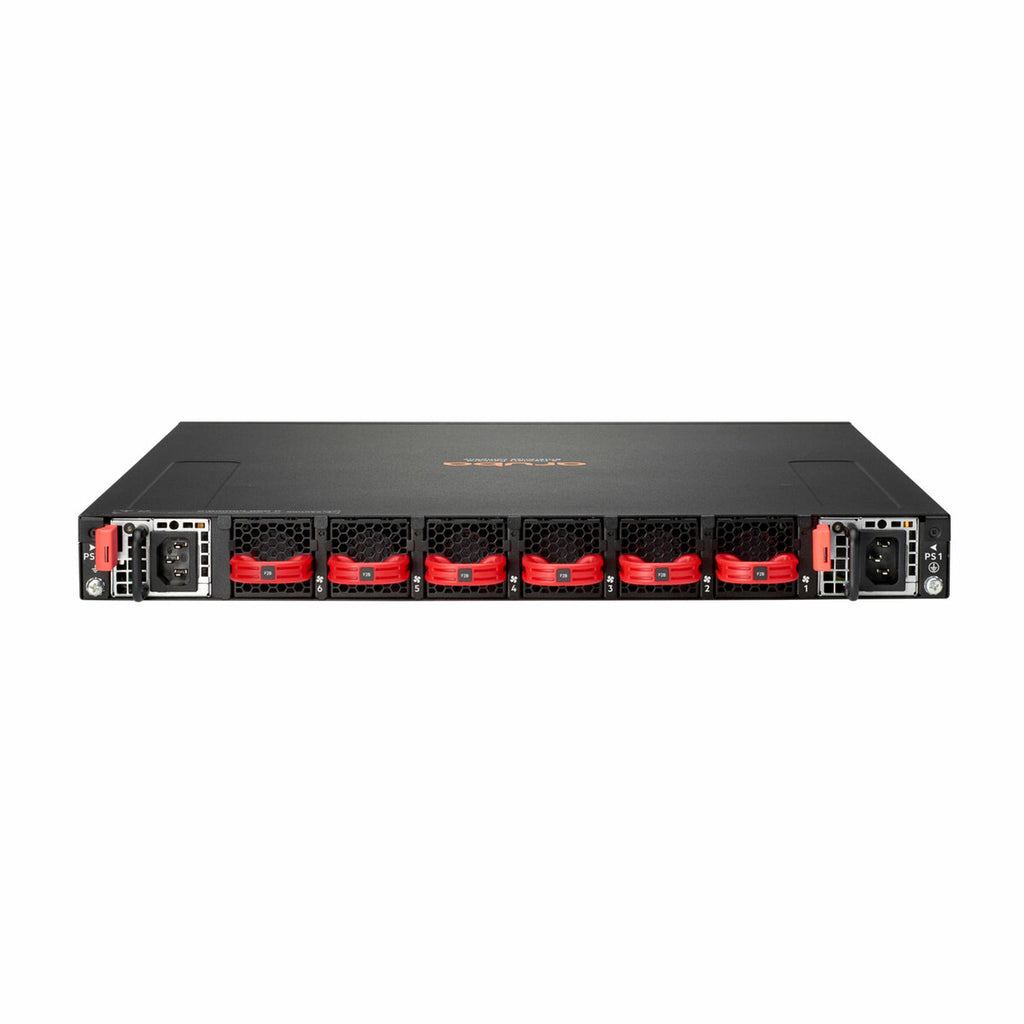

| Redundancy | Dual hot-swappable PSUs & fans |
| Memory | 16 GB RAM, 64 GB SSD, 8 GB Flash |
| Power Supply | 2 x 650W Front-to-Back (JL632A) |
| Power Consumption | Max: 586W / Idle: 209W |
| Compliance | TAA Compliant, RoHS, WEEE |
| Security & Management | RADIUS, TACACS+, SSH, SNMP v2/v3, sFlow, NAE |
| Weight | 22.05 lbs (10 kg) |
| Dimensions (W x D x H) | 17.3 x 21.1 x 1.7 in |
