Description

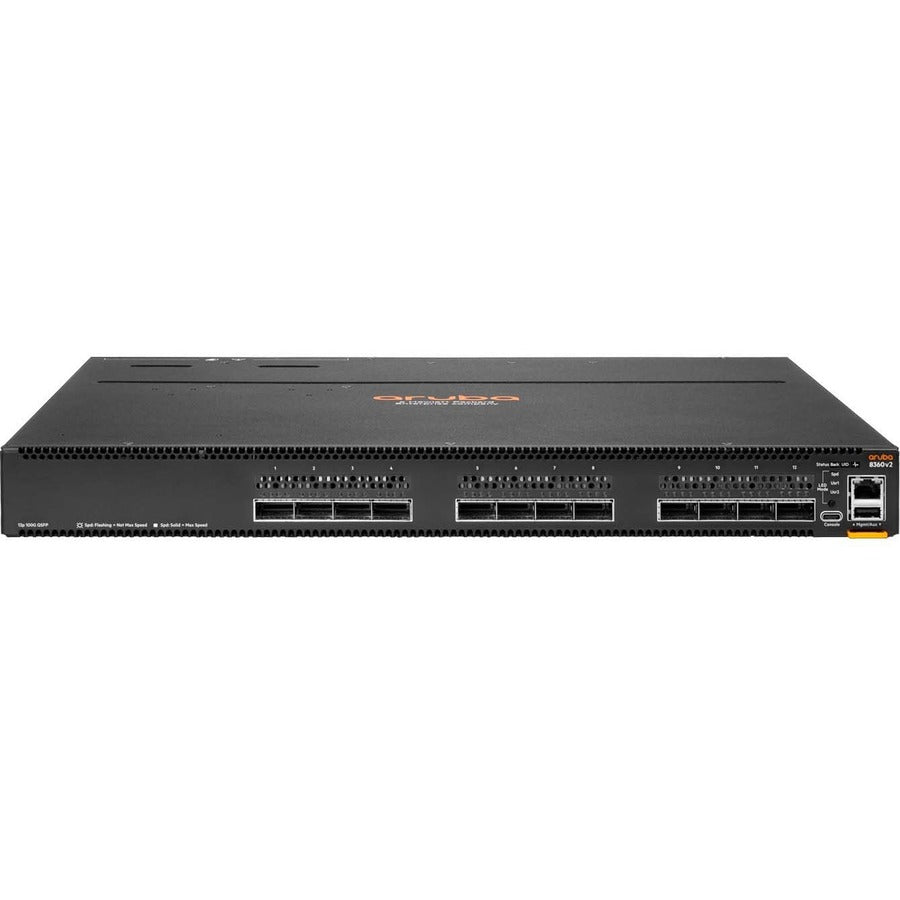

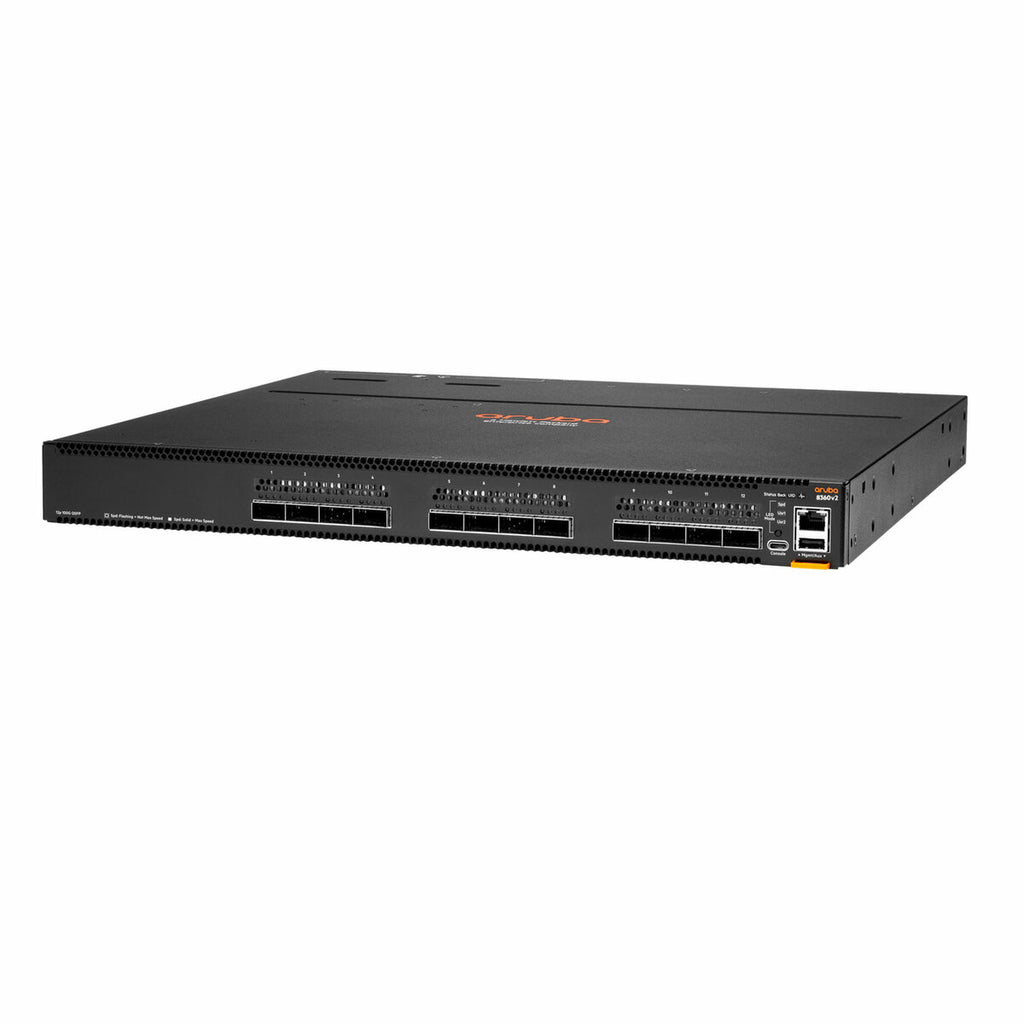

The HPE Aruba Networking CX 8360-12C v2 is a next-generation, high-performance Layer 3 switch designed for modern enterprise and data center environments. With 12 high-speed 100G QSFP+/QSFP28 ports, it provides up to 2.4 Tbps of switching capacity, optimized for demanding applications across mobile, cloud, and IoT landscapes.
Engineered for core and aggregation layers, this compact 1U switch supports full Layer 3 routing, advanced telemetry via the Aruba Network Analytics Engine (NAE), and high-availability features such as VSX and hot-swappable redundant power supplies and fans.
Powered by Aruba’s modular AOS-CX operating system, it ensures consistent configuration, zero-downtime upgrades, and simplified automation. Ideal for customers migrating from 10/40GbE to 25/100GbE networks with the added security of MACsec support.
| Specification | Details |
|---|---|
| Product Code | JL709C#B2B |
| Device Type | Managed Layer 3 Switch |
| Form Factor | Rack-mountable (1U), Back-to-Front Airflow |
| Ports | 12 x 40/100GbE QSFP+/QSFP28 |
| Breakout Support | Optional 4x10G/25G breakout cables |
| Switching Capacity | 2.4 Tbps |
| Forwarding Rate | 2,678 Mpps |
| Jumbo Frame Support | 9 KB |
| Routing Protocols | OSPF, BGP-4, IGMP, VRRP, Static IPv4/IPv6, PIM-SM, BFD |
| Security | MACsec, EAP-TLS, RADIUS, TACACS+, SSHv2 |
| Management Interfaces | 1 x RJ-45 Serial Console, 1 x USB-C Console, 1 x RJ-45 Management Port, 1 x USB-A |
| OS | Aruba AOS-CX with Network Analytics Engine (NAE) |
| RAM / Flash / Storage | 16 GB RAM / 32 GB Flash / 32 MB Packet Buffer |
| CPU | Quad-core 1.8 GHz 64-bit |
| Power Supply | Dual AC, hot-swappable, redundant (included) |
| Power Consumption | 120W (idle), 325W (max), 1,280 BTU/hr heat dissipation |
| Included Accessories | 3 x Hot-Swappable Fans, Rack Mount Kit |
| Dimensions (W x D x H) | 17.4 x 16.0 x 1.73 in |
| Weight | 17.66 lbs |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Humidity | 15–95% (non-condensing) |
| Certifications | FCC Class A, UL 60950-1, EN 62368-1, CE, VCCI, CISPR, RoHS |
| Warranty | Limited Lifetime Warranty |
