Description

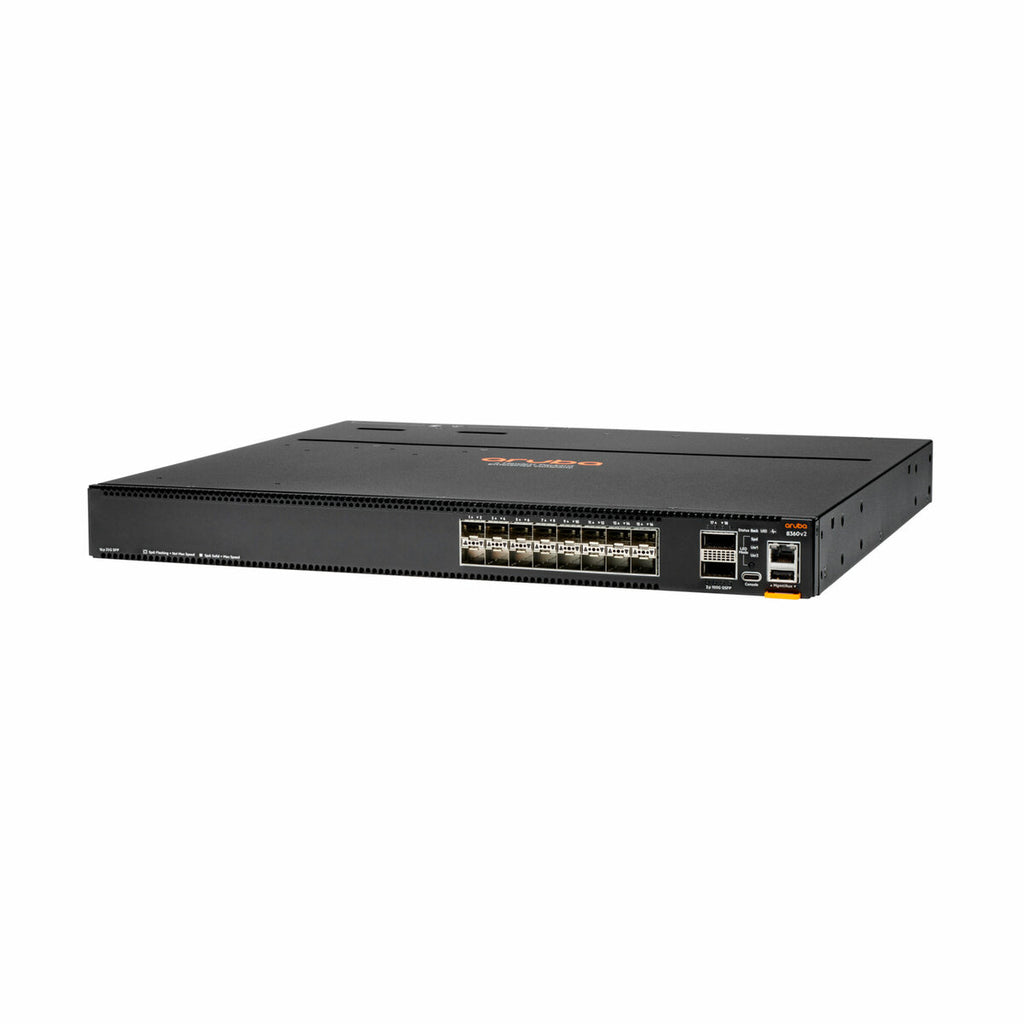

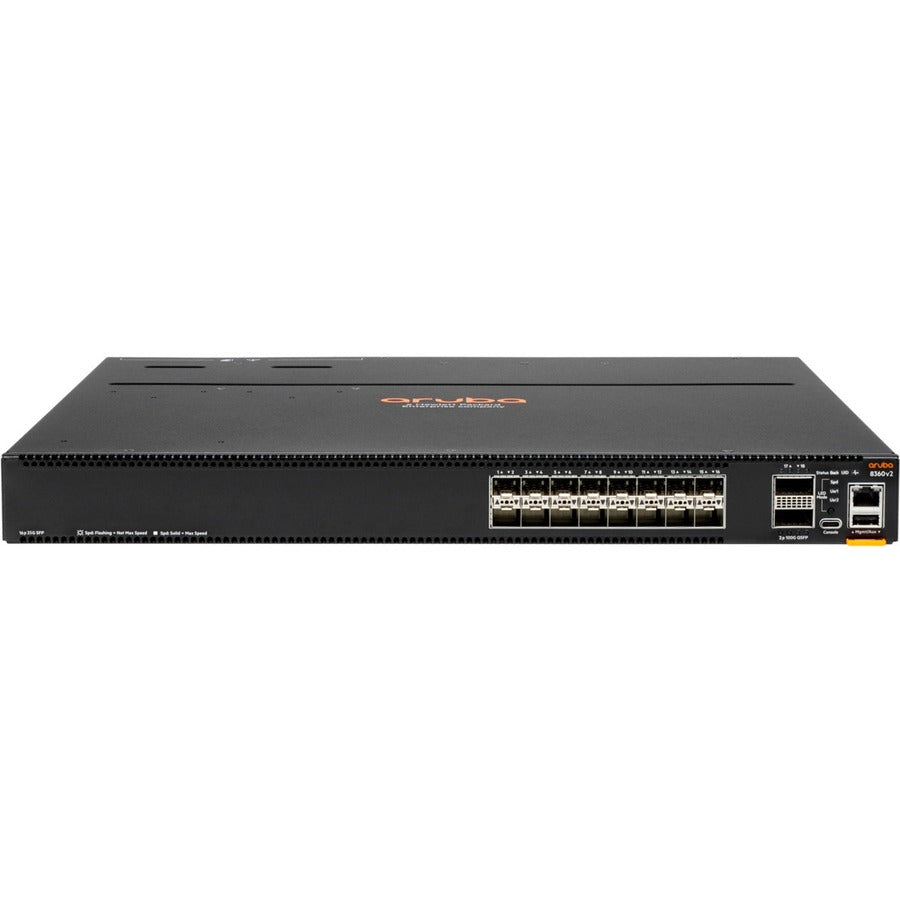

The HPE Aruba Networking CX 8360-16Y2C v2 is a next-generation, compact 1U data center switch designed for high-performance aggregation and core deployments in enterprise campuses and virtualized cloud environments. This 16-port 25GbE SFP28 and 2-port 100GbE QSFP28 switch delivers up to 4.8 Tbps of switching capacity and supports MACsec encryption, VSX high availability, and advanced telemetry with Aruba’s Network Analytics Engine.
Running on the ArubaOS-CX operating system, the switch enables automation, granular visibility, and resiliency. With support for REST APIs, Python scripting, and real-time stateful monitoring, this model is ideal for businesses scaling from 10GbE/40GbE to 25GbE/100GbE.
| Feature | Specification |
|---|---|
| Model Number | JL703C#B2B |
| Switching Capacity | 4.8 Tbps |
| Forwarding Rate | 2.678 Mpps |
| Ports | 16x 1/10/25G SFP/SFP+/SFP28, 2x 40/100G QSFP+/QSFP28 |
| Form Factor | 1U Rack-mountable |
| MACsec Support | On 4x 25G and 2x 100G ports |
| Memory & Storage | 16 GB RAM, 32 GB Flash, 32 MB Packet Buffer |
| Processor | 1.8 GHz 4-core 64-bit CPU |
| Power Supply | Dual hot-swappable AC PSUs (included) |
| Power Consumption | 110W idle / 325W max |
| Cooling | 3x Hot-swappable fan modules (back-to-front airflow) |
| Dimensions (WxDxH) | 17.4 x 22.0 x 1.7 in |
| Weight | 17 lbs |
| Operating Temp. | 0°C to 45°C (32°F to 113°F) |
| OS | ArubaOS-CX |
| Advanced Features | Aruba VSX, NAE (Network Analytics Engine), REST API, sFlow, VRF, QoS, PBR, EVPN, VXLAN |
| Standards Compliance | IEEE 802.3, IEEE 802.1, RoHS, EN 55032 Class A, FCC Part 15 Class A, and more |
| Warranty | Limited Lifetime Warranty |
