Description

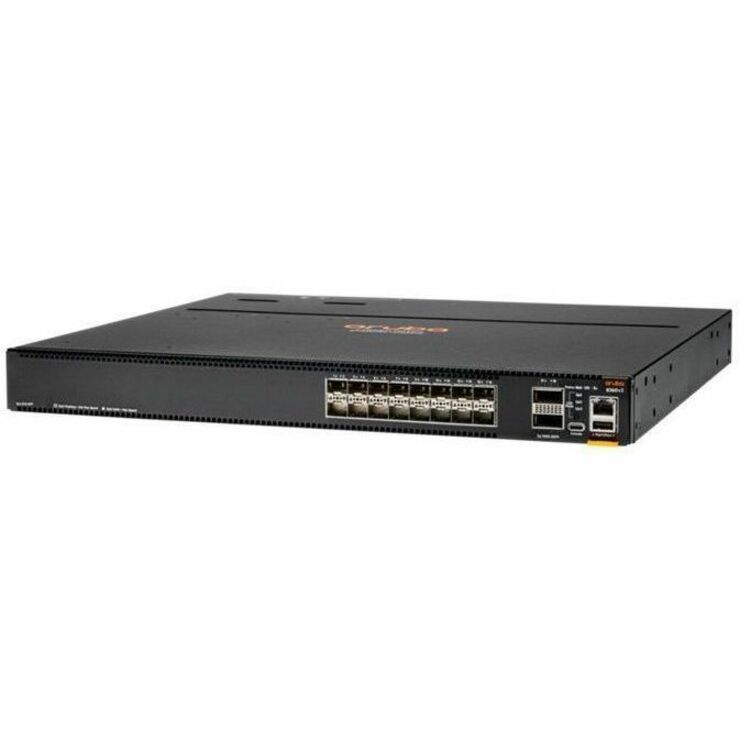

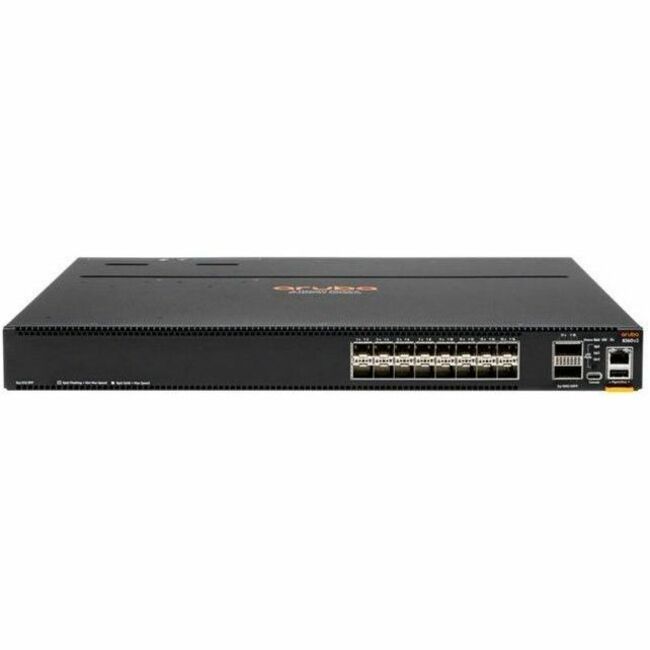

The HPE Aruba Networking CX 8360v2 8360-16Y2C Ethernet Switch (JL702C#ABA) is a high-performance, enterprise-grade switch engineered for core, aggregation, and dynamic data center environments. Delivering up to 4.8 Tbps switching capacity, this 1U switch supports 16 x 25GbE SFP28 and 2 x 100GbE QSFP28 ports, providing secure, flexible, and ultra-fast connectivity.
Built on Aruba’s powerful AOS-CX network operating system and ASIC architecture, the 8360v2 enables enhanced visibility, advanced telemetry, and automation capabilities. It supports MACsec for encrypted traffic, full Layer 3 features, and complies with TAA, RoHS, and other environmental standards.
This compact, modular switch is ideal for businesses transitioning from 10GbE to 25GbE or from 40GbE to 100GbE networks. It comes with 3 fans, 2 AC power supplies, and includes a limited lifetime warranty for long-term value and reliability.
| Specification | Details |
|---|---|
| Product Model | JL702C#ABA |
| Series | Aruba CX 8360v2 |
| Product Name | 8360-16Y2C Ethernet Switch |
| Total Ports | 18 (16 x 25GbE + 2 x 100GbE) |
| Port Types | 16 x SFP28, 2 x QSFP28 |
| Network Technology | 25GBase-X, 100GBase-X |
| Media Type Supported | Optical Fiber |
| Layer Supported | Layer 3 |
| Manageable | Yes |
| Switching Capacity | Up to 4.8 Tbps |
| MACsec Encryption | Supported (10GbE, 25GbE) |
| Mounting Options | Rack, Cabinet, Surface Mount |
| Form Factor | 1U |
| Dimensions (HxWxD) | 1.7" x 17.4" x 16" |
| Weight | Approx. 17 lbs |
| Power Consumption | 325 W |
| Power Supplies | 2 AC (included), Redundant Supported |
| Input Voltage | 120–230V AC, 47–63 Hz |
| TAA Compliant | Yes |
| Environmental Compliance | RoHS, WEEE |
| Application | Data Center, Enterprise Core, Network Aggregation |
| Included Accessories | 3 Fans, 2 AC Power Supplies |
| Product Condition | New and Factory Fresh |
| Warranty | Limited Lifetime Warranty |
| Shipping Weight | 1 lb (packaged) |
