Description

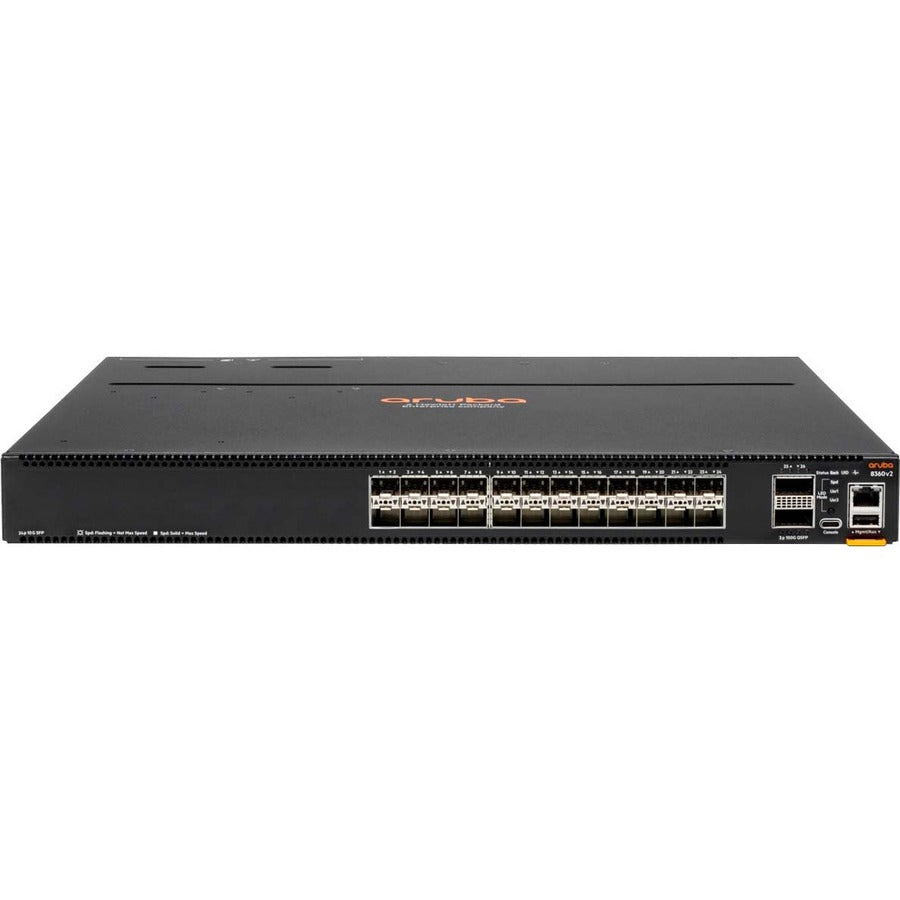

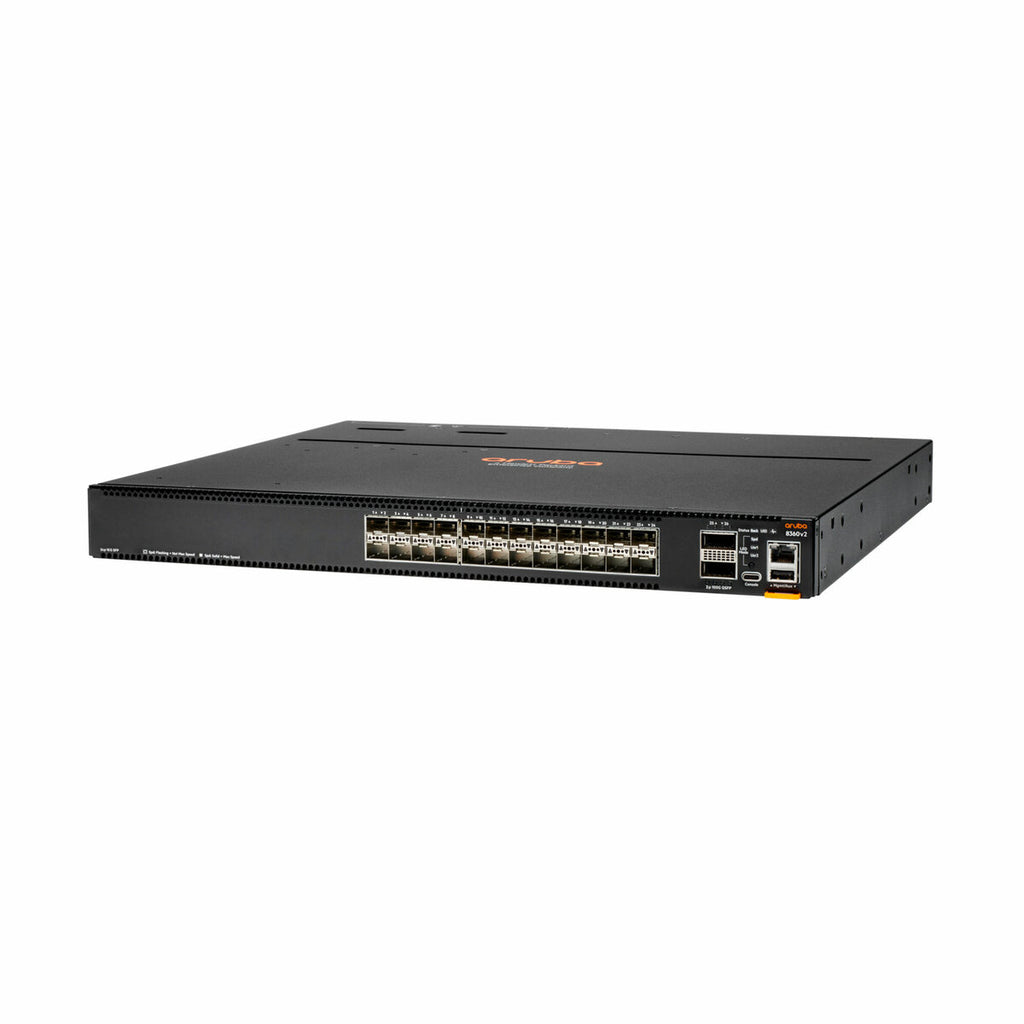

The HPE Aruba Networking CX 8360-24XF2C v2 is a high-performance Layer 3 managed switch designed for modern enterprise campus cores and aggregation, as well as dynamic data center environments. Featuring 24 ports of 1/10GbE SFP/SFP+ and 2 high-speed 40/100GbE QSFP+/QSFP28 uplinks, this compact 1U switch provides up to 880 Gbps of switching capacity and advanced routing capabilities including BGP, OSPF, and MPLS.
Built with the Aruba AOS-CX operating system and powered by the Network Analytics Engine (NAE), the CX 8360 v2 series supports intelligent automation, continuous state synchronization, and cloud-native telemetry. It features back-to-front airflow, dual redundant power supplies and fans, and MACsec encryption on select ports for secure connectivity. Perfect for evolving 10G/25G/100G networks.
| Feature | Specification |
|---|---|
| Product Model | HPE Aruba Networking CX 8360-24XF2C v2 |
| Part Number | JL711C#ABA |
| Ports | 24 x 1/10GbE SFP/SFP+2 x 40/100GbE QSFP+/QSFP28 |
| Airflow | Back-to-front |
| Form Factor | 1U Rack-mountable |
| Switching Capacity | 880 Gbps |
| Layer Support | Layer 3 |
| MACsec | Supported on selected ports |
| CPU | 1.8 GHz 4-core 64-bit |
| RAM | 16 GB |
| Flash Storage | 32 GB |
| Packet Buffer | 32 MB |
| Management Interfaces | RJ45 serial & USB-C console, RJ45 management, USB-A |
| Routing Protocols | Static IPv4/IPv6, RIPv2, RIPng, OSPF, OSPFv3, BGP-4, MP-BGP, ECMP, MPLS, GRE |
| Power Supplies | 2 field-replaceable, hot-swappable AC (included) |
| Max Power Consumption | 325W |
| Idle Power | 120W |
| Heat Dissipation | 1,280 BTU/hr |
| Dimensions (W x D x H) | 17.4 x 16.0 x 1.73 in |
| Weight | 17.80 lb |
| Operating System | Aruba AOS-CX |
| Analytics & Automation | Aruba Network Analytics Engine (NAE), REST APIs, Python scripting |
| Redundancy & Availability | VSX (Virtual Switching Extension), microservices architecture |
