Description

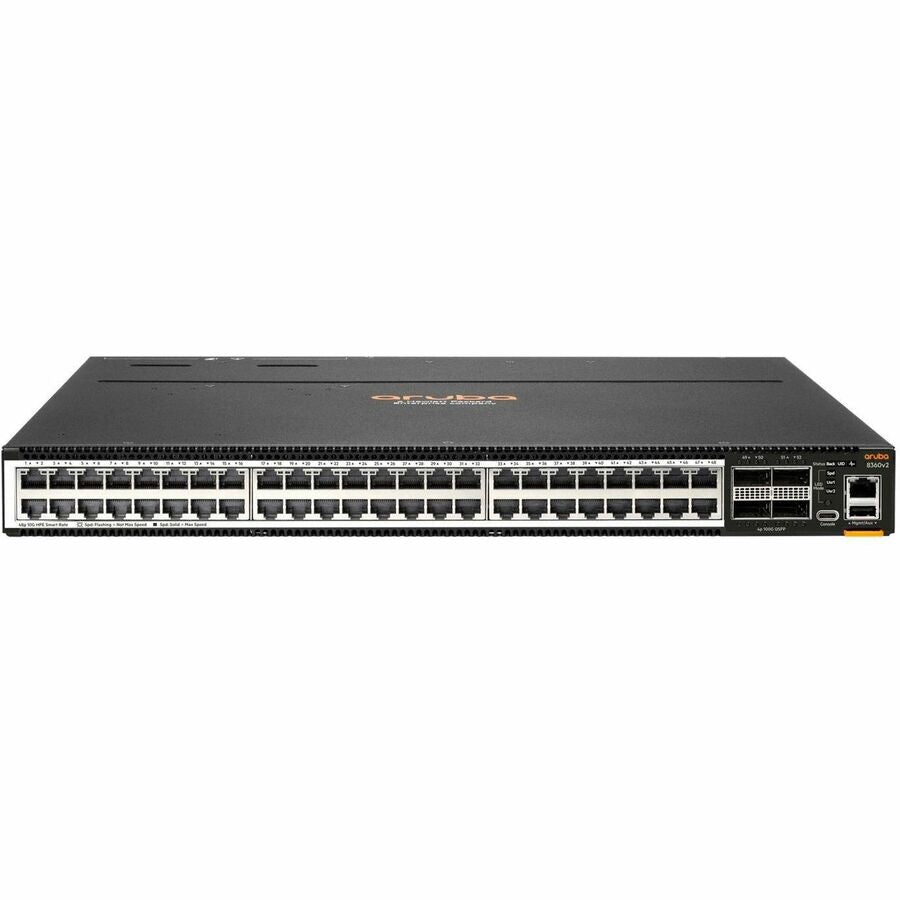

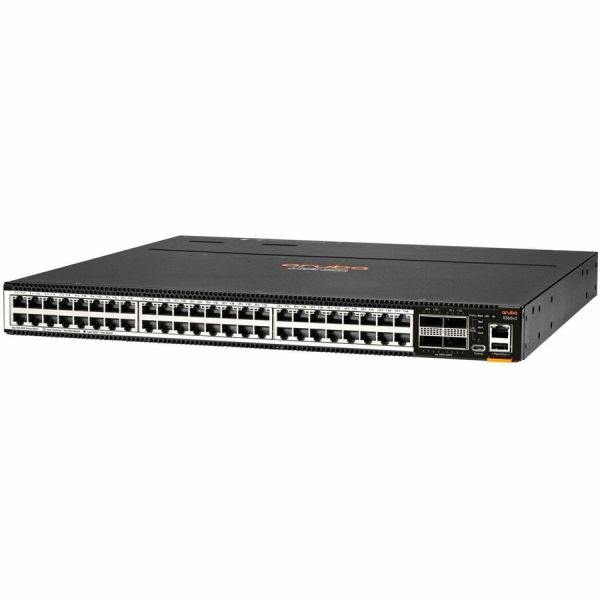

The HPE Aruba Networking CX 8360v2-48XT4C Ethernet Switch is engineered for next-gen data center and campus core networks. Designed to meet high-performance requirements, this 1U rack-mountable switch features 48 x 10GBase-T ports and 4 x 100G QSFP28 expansion slots, offering modular flexibility and efficient aggregation. With a switching capacity of up to 4.8 Tbps, it supports secure, high-density Layer 3 switching with advanced features like MACsec encryption, TAA compliance, and a lifetime limited warranty. The switch is energy-efficient with 500W power consumption and supports both optical fiber and twisted pair media.
Ideal for modern enterprises migrating from 1/10GbE to 25/50/100GbE, the CX 8360v2-48XT4C delivers high availability, scalability, and seamless manageability.
| Category | Details |
|---|---|
| Brand | HPE Aruba Networking |
| Product Series | CX 8360v2 |
| Model Number | 8360v2-48XT4C |
| Part Number | JL707C#B2B |
| Form Factor | 1U Rack-mountable |
| Ports | 48 x 10GBase-T, 4 x 100G QSFP28 |
| Port/Expansion Slot Details | 4 x 100GbE QSFP28 expansion slots |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Network Technology | 10GBase-T, 100GBase-X |
| Ethernet Standards | IEEE 802.3ae, 802.3an, 802.3ba, 802.3by, and more |
| Layer Supported | Layer 3 |
| Manageable | Yes |
| Modular Design | Yes |
| Redundant Power Supply | Supported (2 x PSU included) |
| Power Consumption | 500W |
| Power Frequency | 50/60 Hz |
| Mounting Kit | Post Rack Kit (included) |
| Cooling | 3 x Fans (included) |
| Application/Usage | Data Center, Enterprise, Business |
| TAA Compliant | Yes |
| Environmental Compliance | RoHS |
| Warranty | Limited Lifetime Warranty |
| Shipping Weight | 13 lbs (approx.); unit weight: 18.85 lbs |
| Dimensions (H x W x D) | 1.7" x 17.4" x 16" |
