Description

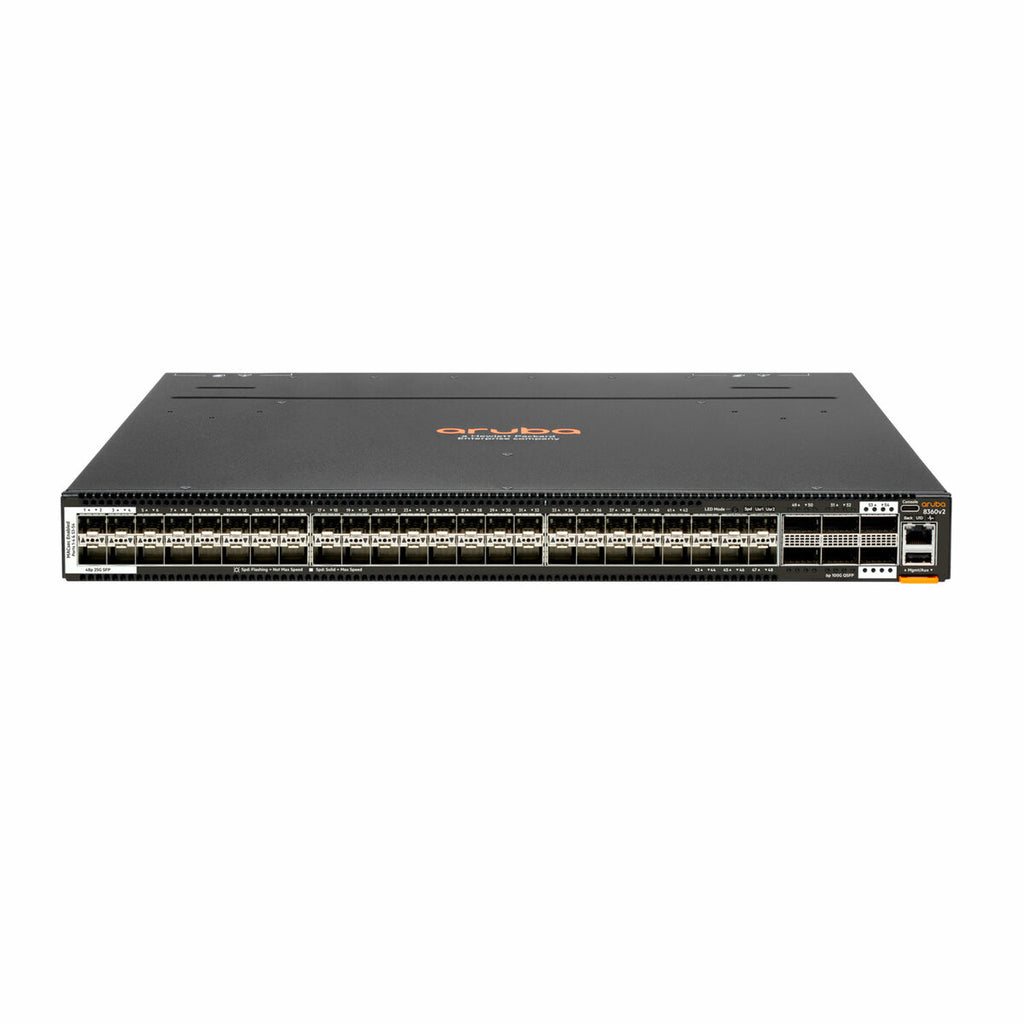

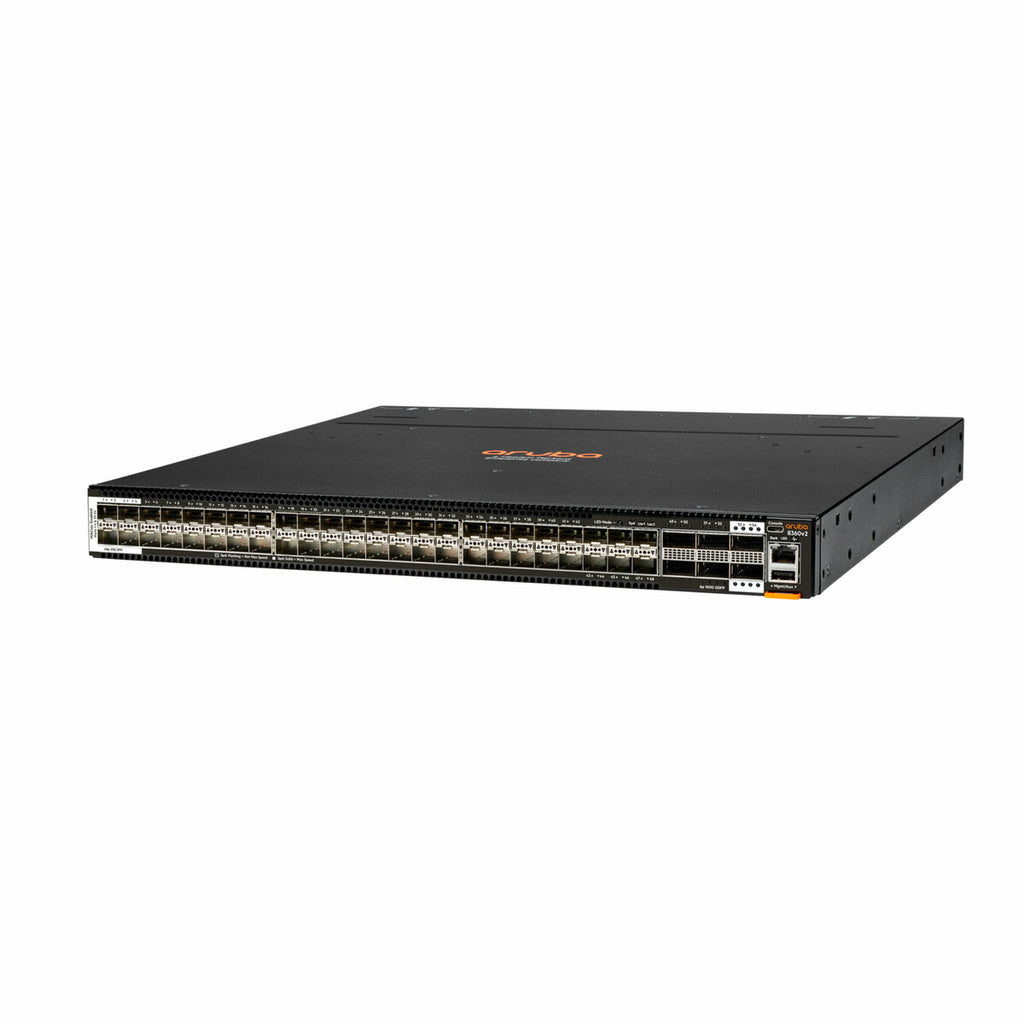

The HPE Aruba Networking CX 8360-48Y6C v2 is a next-generation, high-performance managed switch designed for enterprise core, aggregation, and cloud-centric environments. With 48 SFP28 ports for 1/10/25GbE, 6 QSFP+/QSFP28 ports for 40/100GbE uplinks, and advanced MACsec encryption capabilities, this compact 1U switch offers unmatched scalability, security, and reliability.
Purpose-built for modern data centers and enterprise campus backbones, the CX 8360 v2 Series integrates the powerful AOS-CX operating system with embedded Network Analytics Engine (NAE) to deliver AI-powered monitoring and automation. Advanced Layer 3 routing, high availability with VSX, and modular cloud-native architecture make it an ideal solution for dynamic, high-throughput networks.
| Specification | Details |
|---|---|
| Model | HPE Aruba Networking CX 8360-48Y6C v2 |
| Part Number | JL705C#B2B |
| Form Factor | Rack-mountable, 1U |
| Switching Capacity | 4.8 Tbps |
| Forwarding Rate | 2,678 Mpps |
| Ports | 44x 1/10/25GbE SFP/SFP+/SFP284x 10/25GbE with MACsec6x 40/100GbE QSFP+/QSFP28 (2 MACsec-enabled) |
| MACsec Support | Yes, on 4x 25GbE and 2x 100GbE ports |
| Processor | 1.8 GHz Quad-Core 64-bit CPU |
| Memory | 16 GB RAM, 32 GB Flash, 32 MB Packet Buffer |
| Layer 3 Routing Protocols | Static, RIP/RIPv2, OSPFv2/v3, BGP-4, MP-BGP with IPv6, PBR, ECMP, GRE, MPLS |
| Management Interfaces | RJ45 Console, USB-C Console, USB Type-A, RJ45 Ethernet Port |

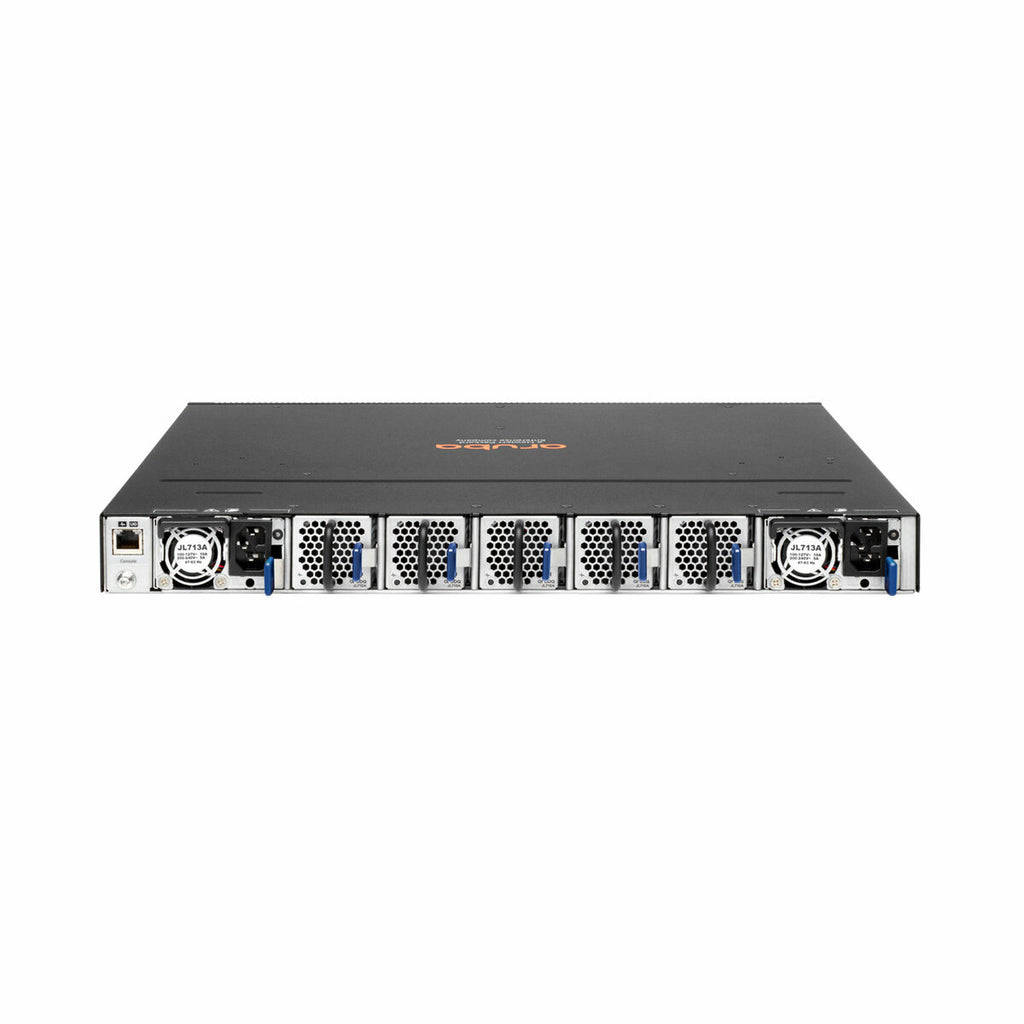

| Power Supply | Dual field-replaceable hot-swappable AC PSUs |
| Input Voltage | 100–127 VAC / 200–240 VAC, 10A / 5A |
| Power Consumption | Max: 725WIdle: 230W |
| Heat Dissipation | 1,450 BTU/hr |
| Dimensions (W x D x H) | 17.4 x 22.0 x 1.73 in (44.2 x 55.9 x 4.4 cm) |
| Weight | 23.65 lb (10.73 kg) |
| Operating System | ArubaOS-CX |
| Analytics Engine | HPE Aruba Networking Network Analytics Engine (NAE) |
| High Availability | VSX with redundant control plane, fans, and PSUs |
| Automation Support | REST APIs, Python Scripting, Aruba Fabric Composer |
