Description

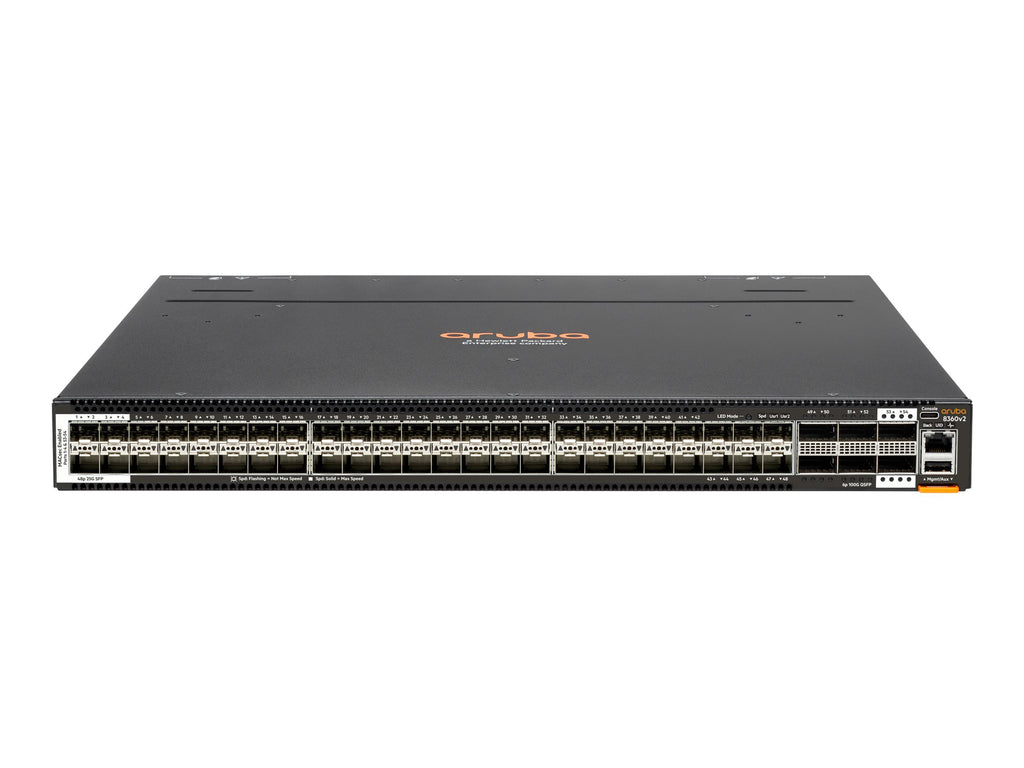

The HPE Aruba Networking CX 8360-48Y6C v2 is a next-generation Layer 3 managed switch designed for data center and campus core/aggregation environments. With 48 high-performance 1/10/25G SFP+/SFP28 ports, 6 40/100G QSFP+/QSFP28 uplinks, and MACsec security support, this 1U switch delivers up to 4.8 Tbps switching capacity and 2.678 Mpps forwarding performance. It includes front-to-back airflow, redundant hot-swappable fans and power supplies, and is powered by ArubaOS-CX with the Network Analytics Engine (NAE) for intelligent, always-on network operations.
Designed to simplify complex IT environments, this switch enables automation, advanced telemetry, and high availability with VSX architecture, making it ideal for future-ready enterprises transitioning to higher-speed infrastructure.
| Specification | Details |
|---|---|
| Model | HPE Aruba CX 8360-48Y6C v2 (JL704C#ACC) |
| Device Type | Layer 3 Managed Switch |
| Ports | 44 x 1/10/25G SFP+/SFP28, 4 x 10/25G SFP28 (MACsec), 4 x 40/100G QSFP28, 2 x 40/100G QSFP28 (MACsec) |
| Airflow | Front-to-back |
| Rack Mountable | Yes (1U, kit included) |
| Switching Capacity | 4.8 Tbps |
| Forwarding Rate | 2.678 Mpps |
| MACsec Support | Yes, on 4 x 25G ports and 2 x 100G ports |
| Operating System | ArubaOS-CX |
| Advanced Features | VSX, EVPN, VXLAN, sFlow, NAE, BGP, OSPF, PIM, ACLs, Jumbo Frames (9K), QoS |
| Flash Memory | 32 GB |
| RAM | 16 GB |
| Processor | 1.8 GHz |
| Power Supplies | 2 x Hot-Plug (AC 100–240V, 47–63Hz), Redundant (1+1) |
| Fans | 5 x Hot-Swappable (included) |
| Operating Temp | 0°C to 45°C |
| Humidity | 15% to 95% non-condensing (operating & storage) |
| Dimensions (W x D x H) | 44.25 x 55.88 x 4.4 cm |
| Weight | 10.73 kg |
| Warranty | Limited Lifetime |
| Compliance | IEEE 802.1/3 standards, RoHS, UL, FCC Class A, EN, VCCI, etc. |
