Description

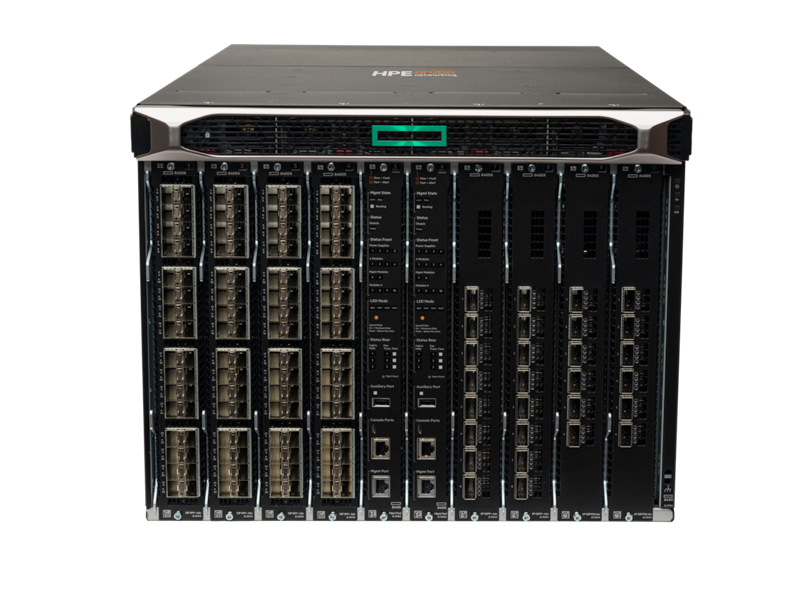

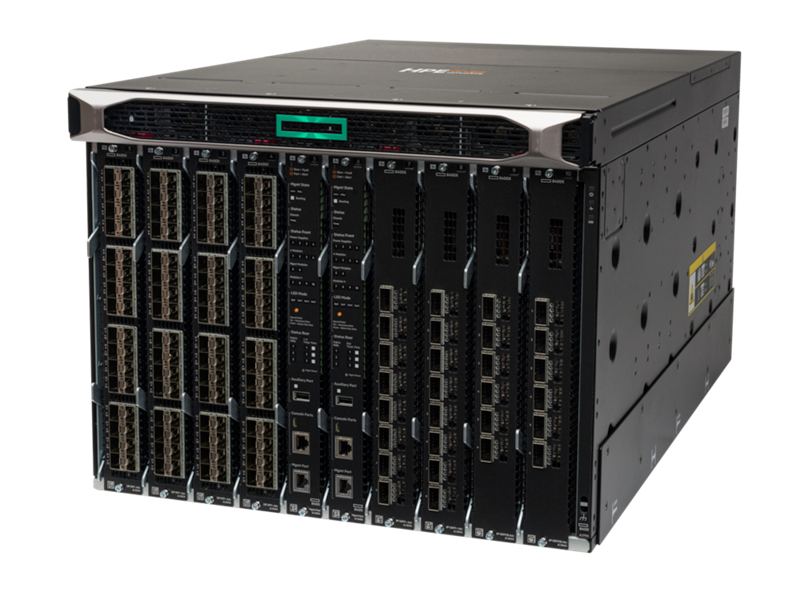

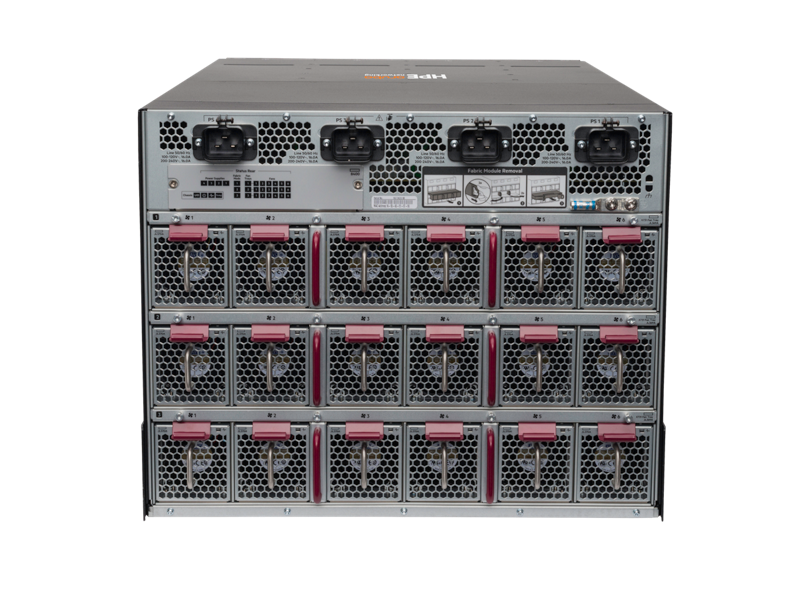

The HPE Aruba Networking CX 8400 (JL375A) is a high-performance, modular 8-slot chassis switch designed for modern enterprise campus core and aggregation deployments, as well as data center environments using a leaf-spine architecture. This bundle includes everything needed to support high availability and scalability—featuring 3x fan trays, 18x fans, a cable manager, and the X462 rack rail kit. Built on Aruba’s cloud-native AOS-CX operating system, the CX 8400 delivers a robust and intelligent switching solution to meet the evolving demands of IoT, mobile, and cloud applications.
| Specification | Details |
|---|---|
| Product Code | JL375A |
| Form Factor | 8U Rack-Mountable Chassis |
| Chassis Slots | 8 Line Module Slots3 Fabric Module Slots2 Management Module Slots |
| Fan Trays Included | 3x Fan Tray Bundles (JL371A) |
| Total Fans Included | 18 Fans |
| Cable Management | Included |
| Rack Mount Kit | X462 Rack Rail Kit (JL374A) |
| Power Supply Slots | 4 (Minimum 2 required for full configuration) |
| Recommended Power Supply | HPE Aruba X382 54VDC 2700W AC (JL372A) |
| Power Consumption | Up to 2750W |
| Input Voltage Range | 90–140V / 180–264V AC |
| Maximum Ports Supported | - Up to 256 x 10GbE (SFP/SFP+)- 64 x 40GbE (QSFP+)- 48 x 40/100GbE (QSFP28) |
| Switching Capacity | Up to 19.2 Tbps |
| Throughput | Up to 8.6 Bpps |
| Management Interfaces | - RJ-45 Serial Console- RJ-45 Ethernet for OOBM- USB Type-A (file use only) |
| Stacking Capabilities | Supported |
| Operating System | ArubaOS-CX |
| Dimensions (H x W x D) | 35.1 x 44.2 x 71.1 cm (13.8 x 17.4 x 28.0 in) |
| Weight | 52.8 kg (116.3 lb) |
| Warranty | Limited Lifetime Warranty |
| Use Case | Enterprise Core, Aggregation, and Data Center (Leaf-Spine) Deployments |
