Description

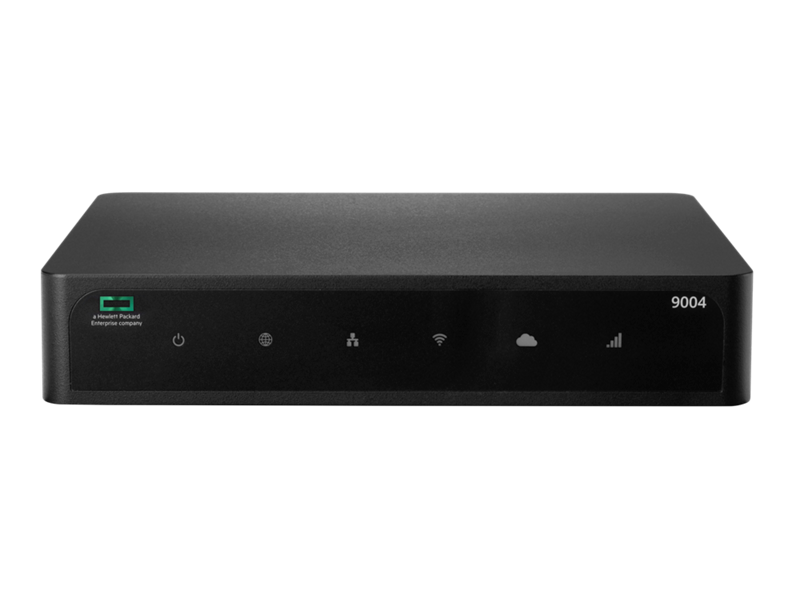

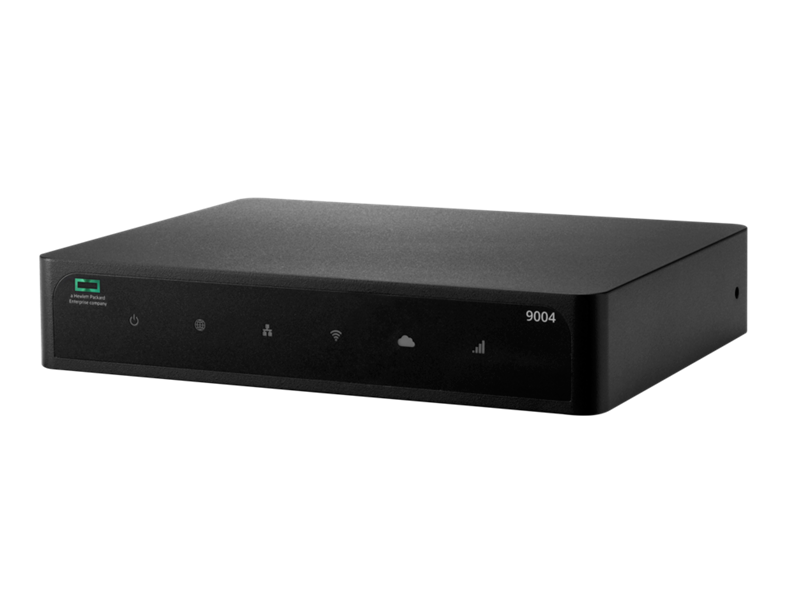

The HPE Aruba Networking 9004 (JP) Gateway is a compact, high-performance solution purpose-built for small campus and branch environments in Japan. Featuring 4 GbE RJ45 ports, support for up to 2,000 clients and 32 APs, this gateway is ideal for distributed enterprises requiring secure, scalable, and efficient networking.
With advanced SD-WAN capabilities, dynamic segmentation, application visibility, and integrated security (including Layer 4–7 firewall and IDS/IPS), the 9004 Gateway ensures simplified IT operations and enterprise-grade performance. Easily managed via HPE Aruba Networking Central, this gateway is a core component of HPE Aruba’s SD-Branch architecture.
| Feature | Details |
|---|---|
| Model Number | R1B22A |

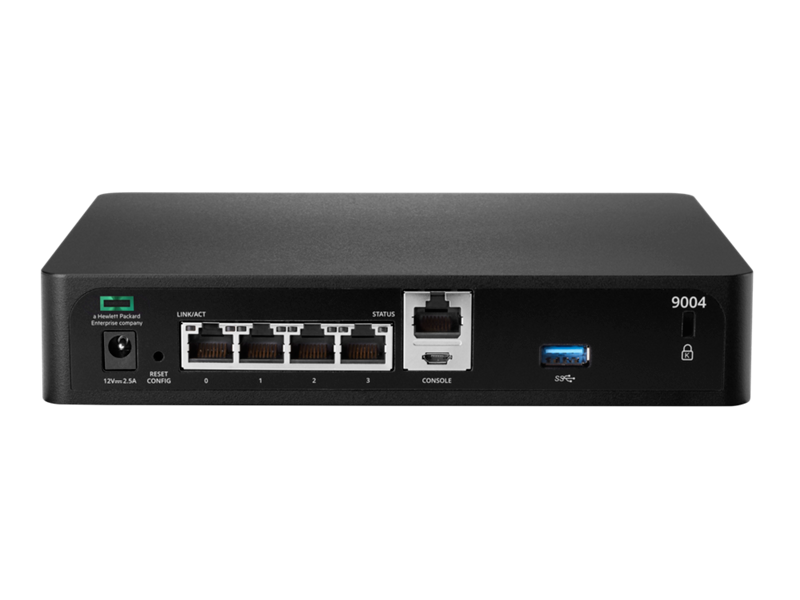

| Ports | 4x 10/100/1000BASE-T RJ45 GbE |
| Form Factor | Desktop (fanless) |
| Max Clients | 2,000 |
| Max APs Supported | 32 |
| Max Firewall Throughput | 4 Gbps |
| Encryption Throughput | 4 Gbps (AES-GCM-128/256, AES-CBC-128/256, GRE) |
| Max Firewall Sessions | 128,000 |
| Management | Aruba Central (cloud-managed) |
| Clustering Support | Yes, up to 4 devices per cluster |
| Console Port | Micro USB, RJ45 |
| USB Port | 1x USB 3.0 Type-A |
| LED Indicators | System, WAN/LAN, Gateway Mode, Central Connectivity |
| Operating System Support | ArubaOS 10.4+, ArubaOS 8.5 (WLAN mode) |
| Power Supply | 12V DC, 2.5A via AC adapter (JX990A included) |
| Max Power Consumption | 25W (with USB) |
| Dimensions (H x W x D) | 3.82 cm x 19.85 cm x 15.31 cm |
| Weight | 1.143 kg |
| Operating Temperature | 0°C to 40°C |
| Compliance | MIC (Japan), FCC, CE, EN/IEC 62368-1 |
