Description

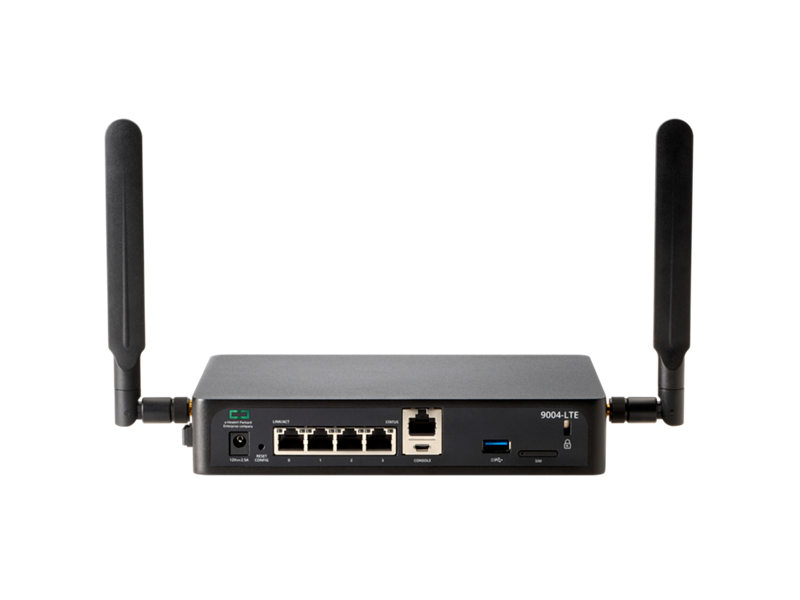

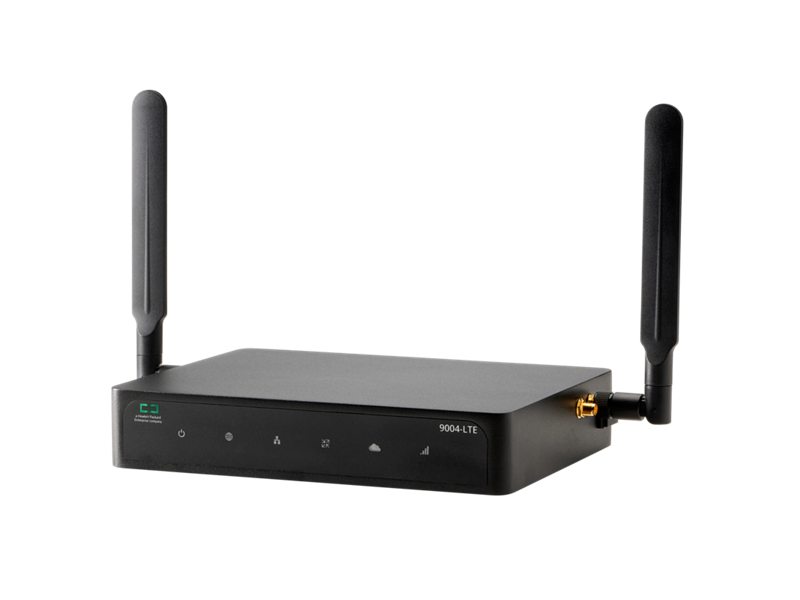

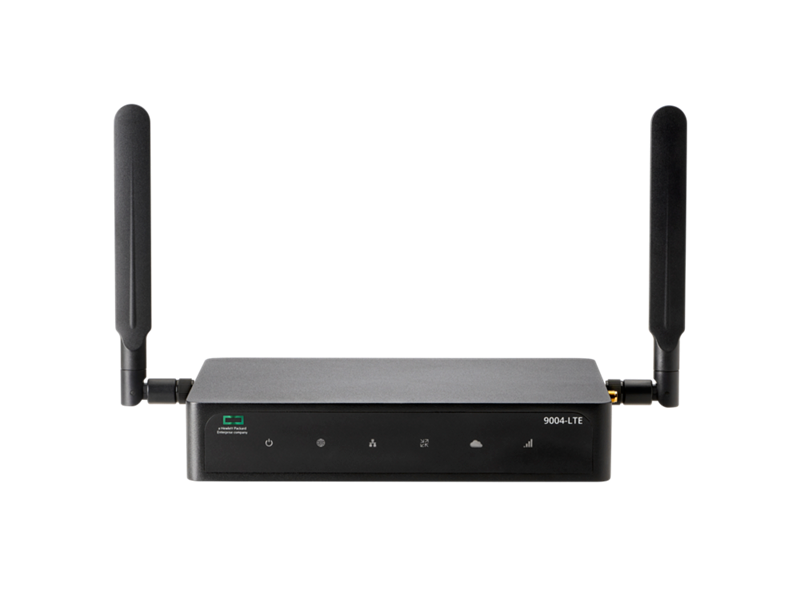

The HPE Aruba Networking 9004 (IL) LTE Branch Gateway is a compact, fanless SD-WAN and branch gateway that combines high-performance networking, integrated LTE uplink, and enterprise-grade security features. Supporting up to 2,000 users and 32 access points, this model is ideal for remote or small office deployments in Israel. With built-in LTE Category 12 and up to 600 Mbps downlink, this device ensures always-on connectivity. Integrated with HPE Aruba Central, it supports cloud-managed orchestration, Dynamic Segmentation, and full-layer security with application-level visibility, making it a reliable and scalable SD-Branch solution.
| Category | Specification |
|---|---|
| Model Number | R3V88A |
| Form Factor | Desktop (fanless), optional 19" rack mount tray |
| Ports | 4× 10/100/1000BASE‑T RJ45 Ethernet |
| LTE Connectivity | LTE Cat 12 (600 Mbps DL / 150 Mbps UL), 2xSMA LTE + 1xSMA GPS antennas |
| Max Clients | 2,000 clients; 32 APs |
| Firewall Throughput | Up to 4 Gbps |
| Encryption Throughput | GRE/AES up to 4 Gbps (CBC/GCM 128/256-bit) |
| Management | Aruba Central (cloud), optional ClearPass & Mobility Conductor |
| Dynamic Segmentation | Yes (role-based access across LAN/WLAN/WAN) |
| Integrated Features | USB 3.0, Bluetooth 5, built-in LTE, micro USB console |
| Max Power Consumption | 25W (with USB) |
| Power Supply | 12V DC, 2.5A AC-to-DC power adapter (90–264V AC input) |
| Weight | 1.24 kg (2.7 lbs) |
| Dimensions | 3.82 × 19.9 × 15.3 cm (1.5 × 7.8 × 6.0 in) |
| Certifications | FCC, ISED, RED 2014/53/EU, MIC, NCC, ANATEL, COFTEL, CCC |
| Warranty | 1-year hardware, 90-day software (extendable with support contracts) |
| Software Support | AOS 10.4+ (SD-WAN mode), Central 2.51+, SD-WAN R2.3.0.0 |
| Operating Temp. | 0°C to 40°C (32°F to 104°F) |
| Storage Temp. | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 10% to 90% RH, non-condensing |
