Description

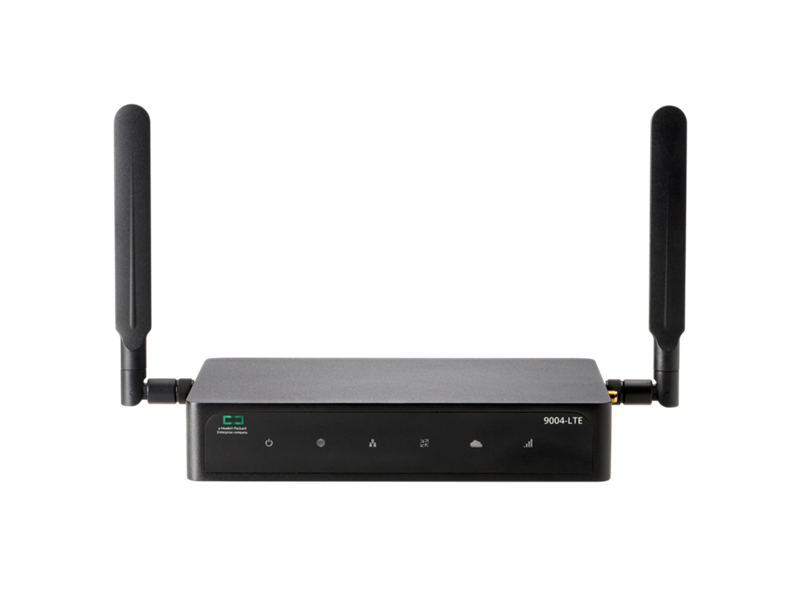

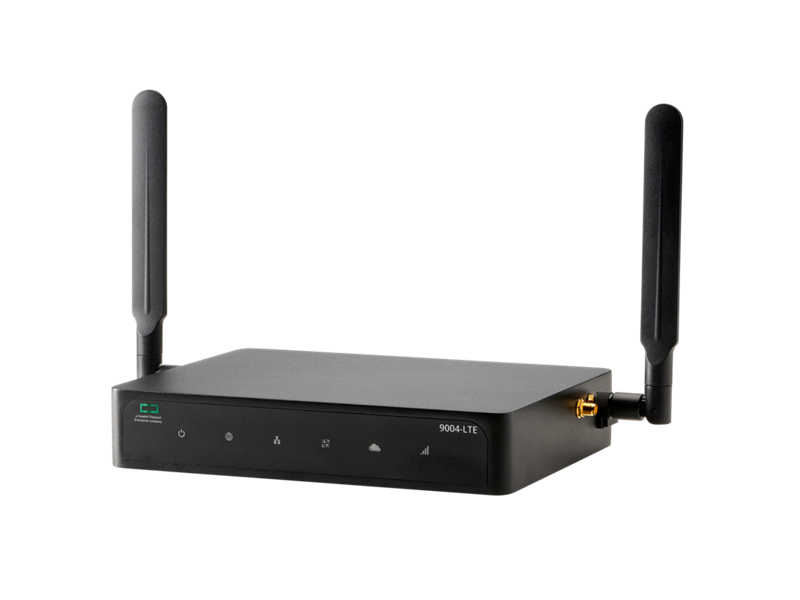

The HPE Aruba Networking 9004 (EG) LTE Gateway is a compact, high-performance SD-Branch gateway purpose-built for distributed enterprises and small campuses. Designed with integrated LTE connectivity, this model delivers robust networking, SD-WAN, and security services across wired and wireless networks. Supporting up to 2,000 users and 32 APs, it’s ideal for bandwidth-intensive environments requiring seamless cloud-managed deployment, dynamic segmentation, and enterprise-grade security. The 9004 (EG) enables LTE failover or primary WAN through integrated Category 12 LTE with global band coverage, ensuring resilient branch connectivity in challenging environments.
| Specification | Details |
|---|---|
| Model | HPE Aruba Networking 9004 (EG) LTE Gateway |
| SKU | R3V87A |

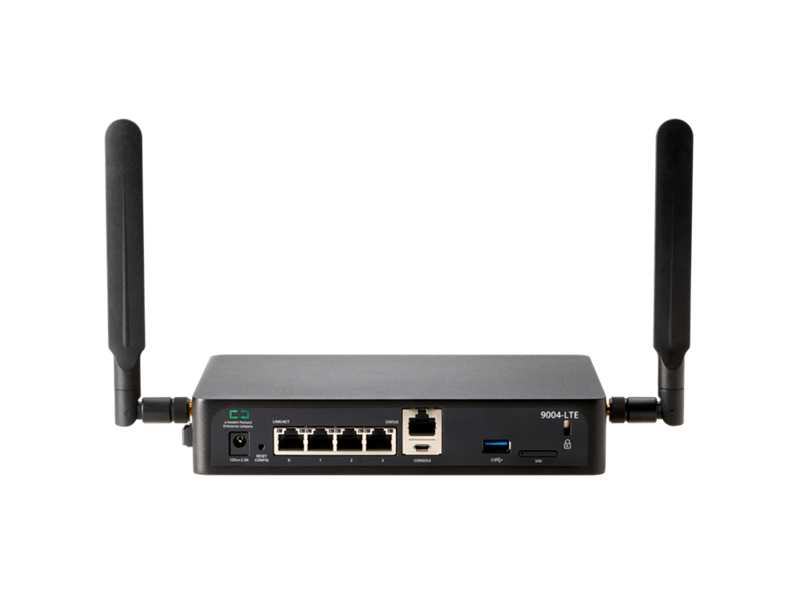

| Interfaces | 4 × 10/100/1000BASE-T Ethernet, 1 × USB 3.0 Type-A |
| LTE Support | Integrated LTE Cat 12 (600/150 Mbps DL/UL); global band support |
| Antenna Connectors | 2 × SMA for LTE, 1 × SMA for GPS |
| Max Clients (MAC) | 2,000 |
| Max APs Supported | 32 |
| Firewall Throughput | 4 Gbps |
| Encrypted Throughput (GRE/AES) | 4 Gbps (GRE, AES-128/256-CBC, AES-128/256-GCM) |
| Max Firewall Sessions | 128K |
| Max VLANs | 4,000 L2 / 128 IPv4 / 128 IPv6 interfaces |
| Wi-Fi Technologies | Compatible with SD-Branch WLAN, LAN, and WAN segmentation |
| Cloud Management | Aruba Central with AI Insights and NetConductor |
| Mounting | Desktop (fanless), optional rack mount kit (R3W17A) |
| Power Supply | 12V DC, 2.5A (via included AC-DC adapter) |
| Max Power Consumption | 25W (with USB) |
| Dimensions (H × W × D) | 3.82 × 19.85 × 15.31 cm (1.5 × 7.8 × 6.03 in) |
| Weight | 1.143 kg (2.519 lbs) |
| Operating Temp | 0°C to 40°C |
| Certifications | FCC, ISED, CE, RED, MIC, NCC, ANATEL, COFTEL, CCC |
| Warranty | 1-year hardware, 90-day software (extendable via support contract) |
