Description

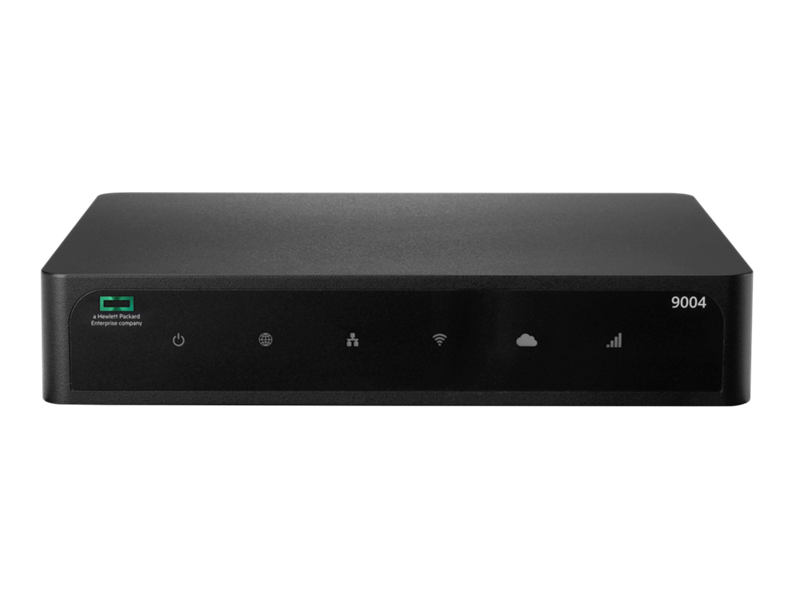

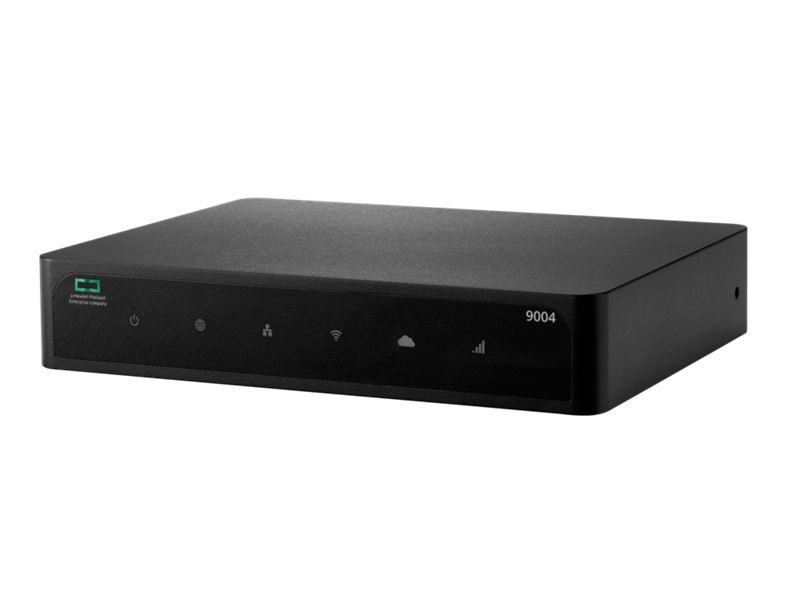

The HPE Aruba Networking 9004 (RW) Gateway is a compact, high-performance SD-Branch solution purpose-built for small campus and branch deployments. With support for up to 2,000 clients and 32 access points, it enables unified management of WLAN, LAN, SD-WAN, and security. Equipped with 4x 100/1000BASE-T ports, a built-in policy enforcement firewall, and support for up to 6 Gbps of firewall throughput, the 9004 Gateway ensures seamless connectivity, scalable performance, and enterprise-grade security in distributed environments.
Key features include application-aware routing, dynamic segmentation, intrusion prevention (IDS/IPS), integrated Bluetooth 5, and centralized management via HPE Aruba Networking Central. Fanless design with optional rack-mount tray makes it ideal for quiet office environments.
| Feature | Specification |
|---|---|
| Model SKU | R1B21A |
| Form Factor | Desktop (fanless), optional 19" rack-mount tray |

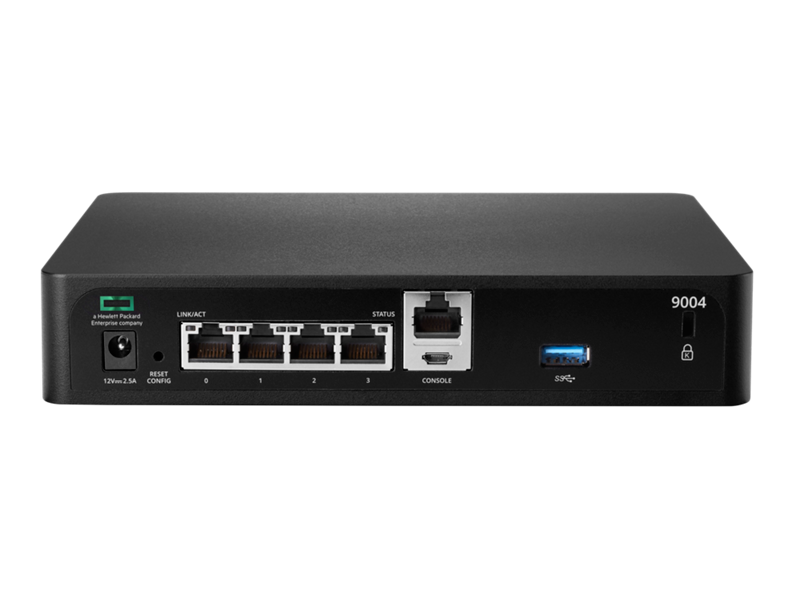

| Ports | 4x 100/1000BASE-T RJ45 |
| Max Clients | 2,048 users / 32 APs |
| Firewall Throughput | 4 Gbps |
| Encrypted Throughput | 4 Gbps (AES-CBC & AES-GCM) |
| Max Firewall Sessions | 128K |
| Max VLANs | 4,000 Layer 2 VLANs, 128 IPv4 & IPv6 interfaces |
| Console Ports | Micro-USB, RJ-45 |
| USB | 1x USB 3.0 Type-A |
| Bluetooth | Bluetooth 5.0 integrated |
| Operating System | HPE Aruba AOS 10.4 or later |
| Management | HPE Aruba Central, ClearPass, Mobility Conductor |
| Max Power Consumption | 25W (with USB) |
| Input Power | 12V DC, 2.5A (AC-to-DC adapter included) |
| Certifications | FCC/ISED, RED Directive 2014/53/EU, MIC, NCC, ANATEL, COFTEL, CCC |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Dimensions (H x W x D) | 3.82 × 19.85 × 15.31 cm (1.5 × 7.8 × 6.0 in) |
| Weight | 1.24 kg (2.7 lb) |
| Warranty | 1-year hardware, 90-day software (extendable with support) |
