Description

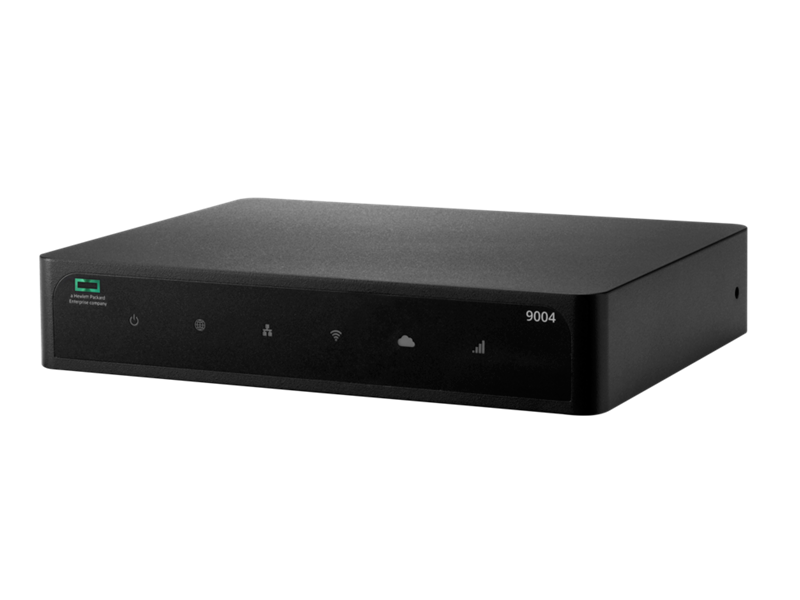

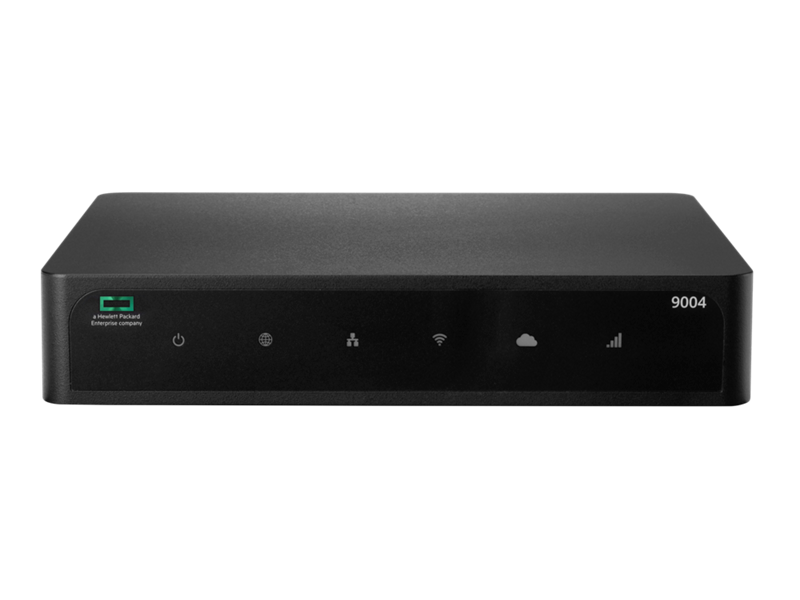

The HPE Aruba Networking 9004 (US) Gateway (R1B20A) delivers high-performance SD-WAN, security, and branch connectivity in a compact and cost-effective form factor. Engineered for small campus and branch deployments, the 9004 supports up to 2,000 clients and 32 access points, making it ideal for distributed enterprise networks.
Powered by ArubaOS and managed via HPE Aruba Networking Central, this gateway offers unified policy enforcement across wired and wireless traffic, application visibility for over 3,800 apps, and robust firewall and intrusion prevention capabilities. With flexible deployment modes, dynamic segmentation, and optional clustering for high availability, the 9004 is a cornerstone of the Aruba SD-Branch architecture.
| Specification | Details |
|---|---|
| Model | HPE Aruba Networking 9004 (US) Gateway |
| SKU | R1B20A |

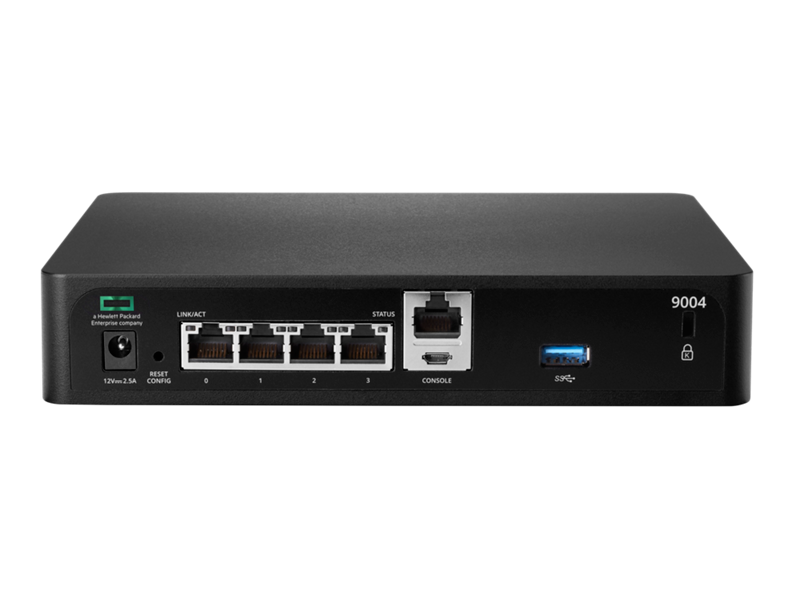

| Ports | 4x 10/100/1000BASE-T RJ-45 |
| Max Clients (MAC) | 2,000 |
| Max Access Points | 32 (standalone) / 128 (cluster), up to 512 per cluster |
| Firewall Throughput | 4 Gbps |
| Encrypted Throughput | Up to 4 Gbps (AES-GCM-128/256, AES-CBC-128/256, GRE) |
| Max Firewall Sessions | 128K |
| Clustering Support | Up to 4 gateways per cluster |
| Wireless Protocols | Bluetooth 5, IoT-ready (Zigbee, NFC via external module) |
| USB Port | 1x USB 3.0 Type-A |
| Console Port | Micro USB & RJ-45 |
| Dimensions (H x W x D) | 3.82 cm x 19.85 cm x 15.31 cm (1.5" x 7.815" x 6.03") |
| Weight | 1.143 kg (2.519 lbs) |
| Power Supply | 12V DC, 2.5A AC adapter (included) |
| Max Power Consumption | 25W |
| Operating Temperature | 0°C to 40°C |
| Management | Aruba Central (cloud-based), AOS 10.4 minimum supported |
| Key Features | Dynamic Segmentation, SD-WAN, Unified Policy Enforcement |
| Compliance | FCC, IC, CE, UL, EN 60950-1, EN/IEC 62368-1 |
