Description

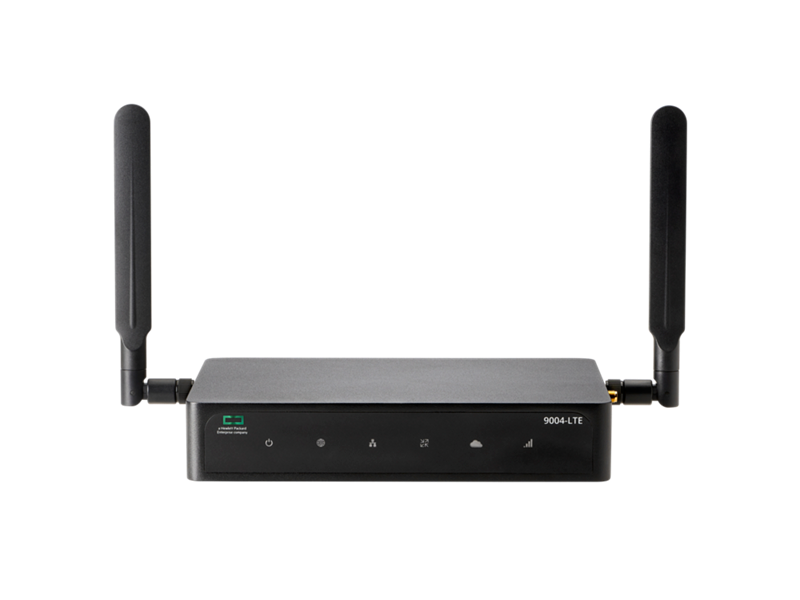

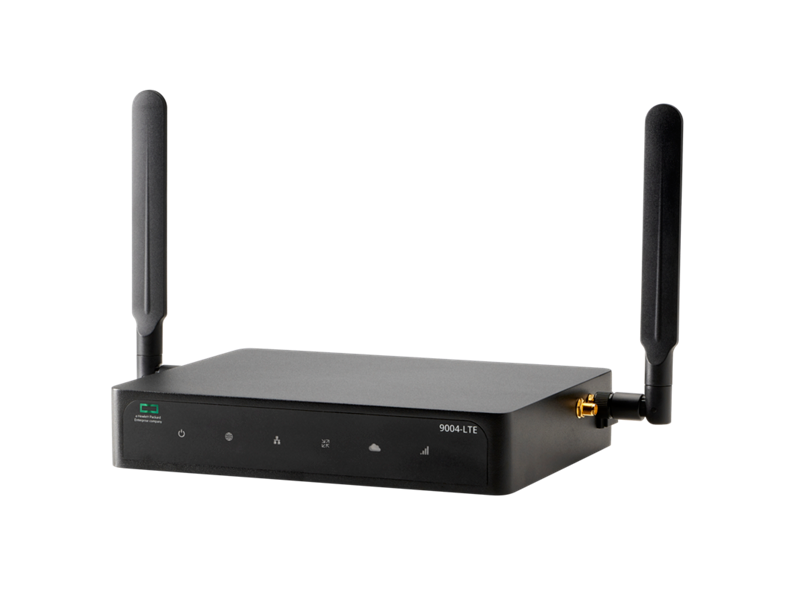

The HPE Aruba Networking 9004 (US) LTE Branch Gateway (R3V91A) delivers high-performance SD-WAN, LTE connectivity, and security features in a compact, fanless form factor. With support for up to 2,000 clients and 32 access points, this device is ideal for small campus and branch networks.
Built with integrated LTE (Category 12) for primary or backup WAN uplink and managed through HPE Aruba Networking Central, this gateway enables simple mobile provisioning, centralized policy enforcement, and seamless integration with SD-Branch architecture. The device offers up to 4 Gbps of firewall throughput and robust application awareness, including Microsoft Teams and Skype for Business prioritization.
| Feature | Details |
|---|---|
| Model/SKU | HPE Aruba Networking 9004 (US) LTE Branch Gateway / R3V91A |

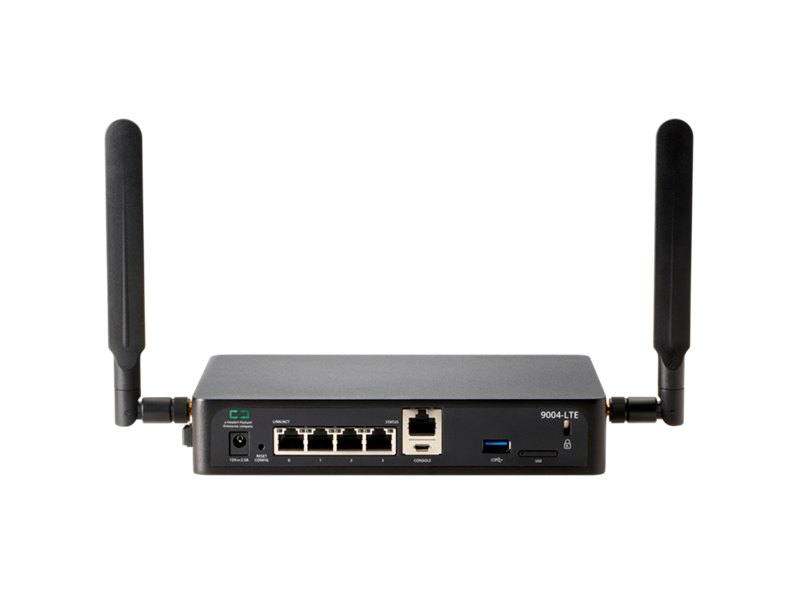

| Ports | 4 × 10/100/1000BASE‑T |
| Max Clients | 2,000 |
| Max APs Supported | 32 |
| Max Firewall Throughput | 4 Gbps |
| LTE Support | Integrated LTE, Cat 12 (600 Mbps DL / 150 Mbps UL) |
| LTE Bands | LTE-FDD/TDD: B1–B41; UMTS: B1/B2/B3/B4/B5/B8/B19 |
| Connectivity | 1 × USB 3.0, Bluetooth 5, micro USB console, RJ45 console |
| Mounting | Desktop (fanless), optional 19” rack-mount kit |
| Power Input | 12V DC, 2.5A AC-to-DC power adapter |
| Power Consumption | Max 25W (with USB) |
| Management | Aruba Central, SD-Branch, AOS 10.4+ |
| Security | Stateful Firewall (PEF), IDS/IPS, Deep Packet Inspection (DPI) |
| Weight | 1.24 kg (2.7 lb) |
| Dimensions | 3.82 × 19.9 × 15.3 cm (1.5 × 7.8 × 6.0 in) |
| Certifications | FCC, ISED, RED, MIC, NCC, ANATEL, COFTEL, CCC |
| Warranty | 1-year hardware, 90-day software (extendable with contract) |
