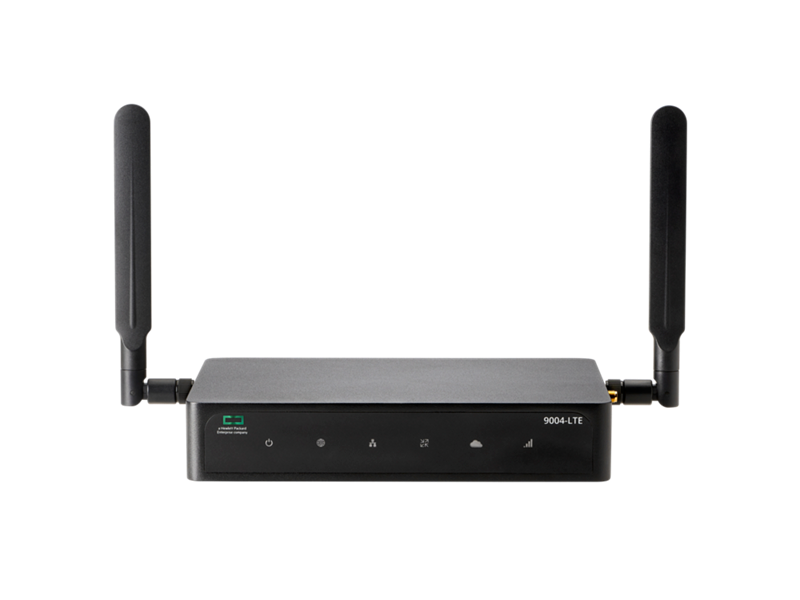

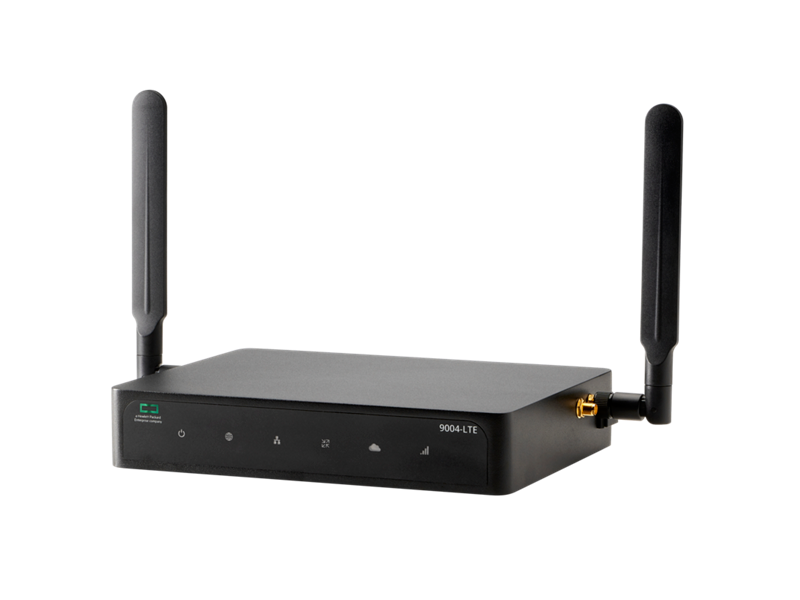

The HPE Aruba Networking 9004 (US) LTE TAA Branch Gateway (R3V96A) is a compact yet powerful solution tailored for branch offices and small campus networks. Supporting up to 2,000 clients and LTE uplinks, this SD-WAN gateway combines high-performance networking, dynamic segmentation, and integrated security in a TAA-compliant design. It delivers up to 4 Gbps of firewall throughput and deep application visibility for over 3,800 apps—ideal for distributed enterprises seeking simplified operations through HPE Aruba Networking Central.
Whether used for LTE-based backup WAN connectivity or as the primary uplink, the 9004-LTE model ensures resilient, secure access across wired and wireless LANs while unifying network policy and visibility.
| Category | Details |
|---|---|
| Model/SKU | HPE Aruba Networking 9004 (US) LTE TAA – R3V96A |
| Form Factor | Desktop, fanless (optional rack mount) |

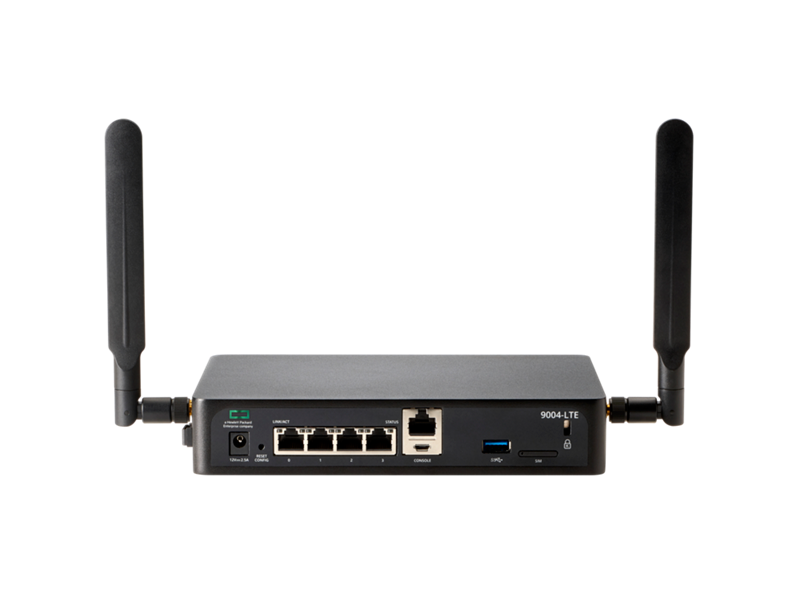

| Ports | 4x 10/100/1000BASE-T |
| Client Capacity | Up to 2,000 concurrent users |
| Firewall Throughput | 4 Gbps |
| LTE Support | Integrated LTE radio (Category 12) |
| LTE Bands | LTE-FDD/TDD, UMTS; AT&T, Verizon, T-Mobile supported |
| Max APs Supported | 128 (32 in AOS 8) |
| Max Cluster Clients | 8,000 |
| Max Sessions | 128K firewall sessions |
| Power Consumption | Max 25W (with USB) |
| Power Supply | 12V DC, 2.5A via AC-to-DC adapter |
| Cooling | Conduction (fanless) |
| Dimensions (H x W x D) | 3.82 x 19.85 x 15.31 cm (1.5 x 7.81 x 6.03 in) |
| Weight | 1.24 kg (2.73 lb) |
| Operating Temp | 0°C to 40°C (32°F to 104°F) |
| Humidity Range | 10%–90% RH, non-condensing |
| Certifications | FCC, ISED, CE, RED, MIC, NCC, ANATEL, COFTEL, CCC |
| Software Support | AOS 10.4+, SD-WAN R2.3.0.0+ |
| Warranty | 1-year hardware; 90-day software, extendable |
