Description

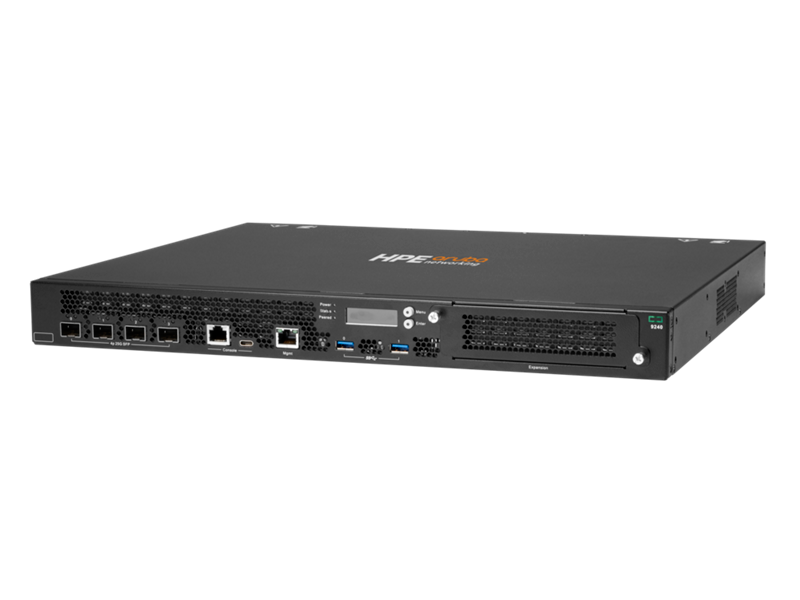

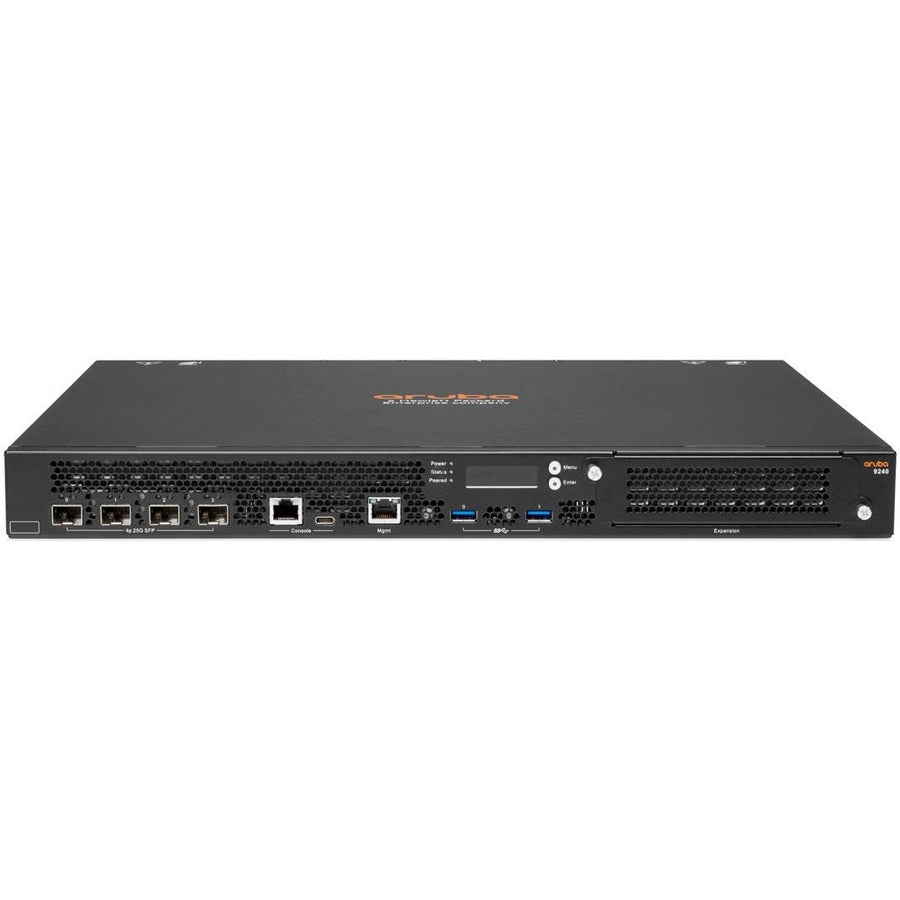

The HPE Aruba Networking 9240 (EG) Campus Gateway (R7J01A) delivers enterprise-grade performance and scalability for mission-critical networks at the edge. Designed for high-density environments, this compact 1RU gateway supports up to 2,048 access points and 32,000 devices, ensuring uninterrupted connectivity with always-on availability—even during live upgrades.
It includes 4x SFP28 ports and 1 expansion slot, powered by a 550W AC supply, and is ideal for deployment in Egypt with regulatory domain compliance. The 9240 Gateway enforces consistent network-wide policies through dynamic segmentation and a built-in Layer 4-7 policy enforcement firewall, enabling secure access for users, IoT, and applications. Perfect for large enterprise campuses, it ensures seamless roaming, high throughput (up to 40 Gbps with gold license), and advanced application visibility and control.
Note: SFP/SFP+/SFP28 transceivers and localized power cord sold separately.
| Specification | Details |
|---|---|
| Model Number | R7J01A |
| Form Factor | 1U Rackmount |
| Ports | 4x SFP28 uplink ports |
| Expansion Slot | 1 slot (reserved for future use) |
| Power Supply | 1x 550W AC power supply (included) |
| Redundancy | 1+1 power supply supported |
| Fan Trays | 5 (modular) |
| Maximum APs (Base / Silver / Gold) | 512 / 1,000 / 2,000 |
| Max Devices (Base / Silver / Gold) | 16K / 24K / 32K |
| Firewall Throughput | Up to 40 Gbps with Gold License |
| Policy Enforcement | Built-in Layer 4–7 Stateful Firewall (PEF) |
| Roaming Support | Seamless multi-VLAN Layer 3 roaming |
| Management Ports | 1x RJ45 OOB, 1x USB-C Console, 2x USB 3.0 Type-A |
| Dimensions (HxWxD) | 1.73" x 17.4" x 15.6" (4.4 cm x 44.2 cm x 39.6 cm) |
| Weight | 8.2 kg (18.08 lbs) |
| Operating Temp | 0°C to 40°C (32°F to 104°F) |
| Storage Temp | –40°C to 70°C (–40°F to 158°F) |
| Max Power Consumption | 190W |
| Heat Dissipation | 648 BTU/hr |
| Acoustic Noise | 65.2 dBA (typical) |
| Regulatory Domain | Egypt |
| Software Version Required | ArubaOS 10.4 or higher |
| Licensing Options | Base, Silver, Gold (capacity-based upgrades) |
