Description

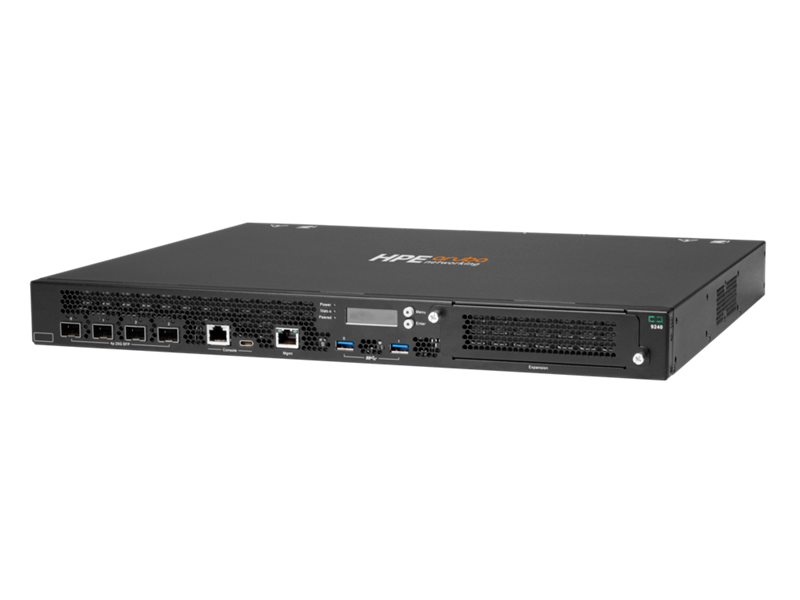

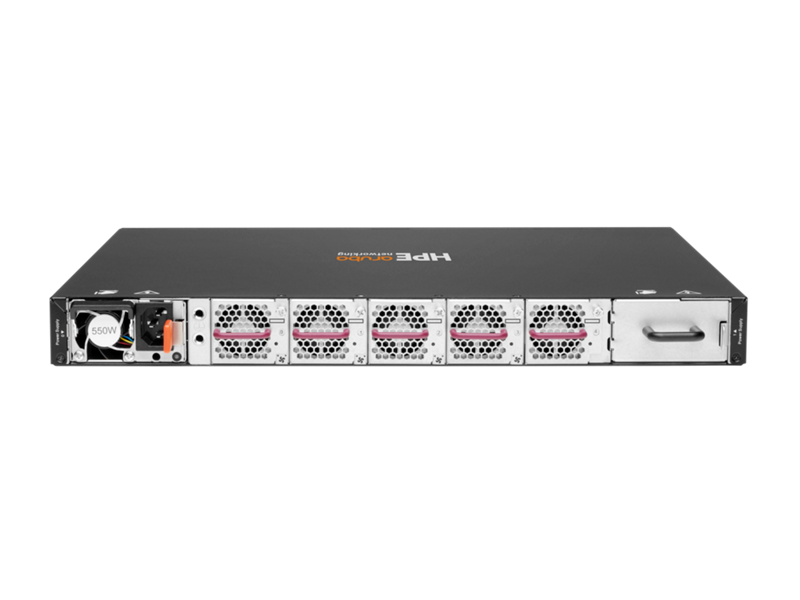

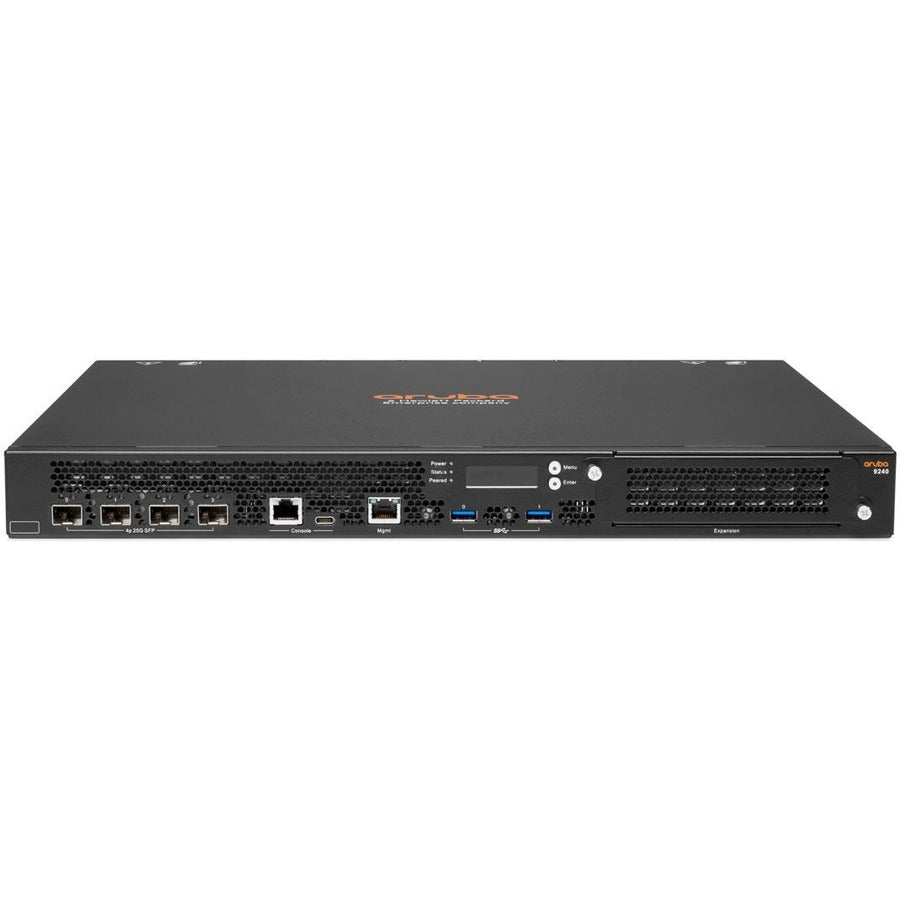

The HPE Aruba Networking 9240 (IL) Campus Gateway is a high-performance, enterprise-grade network appliance designed to deliver advanced wireless scalability, seamless roaming, and always-on connectivity. Ideal for mission-critical networks in Israel, it features 4x SFP28 ports, 1 expansion slot, and a 550W AC power supply. This gateway supports up to 2,048 APs and 32,000 devices and ensures high availability through clustering and live upgrades. Its dynamic segmentation and built-in Layer 4–7 policy enforcement firewall enable secure access for all users and devices, including IoT.
Whether for SD-WAN or WLAN deployments, the 9240 Gateway supports unified policy enforcement and simplified mobile provisioning—making it a robust, future-ready solution for modern enterprises.
| Specification | Details |
|---|---|
| Model Number | R7H99A |
| Product Name | Aruba 9240 (IL) Campus Gateway |
| Form Factor | 1U Rackmount |
| Ports | 4x SFP28 |
| Expansion Slots | 1 (Reserved for future use) |
| Management Ports | 1x RJ45 Out-of-Band, USB-C Console, 2x USB 3.0 Type-A |
| Display & Indicators | LCD Display, Power/Status/Peered LEDs |
| Power Supply | 550W AC (1 included, supports redundancy) |
| Fan Trays | 5 (field-replaceable) |
| Performance (Base License) | 20 Gbps firewall, up to 512 APs, 16K devices |
| Performance (Gold License) | 40 Gbps firewall, up to 2K APs, 32K devices |
| Firewall Sessions | Up to 4 million concurrent sessions |
| IPSec Tunnels | Up to 32K (base), 128K (gold) |
| Operating System | ArubaOS 10.4+ |
| MTBF | 185,301 hours |
| Operating Temp | 0°C to 40°C |
| Power Consumption (Max) | 190W |
| Heat Dissipation (Max) | 648 BTU/hr |
| Weight | 8.2 kg (18.08 lbs) |
| Dimensions (H x W x D) | 1.73" x 17.4" x 15.6" (4.4cm x 44.2cm x 39.6cm) |
| Regulatory Domain | IL (Israel only) |
| Warranty | 1-year hardware, 90-day software (extendable) |
