Description
Enterprise-Grade, TAA-Compliant Campus Gateway for Israel Deployments

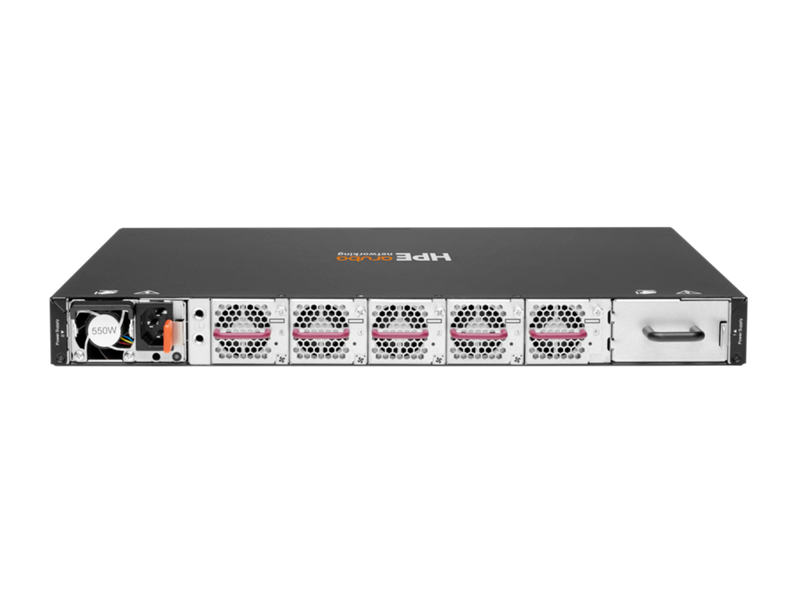

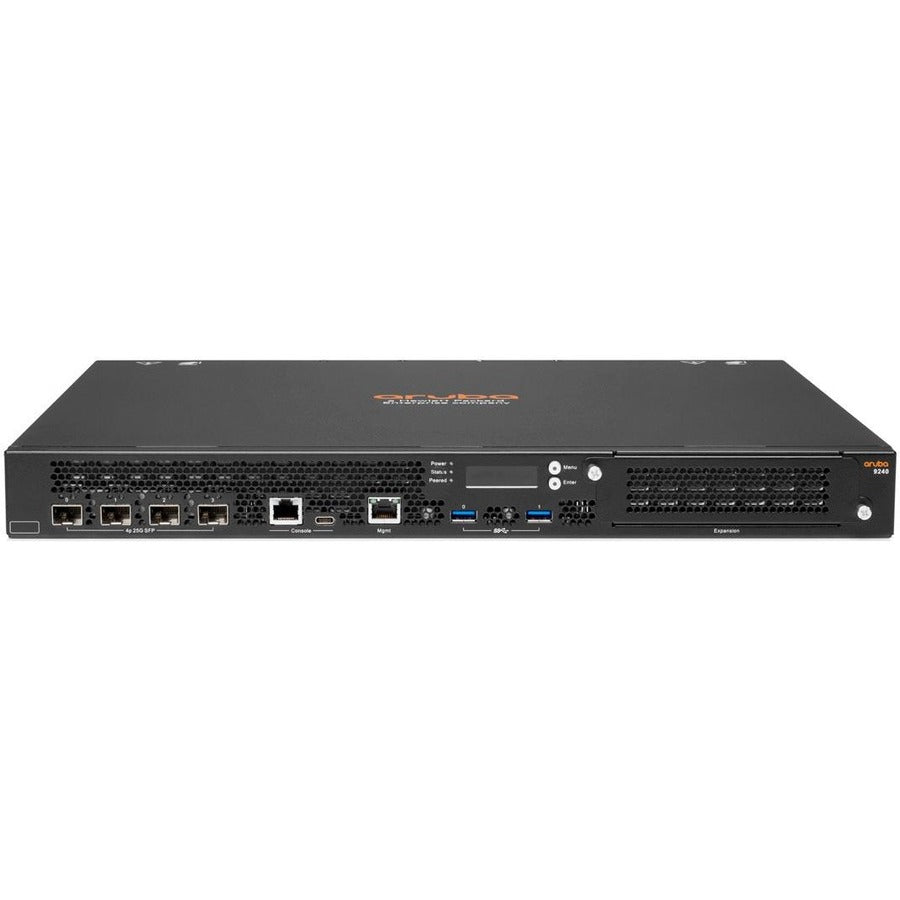

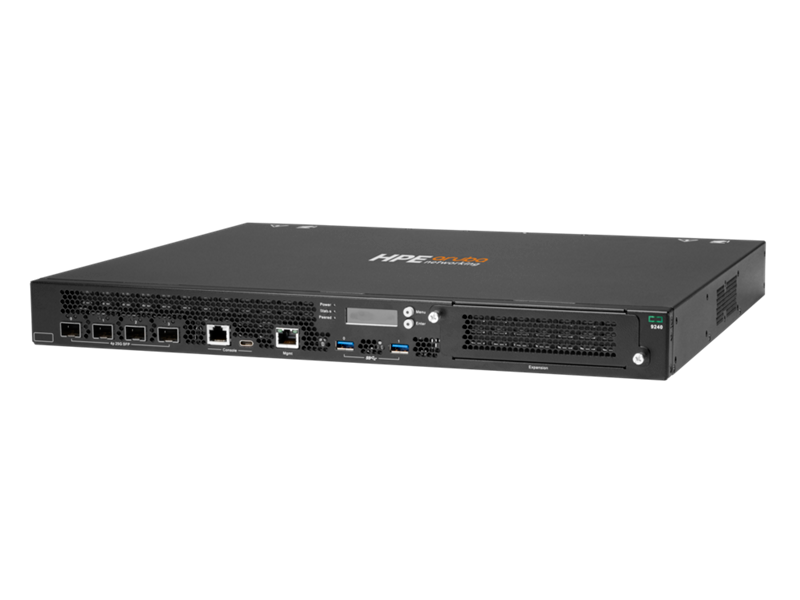

The HPE Aruba Networking 9240 (IL) TAA Campus Gateway (R7J04A) is purpose-built for mission-critical networking at the edge, engineered to provide exceptional Wi-Fi scalability, unified policy enforcement, and uninterrupted connectivity—even during live upgrades. Designed specifically for the Israeli market, this model is FIPS and TAA compliant, supporting up to 2,048 access points and 32,000 devices in a clustered configuration.
With 4x SFP28 ports and 1 expansion slot, the 9240 Gateway ensures high throughput and flexible deployment. It features integrated firewall capabilities, dynamic segmentation, seamless roaming, and mobile-friendly provisioning—making it ideal for large campuses and high-density environments.
| Feature | Specification |
|---|---|
| Model Number | R7J04A |
| Regulatory Domain | IL (Israel) – FIPS & TAA Compliant |
| Form Factor | 1U rackmount |
| Ports | 4x SFP28 (supports SFP/SFP+/SFP28 transceivers) |
| Expansion Slot | 1 (reserved for future use) |
| Power Supply | 1x 550W AC (included), redundant PSU supported |
| Fan Trays | 5 hot-swappable fans |
| Console Ports | USB-C and RJ45 |
| Management Ports | 1x RJ45 (OOB), 2x USB 3.0 |
| Throughput | 20 Gbps base (Upgradeable to 40 Gbps with Gold license) |
| Max Clients | Up to 32,000 (clustered: up to 256,000) |
| Max APs | Up to 2,048 (clustered: up to 16,000) |
| OS Version | AOS 10.4 minimum |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | –40°C to 70°C (–40°F to 158°F) |
| Dimensions (HxWxD) | 1.73” x 17.40” x 15.60” (4.4 cm x 44.2 cm x 39.6 cm) |
| Weight | 18.08 lbs (8.2 kg) |
| MTBF | 185,301 hours |
| Certifications | TAA, FIPS |
| Included Accessories | 1x 550W AC PSU (power cord sold separately) |
