Description

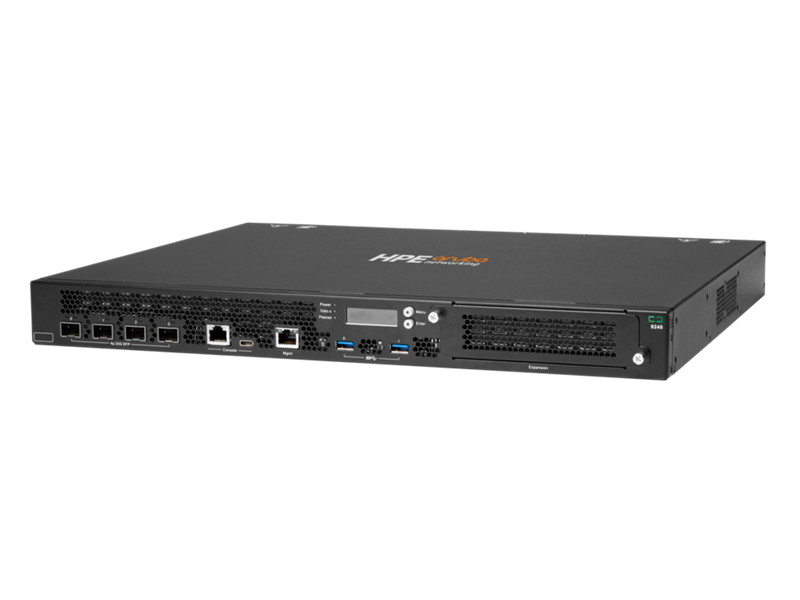

The HPE Aruba Networking 9240 (JP) Campus Gateway delivers enterprise-class wireless performance and security for medium to large organizations in Japan. Designed for mission-critical deployments, this 1RU form factor gateway supports up to 2,048 access points and 32,000 devices, with robust Layer 4-7 policy enforcement, seamless roaming, and dynamic segmentation for IoT, mobile, and cloud applications.
Equipped with 4x SFP28 ports and 1 expansion slot, it ensures scalable high-speed connectivity and integrates seamlessly with Aruba Central and ClearPass. The device includes a 550W AC power supply and is tailored for Japan’s regulatory domain.
| Specification | Details |
|---|---|
| Model Number | R7J00A |
| Form Factor | 1RU |
| Interface Ports | 4x SFP28 (min 0 / max 4 SFP/SFP+/SFP28 transceivers) |
| Expansion Slots | 1 (Reserved for future use) |
| Management Ports | 1x RJ45 (OOB), USB-C, 2x USB 3.0 Type-A |
| Display | LCD Display |
| Power Supply | 550W AC (1 included; supports redundancy) |
| Fan Trays | 5 |
| Dimensions (H x W x D) | 1.73" x 17.40" x 15.60" (4.4cm x 44.2cm x 39.6cm) |
| Weight | 18.08 lbs (8.2 kg) |
| Max Power Consumption | 190W |
| Max Heat Dissipation | 648 BTU/hr |
| Operating Temp | 0°C to 40°C (32°F to 104°F) |
| Storage Temp | –40°C to 70°C (–40°F to 158°F) |
| Humidity (Operating/Storage) | 10%–90% RH / 10%–95% RH (non-condensing) |
| Max Operating Altitude | 10,000 feet |
| Noise Level | 65.2 dBA (typical) |
| MTBF (25°C with Fans and PSU) | 185,301 hours |
| Regulatory Domain | Japan only |
| Software Support | ArubaOS 10.4 and above |
| Max Clients | 32,000 |
| Max Access Points | 2,048 |
| Cluster Support | Up to 6 devices |
| Firewall Throughput (Base) | 20 Gbps |
| Firewall Throughput (Gold License) | Up to 40 Gbps |
