Description

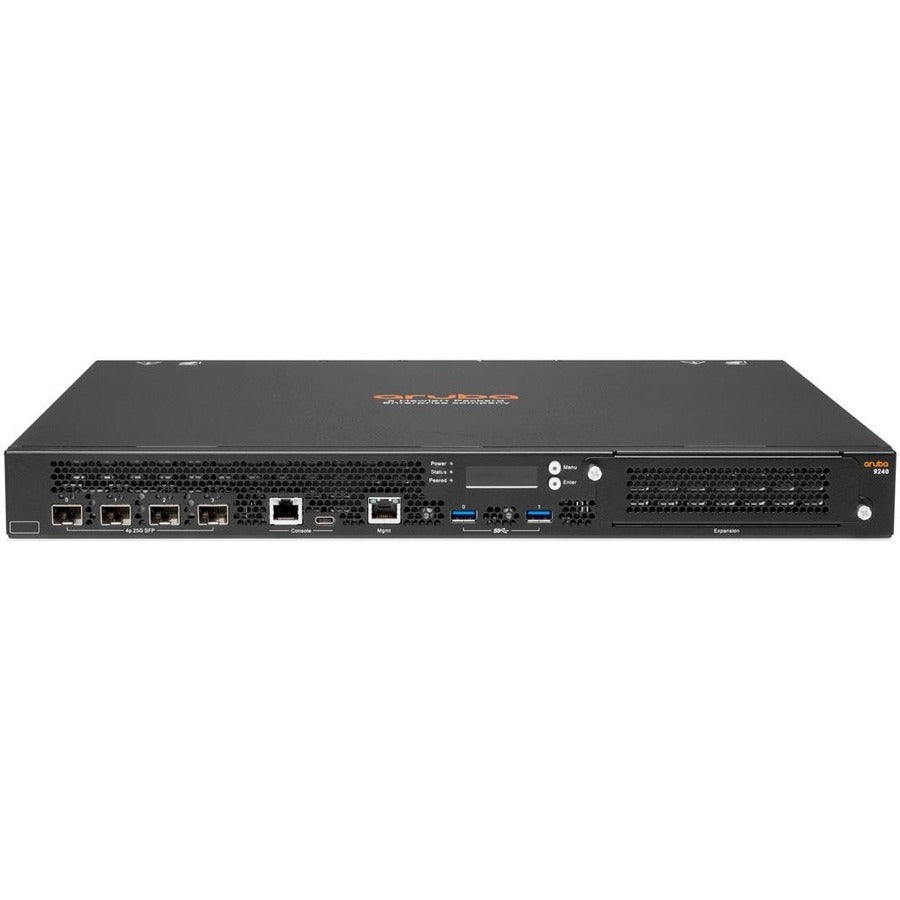

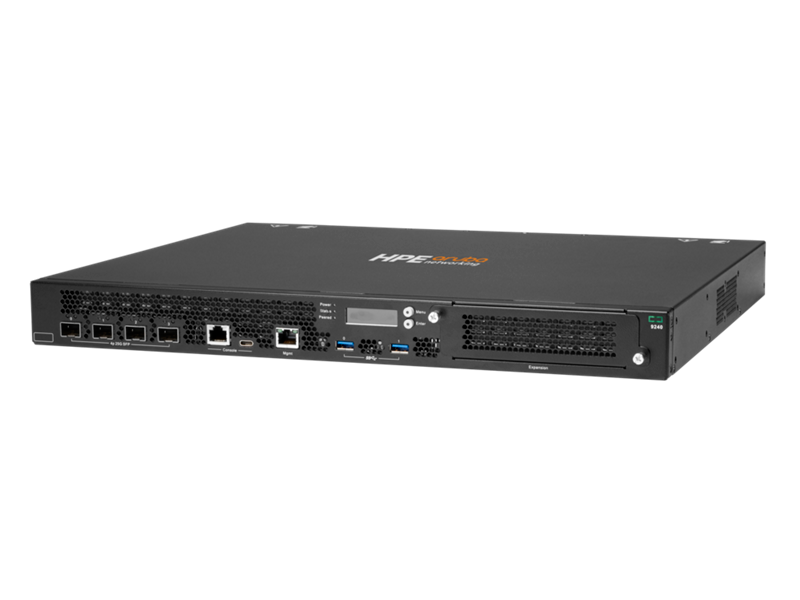

The HPE Aruba Networking 9240 (RW) Campus Gateway (SKU: R7H97A) is a high-performance 1U network appliance built to deliver enterprise-class scalability, security, and seamless connectivity across wired and wireless environments. Ideal for medium to large enterprise campuses, it supports up to 2,048 access points and 32,000 devices with advanced clustering capabilities, unified policy enforcement, and dynamic segmentation.
This model includes 4x SFP28 ports and 1 expansion slot, and comes with a 550W AC power supply. Engineered for the "Rest of World" (RW) regulatory domain, it supports deep packet inspection, seamless roaming across subnets, encrypted traffic optimization, and redundancy with built-in high availability features. Designed to future-proof your edge-to-core network, it ensures consistent policy enforcement and application performance at scale.
| Specification | Details |
|---|---|
| Model Number | R7H97A |
| Series | HPE Aruba Networking 9200 Series |
| Form Factor | 1U Rack-mountable |
| Interfaces | 4x SFP28, 1x USB-C Console, 1x RJ45 Console, 1x RJ45 Management, 2x USB-A |
| Expansion Slots | 1 (reserved for future use) |
| Power Supply | 1x 550W AC (included), supports redundancy |
| Maximum Power Consumption | 190W |
| Cooling | 5x Fan trays (rear-to-front airflow) |
| Dimensions (H x W x D) | 1.73" x 17.40" x 15.60" (4.4cm x 44.2cm x 39.6cm) |
| Weight | 18.08 lbs (8.2 kg) |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Throughput (Base / Silver / Gold) | 20 / 30 / 40 Gbps |
| Supported Devices | Up to 2,048 APs and 32,000 clients (Gold license) |
| Concurrent Tunnels (Max) | 160K (with clustering) |
| Firewall Sessions | 4 million |
| Regulatory Domain | RW – Not for use in US, Japan, Israel, or Egypt |
| Software Compatibility | ArubaOS 8.10+, AOS 10.4+ |
| MTBF | 185,301 hours |
| Included Accessories | 1x 550W PSU |
| Warranty | 1-year parts/labor; software: 90 days (extendable via support contracts) |
