Description
High-Performance, Scalable, and Future-Ready Networking

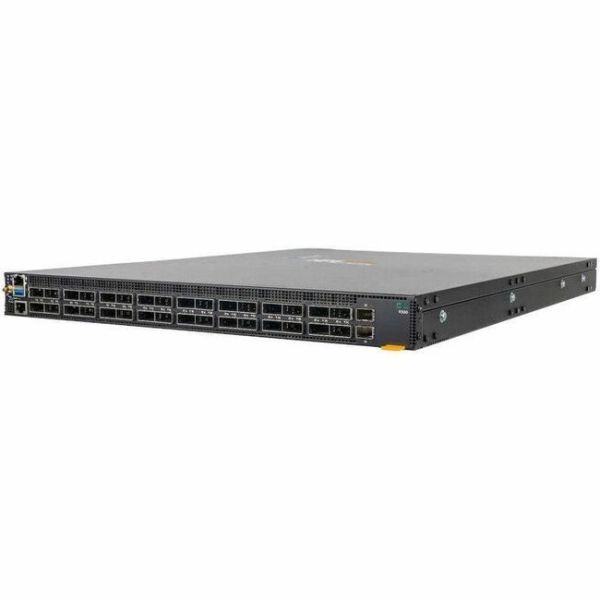

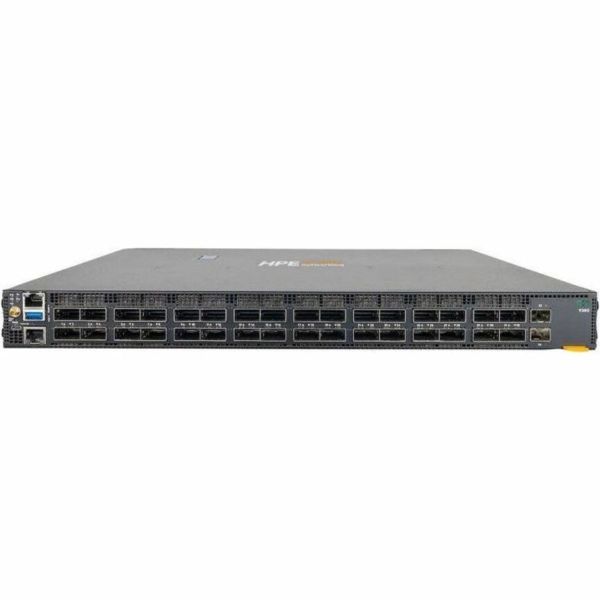

The HPE Aruba Networking CX 9300-32D is a next-generation 32-port 100/200/400GbE QSFP-DD Layer 3 managed switch with 2 x 10G SFP+ uplinks, ideal for enterprise and data center networks requiring ultra-high throughput, dense port configurations, and intelligent fabric management.

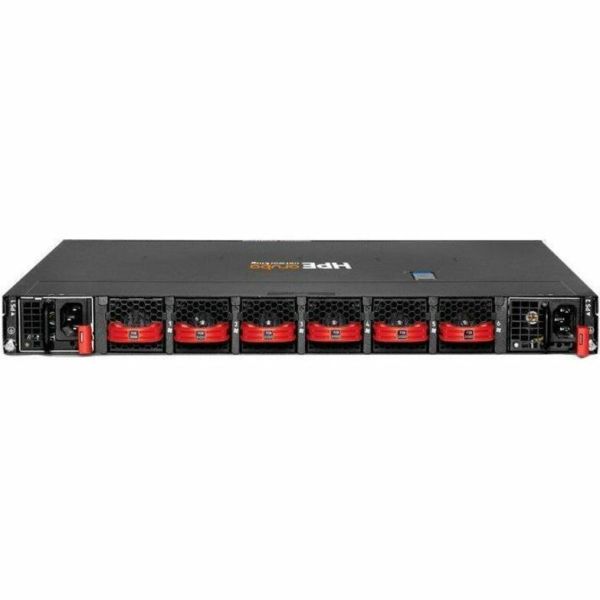

With 25.6Tbps switching capacity and 5Bpps throughput, it enables large-scale EVPN-VXLAN spine-leaf architectures, supports breakout configurations, and simplifies operations with HPE Aruba Fabric Composer. The bundle includes 6 hot-swappable fans and 2 AC power supplies with back-to-front airflow for optimized cooling in rack environments.
| Category | Details |
|---|---|
| Model | Aruba CX 9300-32D (R9A30A#ABA) |
| Device Type | Layer 3 Managed Switch |
| Form Factor | 1U Rack-mountable with Back-to-Front Airflow |
| Ports | 32 x QSFP-DD (100/200/400GbE), 2 x SFP+ (1/10GbE), 1 x RJ-45 Console, 1 x Micro-USB Console, 1 x Management |
| Switching Capacity | 25.6 Tbps |
| Throughput | 5 Bpps |
| Processor | Intel D-1537 1.7GHz |
| Memory | 32 GB RAM, 128 GB Flash, 128 GB M.2 SSD, 4 GB mSATA |
| Power Supplies | 2 x AC Power Supplies (R8Z97A) – Hot-swappable, N+1 Redundancy |
| Power Consumption | Max: 600W / Idle: 210W |
| Heat Dissipation | 4,435 BTU/hr (Max) |
| Fan Modules | 6 x Hot-swappable fan trays (included) |
| Layer 3 Features | Static Routing (IPv4/IPv6), RIP, OSPF, BGP-4, MP-BGP, PBR, ECMP, EVPN-VXLAN |
| Advanced Features | sFlow, VSX, DCBX, BFD, ERPS, PFC, Rapid PVST+, ETS, UDLD, Cisco IPSLA, VXLAN |
| Compliance | RoHS, IEEE 802.3ad, 802.1Q, 802.1D, 802.1w, 802.1s, UL 62368-1, EN 55032 Class A, FCC Part 15 Class A |
| Management | SNMP v2c/v3, Web GUI, Aruba Fabric Composer, Console & USB |
| Capacity | IPv4 Hosts: 163,840 / IPv6 Hosts: 81,920 / MAC: 81,920 / IGMP/MLD Groups: 8192 / Packet Buffer: 132 MB |
| Operating Temp. | 0°C to 45°C |
| Humidity | 5% to 95% (non-condensing) |
| Dimensions (W x D x H) | 43.84 x 59 x 4.35 cm |
| Weight | 11.85 kg |
| Warranty | Limited Lifetime Warranty |
