Description

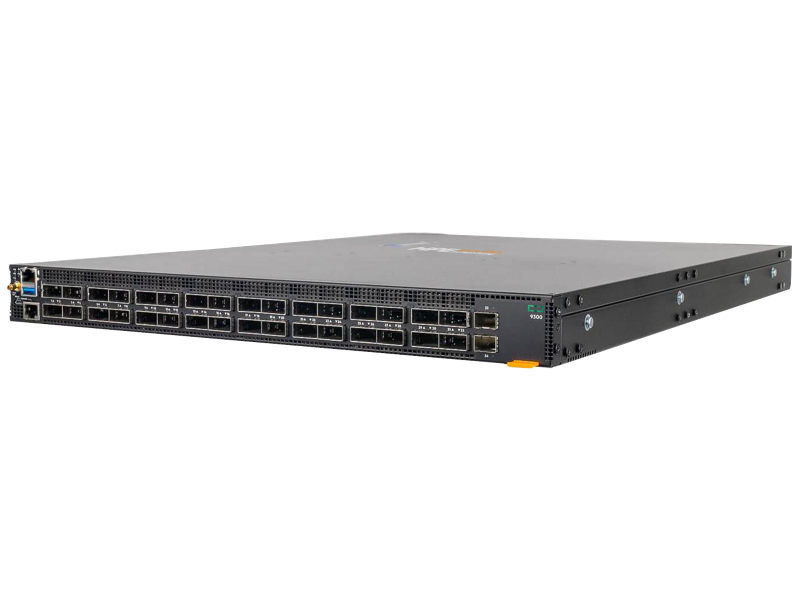

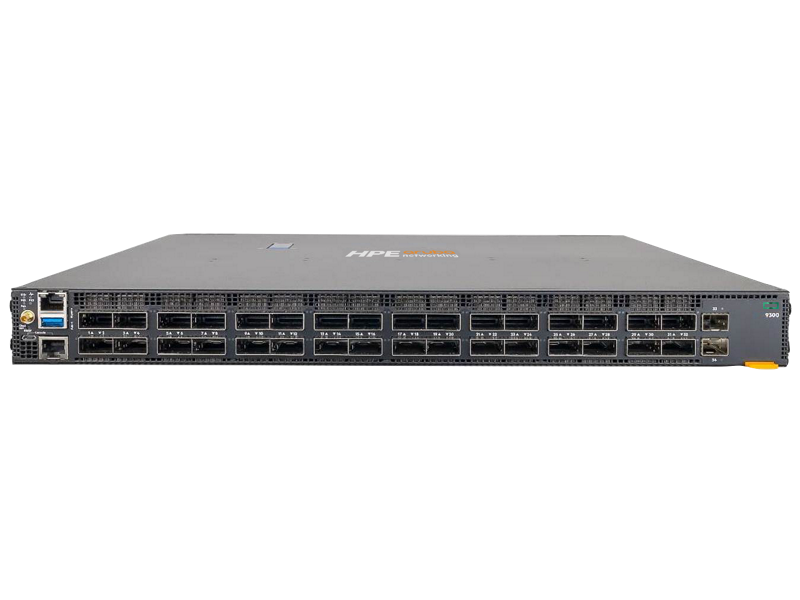

The HPE Aruba CX 9300-32D is a next-generation 1U, 25.6Tbps fixed-configuration data center switch designed for modern high-density network environments. With 32 ports of 100/200/400GbE, this switch enables scalable and flexible server and storage connectivity with superior performance and low power consumption. Ideal for leaf-and-spine architecture, it supports up to 6000 x 25G or 2000 x 100G servers, enhancing data center agility.
Featuring Aruba's AOS-CX software, the CX 9300-32D offers lossless, low-latency Ethernet ideal for cloud, storage, and enterprise environments. TAA compliant and modular with 34 expansion slots, it includes dual power supplies and 6 fans for high availability.
| Specification | Details |
|---|---|
| Brand | HPE (Hewlett Packard Enterprise) |
| Model | Aruba CX 9300-32D |
| Part Number | R9A29A#ABA |
| Product Type | Modular Ethernet Switch |
| Series | CX 9300 |
| Ports | 32 x 100/200/400GbE |
| Expansion Slots | 34 total (QSFP-DD, SFP+) |
| SFP+ Slots | 2 |
| Uplink Ports | Yes |
| Media Supported | Optical Fiber, Twisted Pair |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Standards | IEEE 802.1Q, 802.3ad, 802.3ba, 802.1p, etc. |
| Layer Support | Layer 2 |
| Manageable | Yes |
| Power Consumption | 600 W |
| Input Voltage | 120V AC / 230V AC |
| Frequency | 50/60 Hz |
| Form Factor | 1U Rack-mountable |
| Dimensions (H x W x D) | 1.7" x 17.3" x 23.2" |
| Weight | Approx. 26.12 lbs |
| Compliance | TAA, RoHS |
| Environmentally Friendly | Yes |

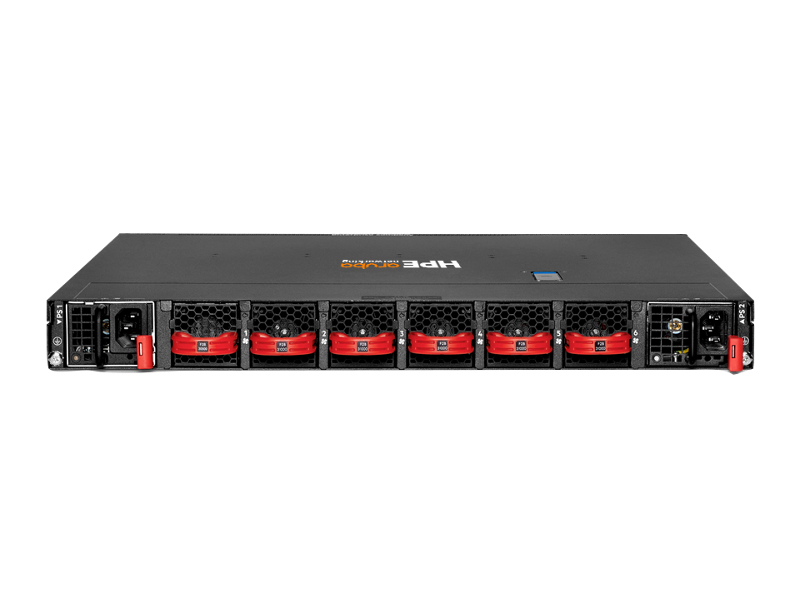

| Included Accessories | 6 x Fans, 2 x PSUs |
| Use Case | Data Center, Business, Enterprise, Network, Industrial |
| Warranty | Limited Lifetime |
