Description

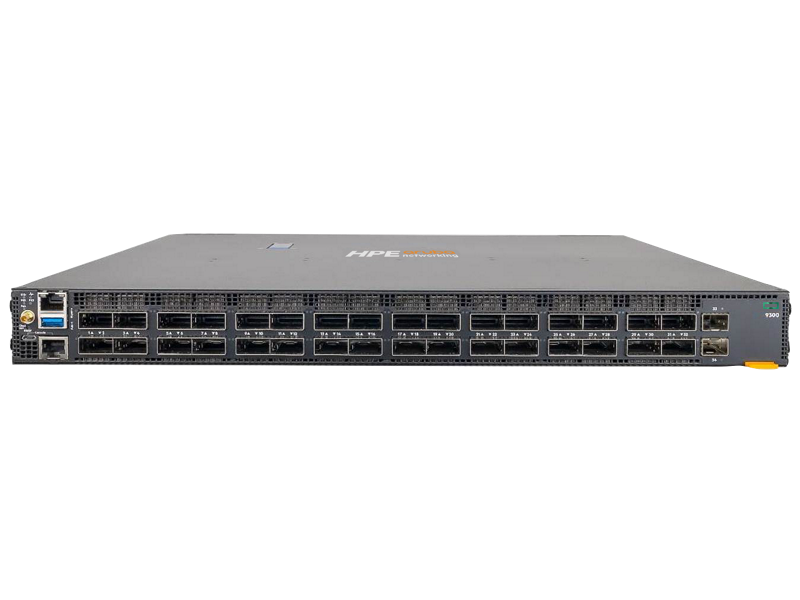

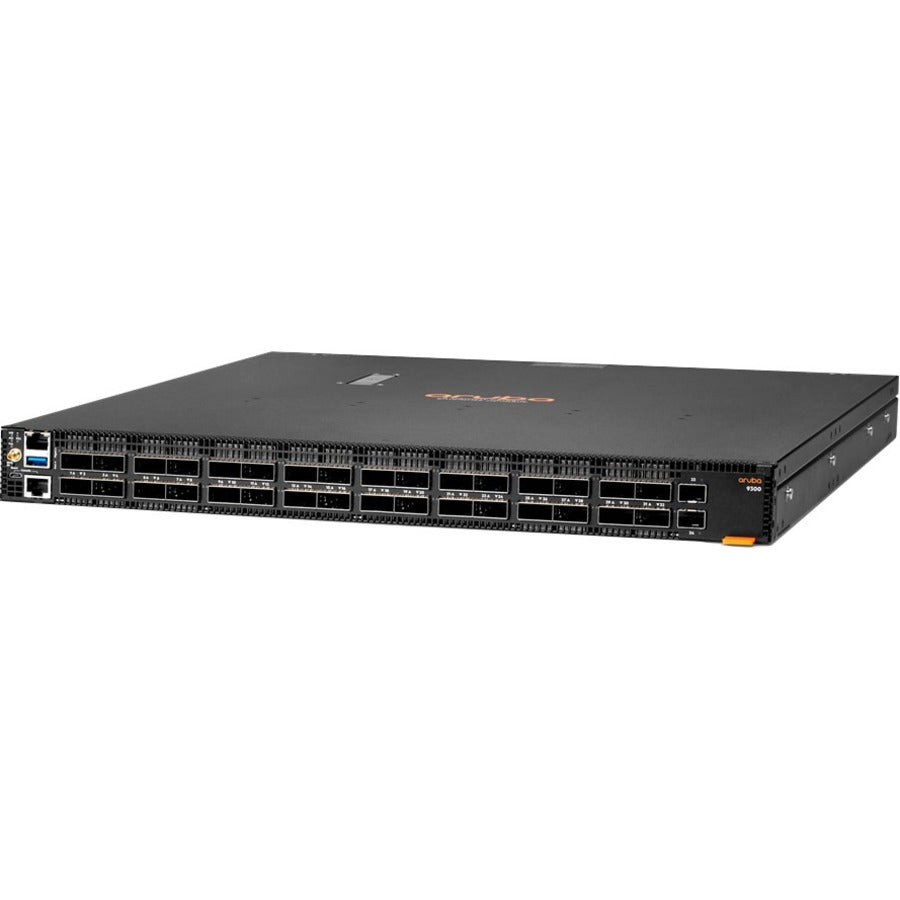

The HPE Aruba Networking CX 9300-32D (R8Z96A) is a next-generation, high-density, 1U data center switch featuring 32 QSFP-DD ports for 100/200/400GbE and 2 SFP+ 10GbE ports, ideal for spine-leaf EVPN-VXLAN architectures. With a 25.6Tbps switching capacity, it supports scaling up to 2,000 x 100G or 6,000 x 25G server connections. Designed for energy efficiency and investment protection, this fixed-configuration switch is perfect for cloud-scale, virtualized, and storage-intensive environments.
Key features include:
-
Intelligent analytics with Aruba’s Network Analytics Engine (NAE)
-
Real-time telemetry for proactive operations
-
Support for flexible breakout configurations
-

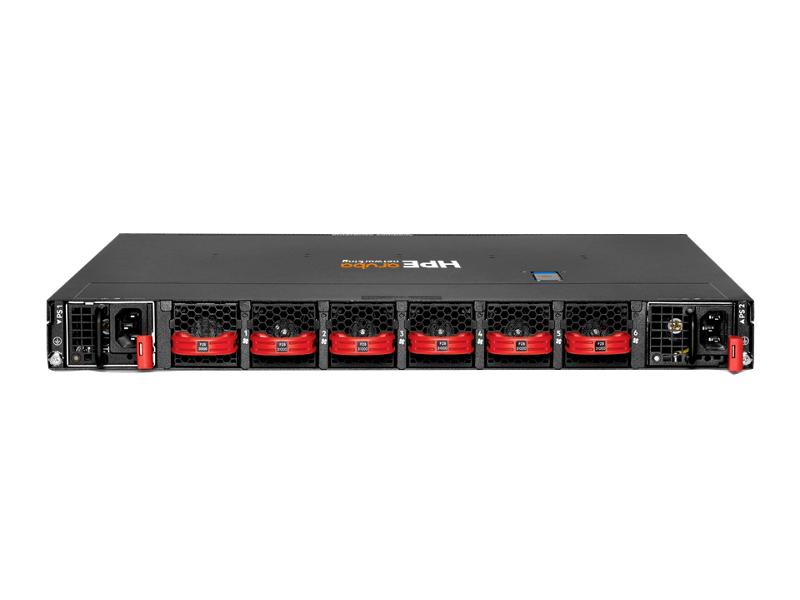

Redundant power and cooling with included FB power supplies
| Specification | Details |
|---|---|
| Model Number | R8Z96A |
| Product Series | HPE Aruba Networking CX 9300 |
| Form Factor | 1U Rack-mountable |
| Ports | 32 x 100/200/400G QSFP-DD, 2 x 10G SFP+ |
| Switching Capacity | 25.6 Tbps |
| Throughput | 5 Billion packets per second (Bpps) |
| Memory | 32 GB RAM, 128 GB SSD, Dual 16 GB SODIMM |
| Routing Support | OSPF, BGP-4, MP-BGP, RIP, EVPN-VXLAN, PBR, ECMP |
| Management Interfaces | RJ-45 Serial Console, Micro USB, OOBM Ethernet |
| Power Supplies | Includes 2 x FB Power Supplies (R8Z97A) |
| Input Voltage | 220–240V required for full port configuration |
| Power Consumption | Max: 600W–615W / Idle: 210W–221W |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Heat Dissipation | 4,435 BTU/hr (Max) |
| Dimensions (HxWxD) | 4.35 x 43.84 x 59 cm |
| Weight | 11.85 kg |
