Description

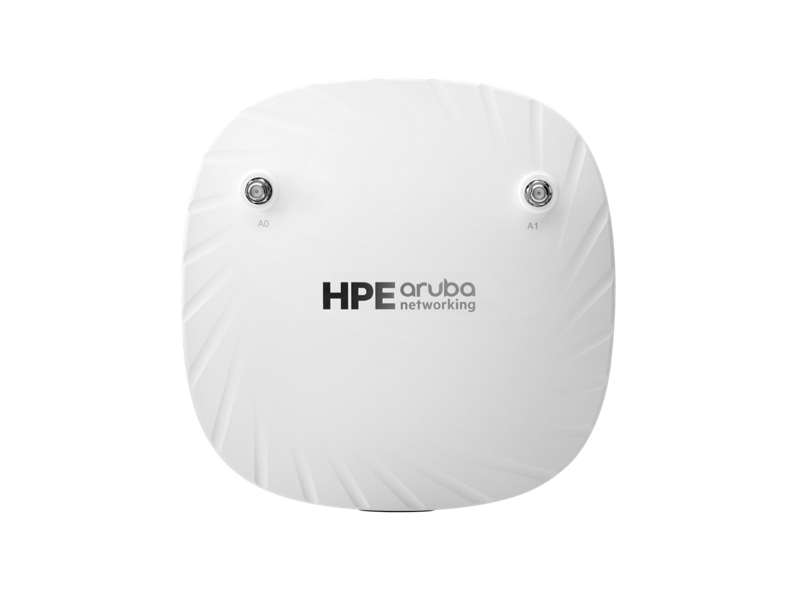

Enhance indoor wireless connectivity with the HPE Aruba Networking AP-504 (US), a cost-effective Wi-Fi 6 (802.11ax) access point designed for mid-sized offices, retail locations, and schools. Featuring dual radio 2x2 MIMO with external antenna support and maximum combined data rates up to 1.49 Gbps, this access point delivers reliable performance in medium-density environments.
The AP-504 is IoT-ready with built-in Bluetooth 5 and Zigbee, and includes ClientMatch™ technology to resolve sticky client issues. Managed via Aruba Central, it offers streamlined cloud-based control and policy enforcement through Dynamic Segmentation. Support for WPA3 and Enhanced Open ensures secure and scalable user and guest access.
Designed with flexibility and future-readiness in mind, it also includes a USB port for third-party IoT expansion, and comes with a limited lifetime warranty.
| Specification | Details |
|---|---|
| SKU / Part Number | R2H23A |
| Wi-Fi Standard | Wi-Fi 6 (IEEE 802.11ax) |
| Radios | Dual radio (2.4 GHz and 5 GHz), 2x2 MIMO |
| Max Data Rate | 1.49 Gbps (574 Mbps @ 2.4 GHz, 1.2 Gbps @ 5 GHz) |
| Antenna Type | 2x RP-SMA connectors (dual band external antennas, not included) |
| Client Technology | ClientMatch™, OFDMA, MU-MIMO, TWT |
| IoT Support | Built-in Bluetooth 5 and Zigbee, USB port for third-party expansion |
| Security | WPA3, Enhanced Open, TPM, PEF, Dynamic Segmentation |
| Cloud Management | Aruba Central (AI-powered management and monitoring) |
| Certifications | Wi-Fi CERTIFIED 6, UL2043, FCC, ISED, CE, RED, EMC, EN 60601 |

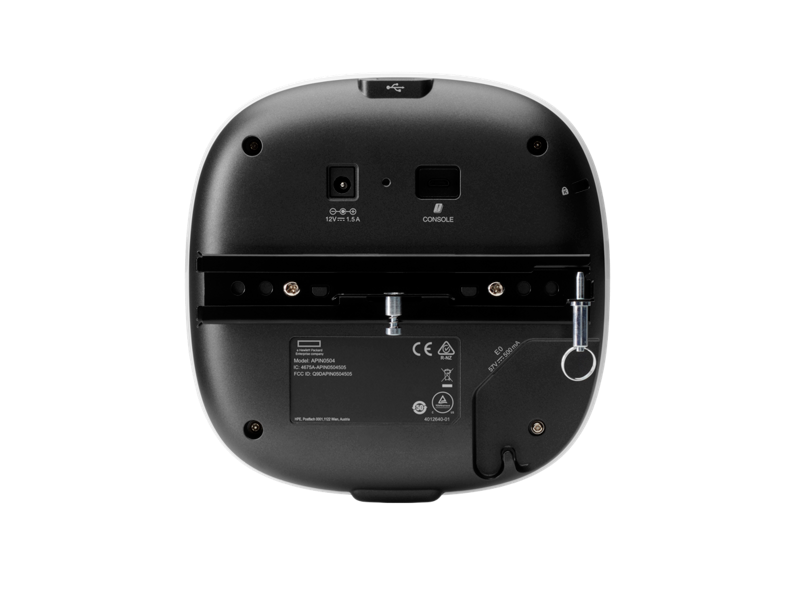

| Ports | 1x RJ-45 Ethernet (PoE), 1x USB 2.0 (Type-A), Console (Micro-B), Kensington slot |
| Power Consumption (Max) | 11.0W (PoE, 802.3af), up to 16.5W with USB device attached |
| Power (Idle / Deep-Sleep) | 4.3W / 1.7W (DC), 6.2W / 3.7W (PoE) |
| Mounting Options | Optional kits available |
| Dimensions | 37 x 160 x 161 mm |
| Weight | 500 g |
| Deployment | Indoor use, campus and enterprise environments |
| Warranty | Limited Lifetime |
