Description

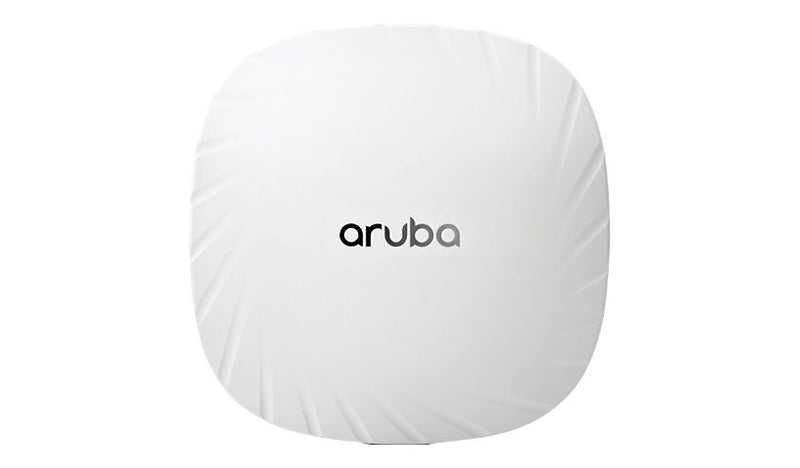

Enhance your campus or enterprise network with the HPE Aruba Networking AP-505 (US) Wireless Access Point, designed for high-performance Wi-Fi 6 (802.11ax) connectivity. Ideal for medium-density environments such as schools, businesses, and retail, the AP-505 offers dual-radio (2.4 GHz and 5 GHz) support, delivering a combined data rate of up to 1.49 Gbps.
Leverage advanced features like MU-MIMO, OFDMA, WPA3 security, and Aruba Air Slice™ for dynamic bandwidth optimization. Integrated Bluetooth 5.0 and Zigbee radios enable robust IoT connectivity, while Enhanced Open™ encryption and WPA2-MPSK ensure secure access. The AP-505 also supports seamless roaming with cellular-to-Wi-Fi crossover, making it ideal for guest environments.
This model is shipped with an indoor mounting bracket and includes a limited lifetime warranty from HPE Aruba. Power is supplied via PoE (802.3af/at), simplifying installation without additional cabling.
| Specification | Details |
|---|---|
| Model | HPE Aruba Networking AP-505 (US) – Campus |
| Wireless Standards | 802.11a/b/g/n/ac/ax (Wi-Fi 6), Bluetooth 5.0, Zigbee-ready |
| Radio Configuration | Dual-band 2x2 MIMO (2.4 GHz & 5 GHz) |
| Maximum Data Rates | 574 Mbps (2.4 GHz), 1.2 Gbps (5 GHz), 1.49 Gbps aggregate throughput |
| Antenna Type | Internal Omni-directional (2 antennas), 5.7 dBi gain |
| Connectivity Interfaces | 1x RJ-45 1000Base-T, 1x USB 2.0 (Type-A), 1x Console (Micro-USB) |
| PoE Support | IEEE 802.3af/at compliant (8.9W typical) |
| Security | WPA3, WPA2, Enhanced Open™, WPA2-MPSK, TPM, SSL, IPSec VPN |
| IoT Support | Bluetooth LE 5.0, Zigbee, Aruba location and asset tracking services |
| Mounting Options | In-ceiling mount, mounting bracket included |
| Features | MU-MIMO, OFDMA, Aruba ClientMatch, TWT, Air Slice™, ACC, DPI |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
| Humidity Tolerance | 5% to 93% RH (non-condensing) |
| MTBF | 148 years |
| Certifications | CE, FCC, UL 2043, Wi-Fi CERTIFIED 6, Directive 2014/53/EU, and more |
| Warranty | Limited Lifetime Warranty (HPE Aruba) |
| Color | White |
