Description

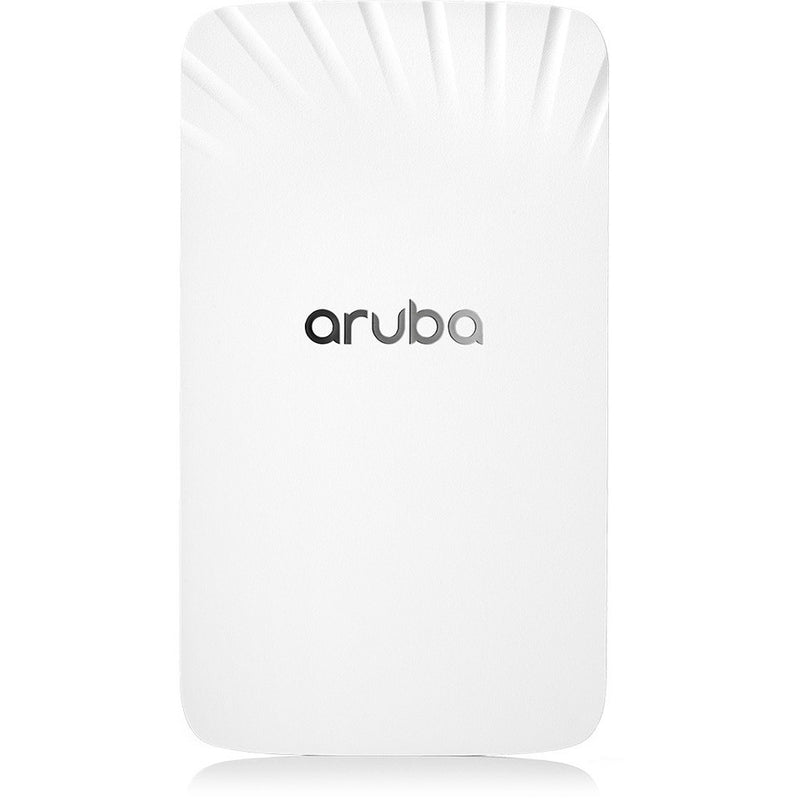

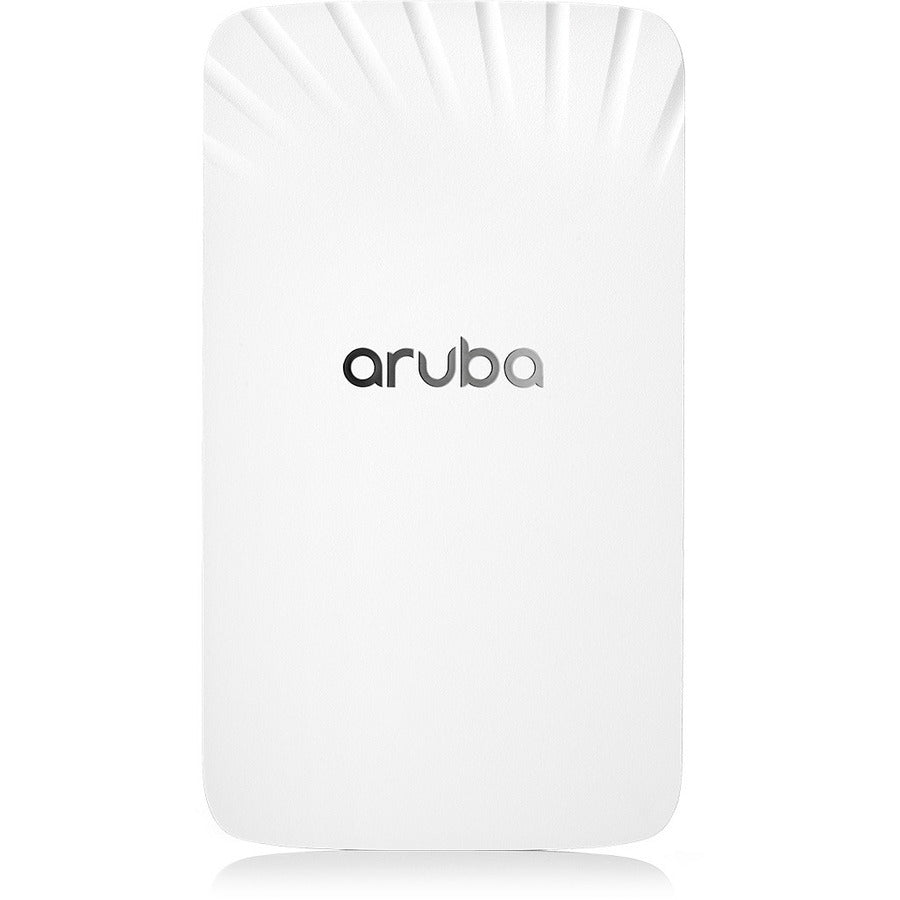

The HPE Aruba Networking AP-505H (US) from the 500H Series Unified Hospitality Access Points delivers cost-effective Wi-Fi 6 connectivity tailored for hotels, residence halls, and remote offices. This compact in-room access point supports a maximum combined data rate of 1.5 Gbps with dual-radio 2x2 MIMO performance, ensuring superior wireless coverage in dense client environments.
Designed for flexible deployment, it includes a 2.5 GbE uplink port, four 1 GbE downlink ports (two with PoE out), and a USB interface for IoT expansion. Enhanced with Zero Touch Provisioning, Dynamic Segmentation, and advanced security protocols including WPA3 and Enhanced Open, the AP-505H guarantees simple yet secure network access.
Built-in Bluetooth 5 and Zigbee® radios, support for HPE Aruba Networking Central, and optimized antenna design make this the perfect AP for modern hospitality and enterprise settings. Mountable on a wall or desk (optional stand), it also integrates ClientMatch technology for better roaming and efficiency.
| Specification | Details |
|---|---|
| Model Number | R3V48A |
| Product Name | HPE Aruba Networking AP-505H (US) Hospitality Access Point |
| Radio Type | Dual Radio 802.11ax (Wi-Fi 6), 2x2 MIMO |
| Frequency Bands | 2.4 GHz and 5 GHz |
| Maximum Data Rate | Up to 1.5 Gbps (287 Mbps on 2.4 GHz + 1.2 Gbps on 5 GHz) |
| Ethernet Ports | (1) 2.5GbE Smart Rate uplink, (4) 1GbE downlink (2 w/ PoE out) |
| USB Ports | (1) USB 2.0 Type-A for IoT expansion |
| Antenna Type | Integrated semi-directional (2x2 MIMO) |
| Peak Antenna Gain | 5.2 dBi (2.4 GHz), 5.4 dBi (5 GHz) |
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6 Certified) |
| Security Features | WPA3, Enhanced Open, Dynamic Segmentation, TPM |
| IoT Support | Bluetooth 5, Zigbee, USB port |
| Management | Aruba Central, Zero Touch Provisioning |
| Power Consumption | Max 50W |
| Mounting Options | In-ceiling, Wall-mount, Optional Desktop Stand |
| Certifications | Wi-Fi CERTIFIED 6, FCC, CE, RED, UL/IEC/EN 62368-1, EN60601-1-1 |
| Product Dimensions (in) | 5.9 x 3.4 x 1.9 |
| Weight | 0.8 lb |
