Description
The HPE Aruba Networking AP-514 (EG) is a high-performance, Wi-Fi 6 (802.11ax) dual-radio access point designed for medium-density campus environments. Featuring external antenna connectors and a 4x4 MIMO configuration for 5GHz and 2x2 MIMO for 2.4GHz, this unit supports a maximum combined data rate of 2.69 Gbps.
With advanced features like OFDMA, MU-MIMO, and Target Wake Time (TWT), the AP-514 delivers improved efficiency and reduced latency across multiple devices. Ideal for deployment in office buildings, schools, hotels, and hospitals, this model includes built-in IoT radios (Bluetooth 5, Zigbee), 2.5GbE Smart Rate and 1GbE ports, and security enhancements such as WPA3, Enhanced Open, and integrated TPM.
Manage effortlessly via HPE Aruba Networking Central with AI-powered insights for simplified IT operations. This TAA-compliant model is offered with a limited lifetime warranty and can be deployed using Zero Touch Provisioning (ZTP).
| Specification | Details |
|---|---|
| Product Number | Q9H64A |
| AP Type | Indoor, Dual Radio: 5GHz (4x4 MIMO) and 2.4GHz (2x2 MIMO) |
| Wi-Fi Standard | Wi-Fi 6 (802.11ax), backward compatible with a/b/g/n/ac |
| Max Data Rate | Up to 2.69 Gbps |

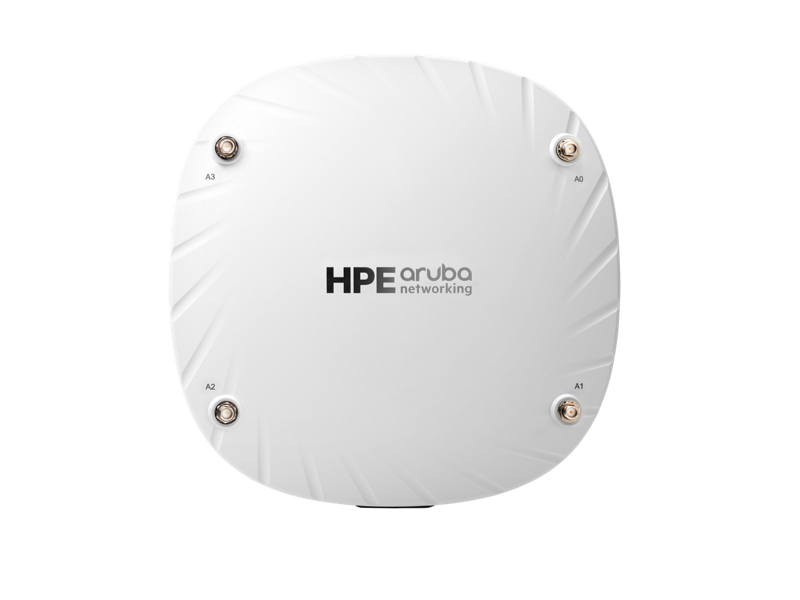

| Antenna Type | 4x RP-SMA connectors for external dual-band antennas |
| Ports | 1x 2.5Gbps Smart Rate (RJ-45), 1x 1Gbps Ethernet, 1x USB 2.0, 1x Console |
| IoT Support | Integrated Bluetooth 5, Zigbee (802.15.4) |
| Security | WPA3, Enhanced Open (OWE), TPM for key protection, Dynamic Segmentation |

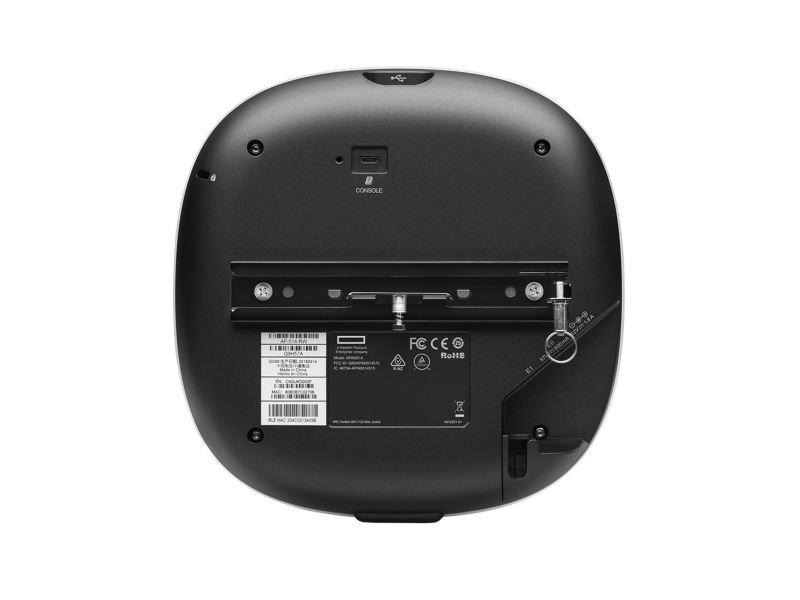

| Mounting | Pre-installed mounting bracket (mounting kit optional) |
| Power Consumption | Max: 20.8W (PoE); Idle: 12.6W; Deep Sleep: 5.9W |
| Dimensions (HxWxD) | 46 x 200 x 200 mm |
| Weight | 810 g |
| TAA Compliant | Yes (Available in Egypt only) |
| Certifications | Wi-Fi Alliance (Wi-Fi 6), UL2043 Plenum, FCC, CE, EN, WPA3, WPA2, WPA |
| Warranty | Limited Lifetime Warranty |
