Description

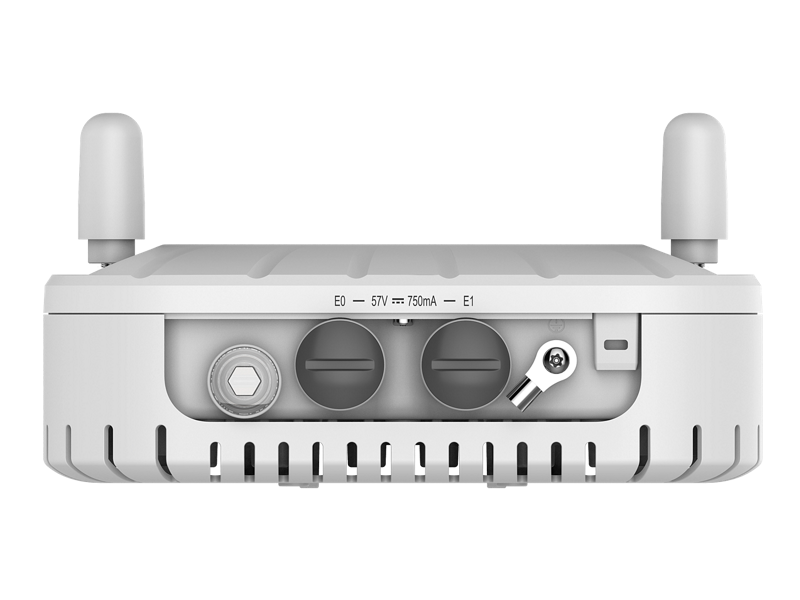

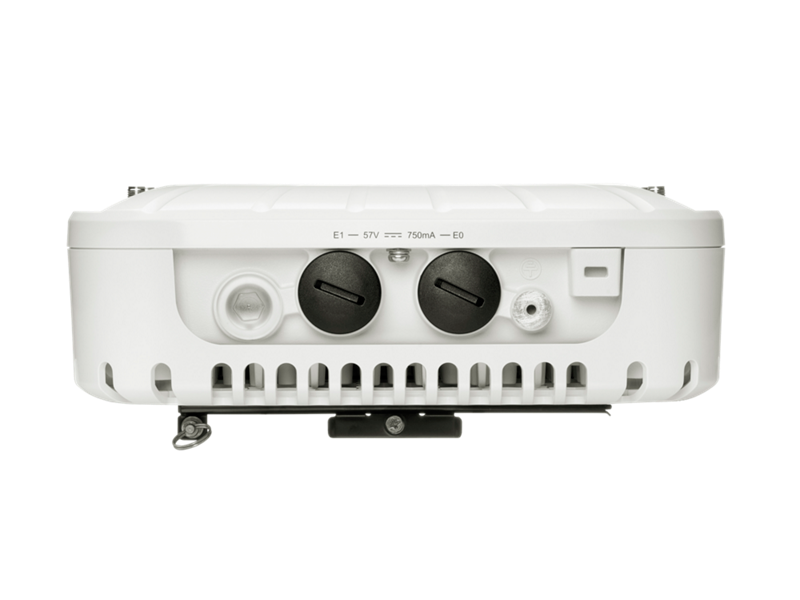

The HPE Aruba Networking AP‑518 (EGF1) is a high-performance, dual-radio Wi‑Fi 6 (802.11ax) access point purpose-built for harsh indoor and semi-outdoor environments such as warehouses, industrial freezers, and stadium enclosures. Equipped with 4x4 MIMO at 5 GHz and 2x2 MIMO at 2.4 GHz, it supports a maximum aggregate data rate of up to 3 Gbps.
With six RP-SMA connectors for external antennas, IP55 environmental sealing, and advanced features like Bluetooth 5, Zigbee, WPA3 security, and integrated surge protection, this TAA-compliant AP is ideal for high-density, high-security enterprise and industrial deployments.
This model (R4H04A) is specifically designated for the Egypt regulatory domain and is compliant with government-level security standards.
| Category | Details |
|---|---|
| Model | R4H04A (EGF1) |
| AP Type | Indoor Hardened Dual-Radio Wi‑Fi 6 |
| Radios | 5 GHz: 4x4 MU-MIMO, 2.4 GHz: 2x2 MU-MIMO |
| Maximum Data Rates | Up to 3 Gbps aggregate |

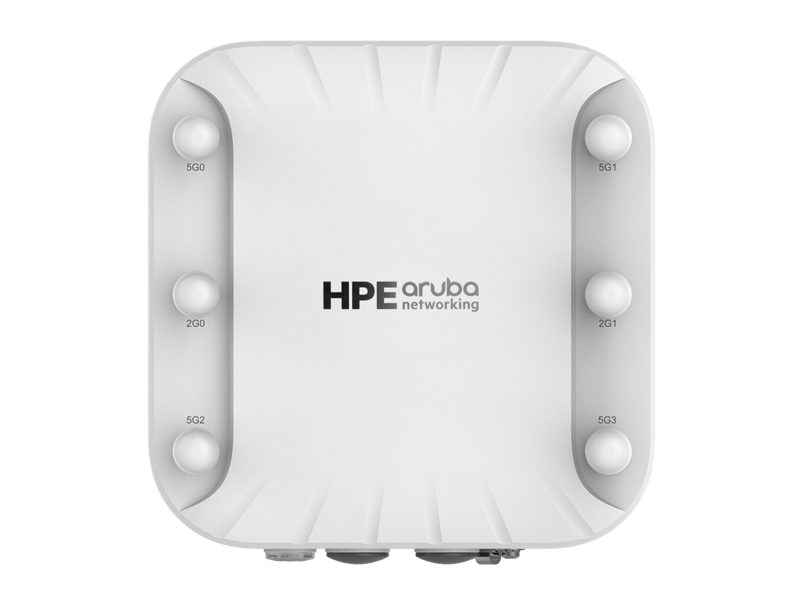

| Antenna Connectors | 4x RP-SMA (5 GHz), 2x RP-SMA (2.4 GHz) |
| Interfaces | 1x SmartRate RJ-45 (2.5G), 1x RJ-45 (1G), USB-C console |
| PoE | 802.3at/bt (PoE+), 25.6W max consumption |
| Environmental Rating | IP55 |
| Temperature Range | -40°C to +55°C operating, -40°C to +70°C storage |
| Humidity | 5% to 95% non-condensing |

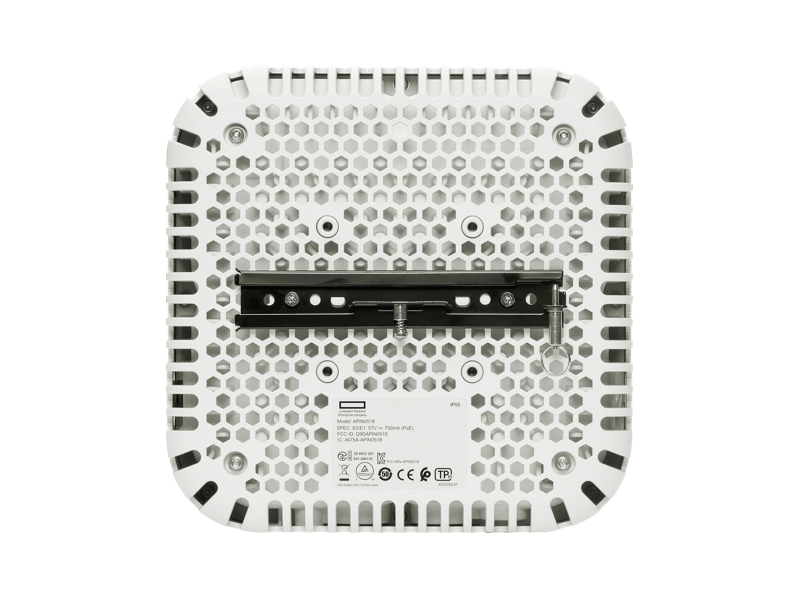

| Mounting Options | Compatible with AP-270 series mounts (via adapter), AP-MNT kits |
| IoT Support | Integrated Bluetooth 5 and Zigbee (802.15.4) |
| Security | WPA3, Enhanced Open, TPM, VPN tunnels, PEF |
| Client Capacity | Up to 512 clients per radio |
| Certifications | CB Scheme, cTUVus, Wi-Fi CERTIFIED™ 6, CE, FCC, UL2043, etc. |
| Regulatory Compliance | TAA compliant; Egypt regulatory domain |
| Weight | 1.5 kg (3.3 lbs) |
| Dimensions (mm) | 75 (H) x 220 (W) x 220 (D) |
| Warranty | Limited lifetime warranty |
| Minimum OS | ArubaOS / InstantOS 8.7.0.0 or newer |
