Description

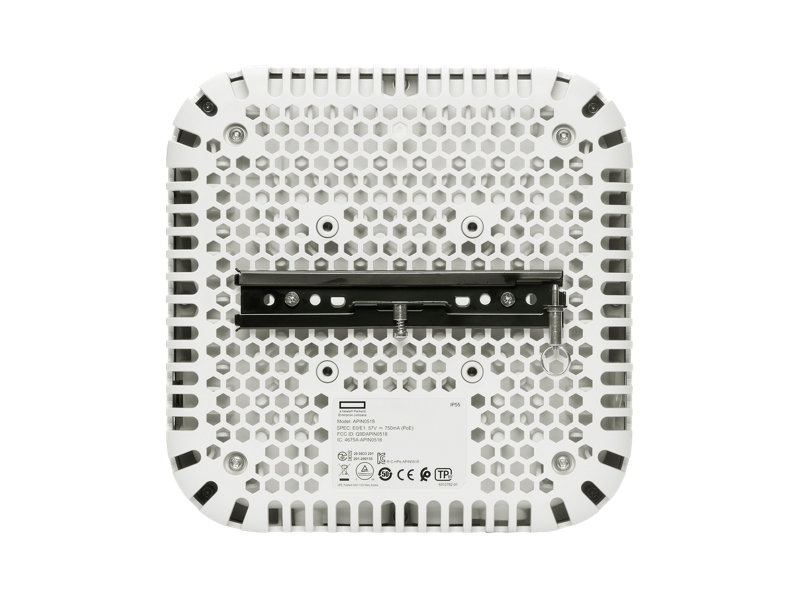

The HPE Aruba Networking AP-518 (JPF1) is a high-performance, ruggedized Wi-Fi 6 access point designed for deployment in extreme environments such as industrial enclosures, warehouses, and stadiums. With dual-radio 4x4 MIMO (5 GHz) and 2x2 MIMO (2.4 GHz), it supports up to 3 Gbps throughput and serves dense mobile and IoT client environments.
Engineered with six RP-SMA connectors for external antennas and hardened for environmental durability (IP55), the AP-518 supports advanced features like OFDMA, MU-MIMO, Aruba ClientMatch, Bluetooth 5, and Zigbee integration. The AP also includes surge protection on all interfaces, ensuring reliable performance even under harsh conditions. Suitable for TAA-compliant environments.
| Specification | Details |
|---|---|
| SKU | R4H06A |
| Model | AP‑518 (JPF1) |
| Wi-Fi Standard | Wi-Fi 6 (802.11ax), backward compatible with 802.11a/b/g/n/ac |
| Radios | Dual Radio: 5 GHz (4x4) + 2.4 GHz (2x2) MIMO |
| Max Aggregate Throughput | Up to 3.0 Gbps |

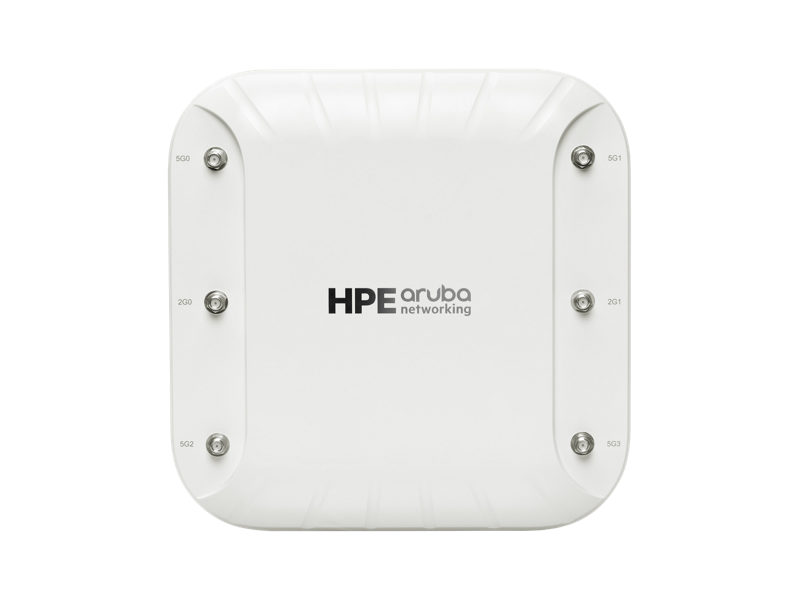

| Antennas | 4x RP‑SMA (5GHz), 2x RP‑SMA (2.4GHz) external connectors |
| Bluetooth/Zigbee | Integrated Bluetooth 5 and 802.15.4 (Zigbee) |

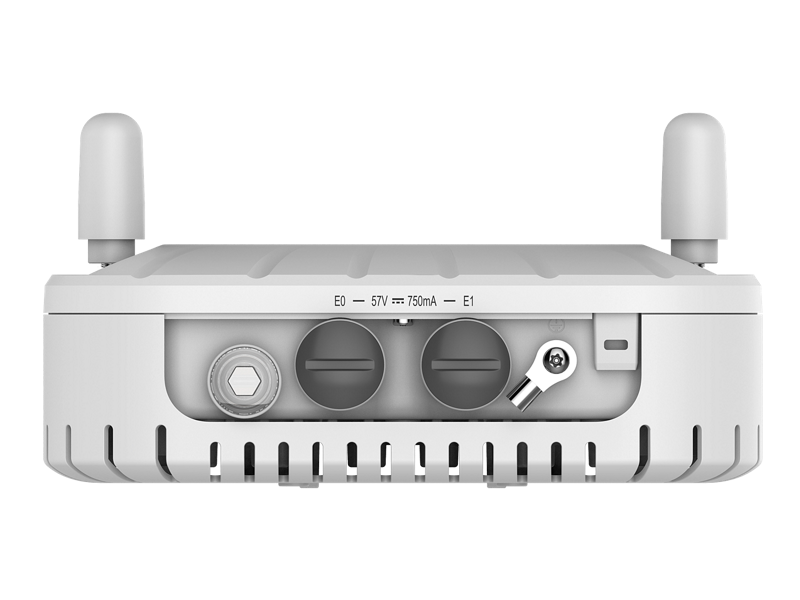

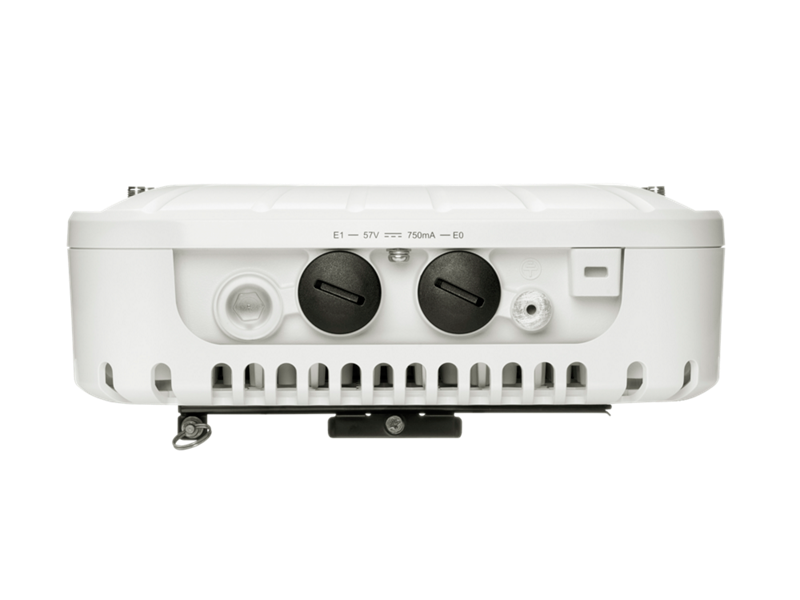

| Ports | 1x HPE SmartRate (E0) 2.5GbE, 1x 1GbE (E1), USB-C console |
| PoE Power | 802.3at PoE+ (Class 4), Max 25.6W |
| Mounting Options | Supports AP-220/270-MNT with adapter, wall/pole mount options available |
| Operating Temperature | -40°C to +55°C (-40°F to +131°F) |
| Ingress Protection | IP55 rated for water/dust resistance |
| Client Capacity | Up to 512 clients per radio (1,024 total) |
| Management Options | Aruba Central (cloud), AirWave, InstantOS |
| Security Features | WPA3, Enhanced Open, TPM, Dynamic Segmentation |
| Certifications | CB, cTUVus, UL2043, CE, FCC/ISED, RED Directive |
| Compliance | TAA Compliant |
| Dimensions | 220 x 220 x 75 mm (8.5 x 8.5 x 2.5 in) |
| Weight | 1.5 kg (3.3 lbs) |
| Warranty | Limited lifetime warranty |
