Description

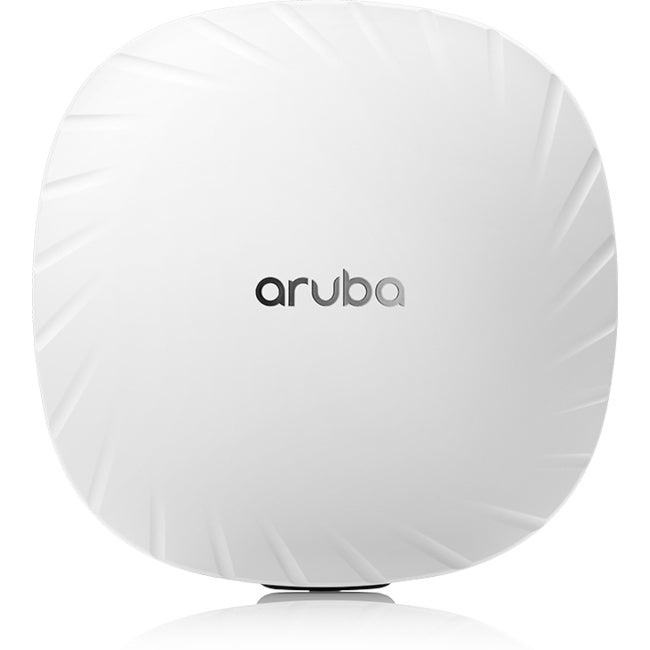

The HPE Aruba AP-535 (JZ333A) is a high-performance dual-radio Wi-Fi 6 access point, designed for enterprise environments with demanding IoT and mobile workloads. Delivering real-world speeds up to 2.97 Gbps, it features dual-band connectivity, MIMO and OFDMA technologies for optimized user experience and reduced airtime contention. With Bluetooth 5, support for WPA3 security, and internal antennas, it’s perfect for indoor ceiling-mount deployment. The AP-535 also supports Power over Ethernet (PoE) and integrates seamlessly with Aruba Central and other HPE networking tools for simplified management.
| Specification | Details |
|---|---|
| Product Name | Aruba AP-535 Wireless Access Point |
| Part Number | JZ333A |
| Wireless LAN Standard | 802.11ax (Wi-Fi 6) |
| Network Band | Dual Band (2.4 GHz / 5 GHz) |
| Max Wireless Speed | 2.40 Gbit/s (aggregate up to 2.97 Gbps) |
| Antenna Configuration | 4 x Internal Antennas |
| MIMO Technology | Yes (up to 4 spatial streams) |
| Beamforming | Yes |
| OFDMA Support | Yes |
| Bluetooth Version | Bluetooth 5 |
| Security Standards | WPA, WPA2, WPA3, WPA3-ENT, WPA2-MPSK, WPA3-SAE |
| PoE Support | Yes (PoE PD Port) |
| USB Port | Yes |
| Mounting Type | Ceiling Mountable |
| Form Factor | Indoor |
| Dimensions (HxWxD) | 2.2" x 9.4" x 9.4" |
| Weight | Approx. 2.80 lbs |
| Shipping Weight | 2 lbs (as listed) |
| Condition | New and Factory Fresh |
