Description
Cost-Effective Outdoor Wi-Fi 6 with Integrated IoT Support

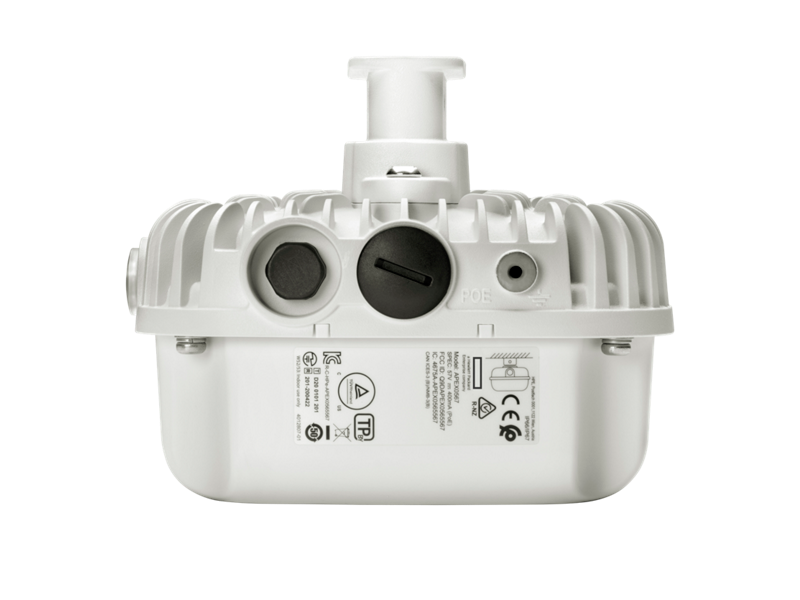

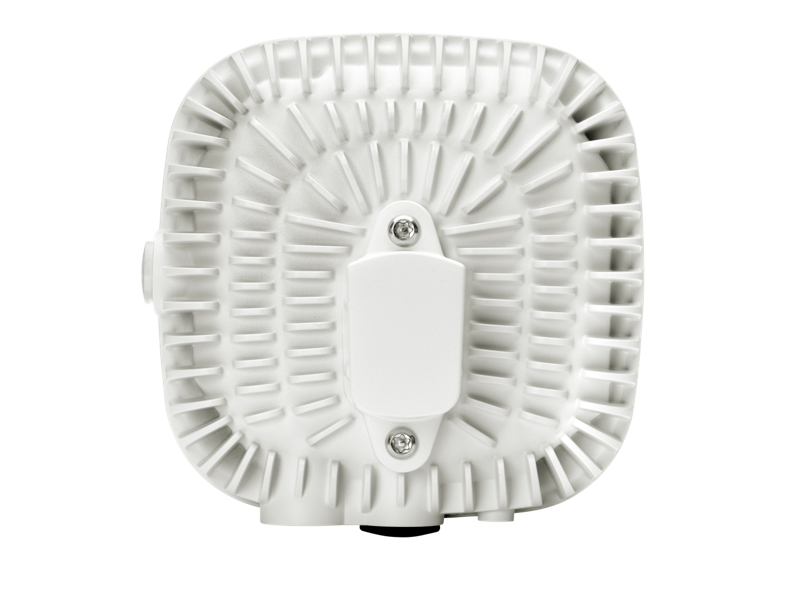

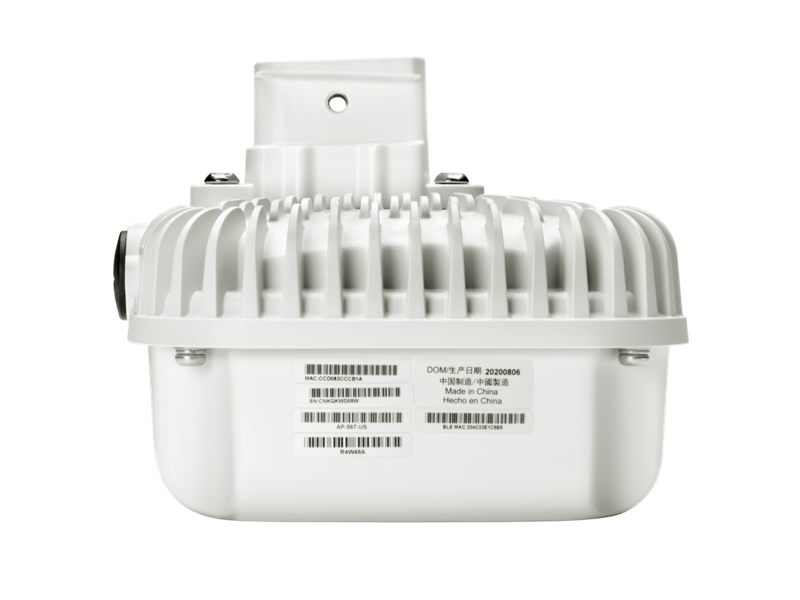

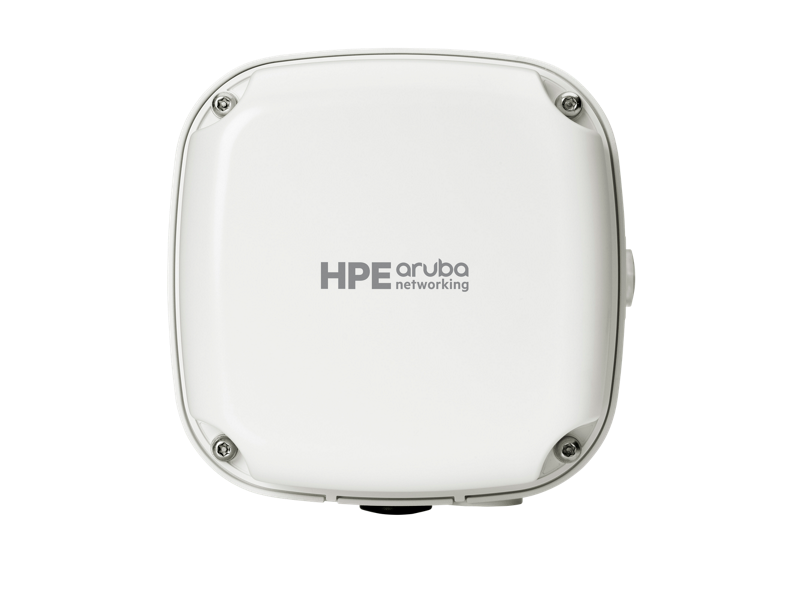

The HPE Aruba Networking AP-565 (JP) is an entry-level, dual-radio outdoor access point engineered for demanding environments. Delivering up to 1.49 Gbps of aggregate throughput, this Wi-Fi 6 (802.11ax) access point integrates omni-directional antennas and supports Bluetooth 5 and 802.15.4/Zigbee for IoT connectivity. Its hardened enclosure withstands temperatures from -40°C to +65°C, persistent moisture, dust, salt spray, and wind speeds of up to 165 mph—ideal for outdoor campuses, warehouses, and industrial areas in Japan.
The AP-565 includes support for Dynamic Segmentation, ClientMatch, and WPA3 security, with a Trusted Platform Module (TPM) for enhanced data protection. Integrated with HPE Aruba Networking Central, it allows zero-touch provisioning and centralized management for simplified deployment and control.
| Specification | Details |
|---|---|
| Product Number | R4W52A |
| AP Type | Outdoor Hardened Dual-Radio Wi-Fi 6 |
| Radios | 2x2 MIMO for 2.4 GHz and 5 GHz (Dual-band) |
| Max Aggregate Data Rate | Up to 1.49 Gbps (HE80/HE20) |
| Integrated Antennas | Omni-directional |
| 2.4 GHz Antenna Gain | 3.2 dBi |
| 5 GHz Antenna Gain | 5.4 dBi |
| IoT Radios | Bluetooth 5, 802.15.4 (Zigbee) |
| IoT Antenna Gain | 3.3 dBi |
| Connectivity | 1x 10/100/1000BASE-T (RJ-45) Ethernet Port |
| Mounting Options | Requires optional mounting kit |
| Power Consumption | Max: 15.6W; Idle: 4.2W; Deep-sleep: 1.7W |
| Power Source | Sold separately |
| Temperature Range | -40°C to +65°C with full solar loading |
| Environmental Resistance | Moisture, precipitation, dust, salt spray, up to 165 mph wind |
| Certifications | TAA, CB Scheme, cTUVus, UL2043, Wi-Fi 6 Certified, Wi-Fi CERTIFIED ac, Location™ |
| Regulatory Compliance | FCC, ISED, CE, RED, EMC, LVD, Railway Standards (EN 50155, EN 50121, IEC 61373) |
| Security | WPA3, Enhanced Open, TPM, Policy Enforcement Firewall (PEF) |
| Dimensions (H x W x D) | 11 x 16.5 x 16.5 cm |
| Weight | 1.03 kg |
| Warranty | Limited Lifetime Warranty |
