Description

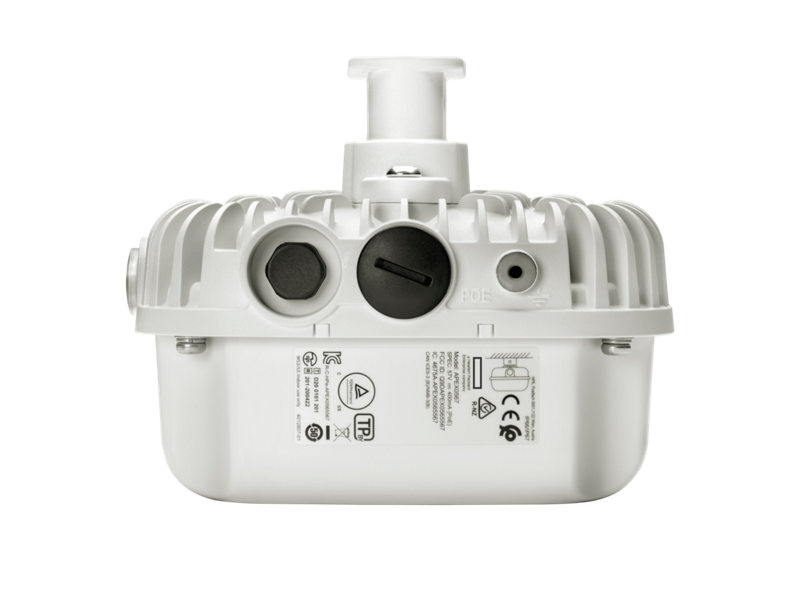

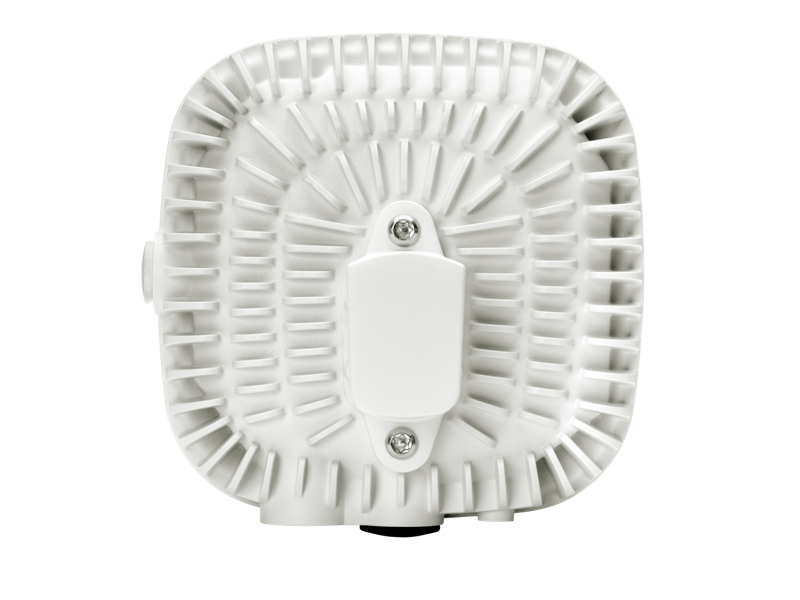

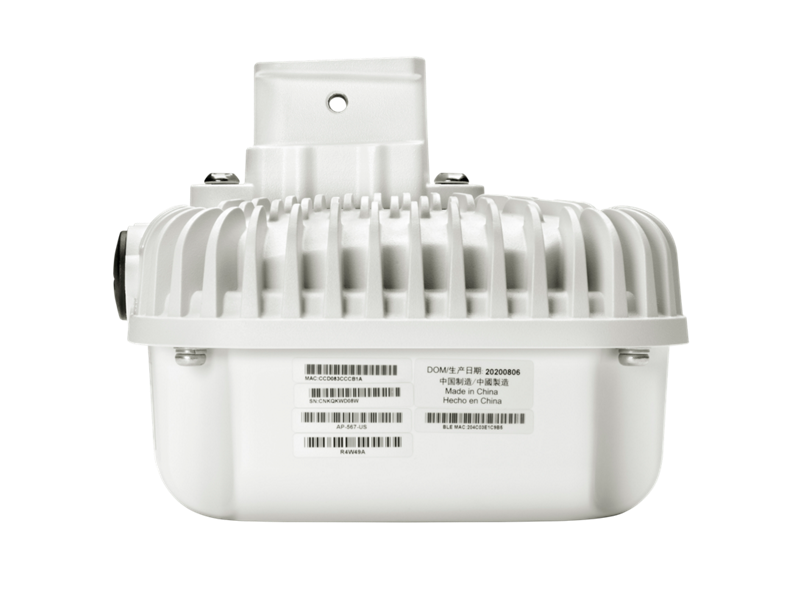

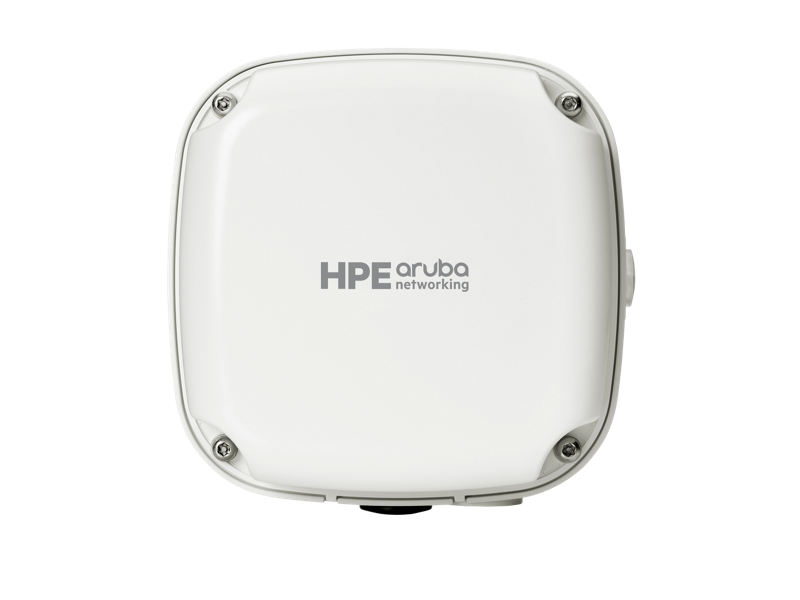

The HPE Aruba Networking AP‑565 (EG) is an entry-level, ruggedized Wi‑Fi 6 outdoor access point built to withstand the harshest conditions while delivering reliable and high-performance wireless connectivity. Designed for industrial settings, warehouses, and outdoor campuses, this dual-radio 2x2:2 access point features integrated omni-directional antennas and supports aggregate data rates up to 1.49 Gbps.
With Bluetooth 5 and 802.15.4/Zigbee radios, the AP-565 is IoT-ready, enabling efficient device connectivity without additional overlay networks. It’s equipped with Dynamic Segmentation, WPA3, ClientMatch, and enhanced policy enforcement firewalls to secure all user and IoT traffic. Built for endurance, it operates in extreme temperatures (-40°C to +65°C), resists wind speeds up to 165 mph, and is fully sealed against moisture and contaminants.
| Specification | Details |
|---|---|
| Model Number | R4W50A |
| Wi-Fi Standard | Wi‑Fi 6 (802.11ax) |
| Radios | Dual 2x2 MIMO (5 GHz and 2.4 GHz) |
| Maximum Data Rate | 1.49 Gbps (HE80/HE20) |
| Antenna Type | Built-in Omni-directional |
| Antenna Gain | 5 GHz: 5.4 dBi / 2.4 GHz: 3.2 dBi |
| IoT Support | Integrated Bluetooth 5 and 802.15.4 (Zigbee) |
| BLE/Zigbee Antenna Gain | 3.3 dBi |
| Security | WPA3, Enhanced Open, TPM, Dynamic Segmentation, PEF |
| Mounting Options | Requires optional mounting kit |
| Ethernet Ports | 1 x 10/100/1000BASE-T (RJ-45) |
| Power Consumption | Max: 15.6W / Idle: 4.2W / Deep Sleep: 1.7W (Power source sold separately) |
| Operating Temperature | -40°C to +65°C |
| Environmental Protection | Wind (up to 165 mph), moisture, dust, airborne contaminants, salt spray |
| Certifications | Wi‑Fi 6 Certified, TAA, CB Scheme, UL2043, Railway Standards, CE, FCC |
| Product Dimensions | 11 x 16.5 x 16.5 cm |
| Weight | 1.03 kg |
| Warranty | Limited Lifetime Warranty |
